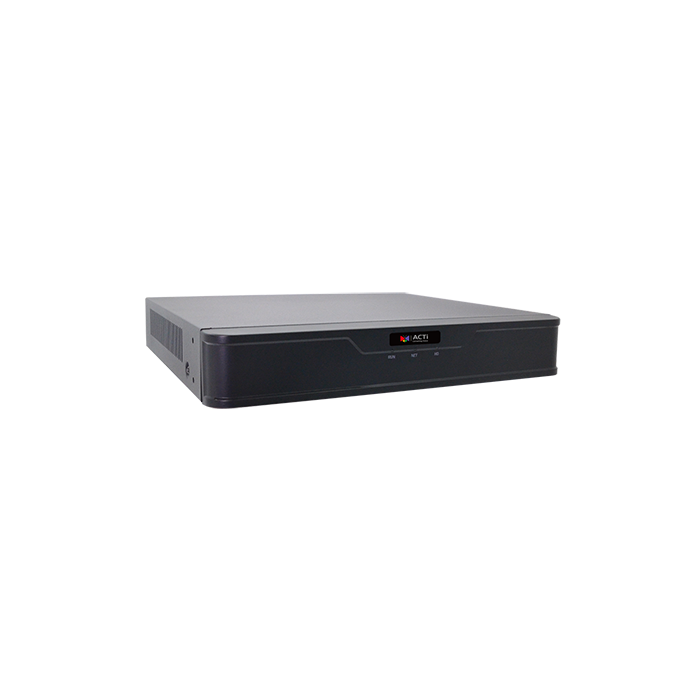

ACTi ZNR-126 8-Channel Mini Standalone NVR 8MP
Overview
ACTi ZNR-126 8-Channel Mini Standalone NVR 8MP
ACTi ZNR-126 8-Channel Mini Standalone NVR 8MP
8-Channel 1-Bay Mini Standalone NVR with Recording Throughput 64 Mbps, Instant Playback, HDMI and VGA Port, Remote Access, Video Export via USB, 8-Channel Synchronized Playback, Plug & Play with Built-in DHCP Server, 1-Bay (Storage Disks not included), Audio, DC 12V
1-bay Mini Standalone NVR
Maximum Number of Video Devices: 8
Web Client
Event trigger, response and notification
Video export formats: MP4
Device
Product Type
Standalone NVR
Maximum Resolution
8MP
Maximum Number of Video Devices
8
Maximum Number of Clients
Local: 1, Remote: 2
Supported Screen Resolution
HDMI: 3840x2160 (30Hz), 1920x1080 (60Hz/50Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz)
License
License required
No
Free License
8
Live View
Local Live View performance
1ch (up to 30 fps at 4K 3840 x 2160)
Digital Zoom
Yes
Event Status
Display event status upon alarm or upon connection loss or recovery between server and client
PTZ
PTZ Control
PTZ Control, Speed Control
Video
Audio
Audio Type
1-way, Line-out
Network
Network Protocol & Service
IPv4/v6, TCP, UDP, DHCP Client, HTTP, HTTPS, DNS, DDNS, NTP, RTSP, SMTP, FTP, ICMP, ARP, UPnP, SNMP
Ethernet Port
1 x Ethernet (10/100 Base-T), RJ-45 connector
Maximum Outgoing Throughput
48 Mbps
Recording
Scheduled Recording
Yes
Event Recording
Yes
Manual Recording
Yes
Maximum Recording Throughput
64 Mbps
Search & Playback
Playback Control
Continuous forward and backward playback with speeds 1x/2x/4x/8x/16x, pause, stop, frame-by-frame
Synchronized Playback
8 channels
Video Export
MP4
Snapshot Export
JPEG
Event
Event Trigger
[NVR]: Low disk space, Disk full, Disk not found, Failed to write storage, IP address conflict, Network loss.
Event Response
Play alert sound, E-mail notification with snapshots
System
Permission control
128 Remote users, Customizable permissions for user groups
Client PC Operating System
Windows 7, Windows 8, Windows 10
Server Operating System
Embedded Linux
USB
2-Port USB 2.0
Language
English, Traditional Chinese, Japanese, Spanish
Integration
ONVIF Compliant
Yes, Profile S, Profile G, Profile T
Web Browser
IE 10 or newer, Google Chrome, Microsoft Edge, Firefox
Storage
Storage Bay
SATA, Max. 1 Disk(s) (without storage disks)
HDD Size
3.5"
Maximum Recording Capacity
22TB x1
RAID Level
No
Interface
Audio Interface
3.5mm Phone Jack
Local Access
USB Mouse
Local Display Interface
HDMI x 1, VGA x 1
General
Power Source
DC 12V
Power Consumption
5 W (DC, without HDD)
Weight
1290g (2.84lb)
Dimensions
(W x H x D): 260mm x 46mm x 240mm (10.24" x 1.81" x 9.45")
Bundled Accessories
Power Adapter, USB Mouse
Fan
No
Operating Temperature
-10°C ~ 50°C (14°F ~ 122°F)
Operating Humidity
10% - 90% RH
Remote Access
Web Client
Approvals
CE Class A, FCC Class A, BSMI, UL Listed(*)
Color
Black
Material
Iron
Warranty
2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Comments
* UL certification will be available in Q1 2024.
Dimension Diagram
Unit: mm [inch]
More Information
Manufacturer
ACTi
