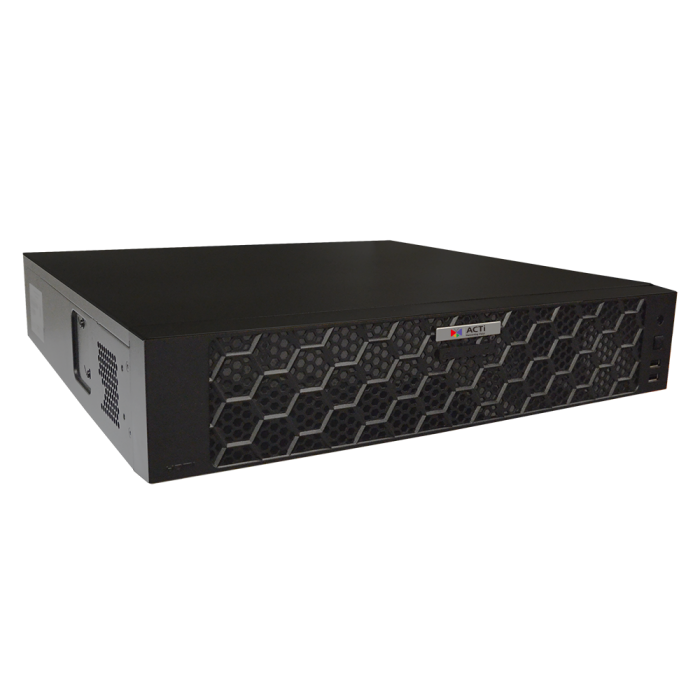

ACTi ZNR-424 64-Channel Rackmount Standalone NVR 12MP
SKU
ZNR-424
In stock
£1,870.80
£1,559.00
Overview
ACTi ZNR-424 64-Channel Rackmount Standalone NVR 12MP
ACTi ZNR-424 64-Channel Rackmount Standalone NVR 12MP
64-Channel 8-Bay Rackmount Standalone NVR with Recording Throughput 320 Mbps, Instant Playback, HDMI and VGA Port, Remote Access, 16-Channel Synchronized Playback, Plug & Play with Built-in DHCP Server, 8-Bay (Storage Disks not included), Audio, DI/DO, AC 100-240V
- 8-bay 2U Rackmount Standalone NVR
- Maximum Number of Video Devices: 64
- Web Client
- Event trigger, response and notification
- Video export formats: MP4
Device
| Product Type | Standalone NVR |
| Maximum Resolution | 12MP |
| Maximum Number of Video Devices | 64 |
| Maximum Number of Clients | Local: 1, Remote: 128 |
| Supported Screen Resolution | HDMI: 3840x2160 (30Hz), 1920x1080 (60Hz/50Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz) VGA: 1920x1080 (60Hz/50Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz) |
License
| License required | No |
| Free License | 64 |
Live View
| Display Layout Mode | 1, 4, 6, 8, 9, 16, 25, 36, 64 |
| Local Live View performance | [H.265] 2ch (up to 30 fps at 12MP) 4ch (up to 30 fps at 4K 3840 x 2160) 6ch (up to 30 fps at 5MP) 8ch (up to 30 fps at 4MP) 10ch (up to 30 fps at 3MP) 16ch (up to 30 fps at 2MP 1920 x 1080) 32ch (up to 25 fps at 960p) 36ch (up to 30 fps at 720P) 64ch (at D1) [H.264] 2ch (up to 30 fps at 12MP) 2ch (up to 30 fps at 4K 3840 x 2160) 4ch (up to 30 fps at 5MP) 6ch (up to 30 fps at 4MP) 8ch (up to 30 fps at 3MP) 14ch (up to 30 fps at 2MP 1920 x 1080) 28ch (up to 25 fps at 960p) 30ch (up to 30 fps at 720P) 64ch (at D1) |
PTZ
| PTZ Control | PTZ Control, Speed Control |
Video
| Compression | H.265, H.264 |
| Built-in Analytics | PTZ Auto Tracking*, Intrusion Detection (Forbidden Area Detection)*, Object Line Crossing Detection*, Unattended Object Detection*, Missing Object Detection* |
Audio
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | G.711 A-law, G.711 u-law |
Network
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP Client, HTTP, HTTPS, DNS, DDNS, NTP, RTSP, SMTP, FTP, ICMP, ARP, UPnP, SNMP |
| Ethernet Port | 2 x Ethernet (10/100/1000 Base-T), RJ-45 connector |
| Maximum Outgoing Throughput | 160 Mbps |
Recording
| Scheduled Recording | Yes |
| Event Recording | Yes |
| Manual Recording | Yes |
| Maximum Recording Throughput | 320 Mbps |
Search & Playback
| Playback Control | Continuous forward and backward playback with speeds 1/8x, 1/4x, 1/2x, 1x, 2x, 4x, 8x, 16x, 32x, 64x, 128x, 256x, pause, stop |
| Synchronized Playback | 16 channels |
| Video Export | MP4 |
| Snapshot Export | JPEG |
Event
| Event Trigger | [NVR]: Low disk space, Disk full, Disk not found, Failed to write storage, IP address conflict, Network loss. [Video Device]: Video motion detection, Tampering detection, External device through digital input, Sound detection |
| Event Response | E-mail notification with snapshots, Upload snapshot to FTP server |
System
| Permission control | 128 Remote users, Customizable permissions for user groups |
| Client PC Operating System | Windows 7, Windows 8, Windows 10 |
| Server Operating System | Embedded Linux |
| USB | 2-Port USB 2.0, 1-Port USB 3.0 |
| Language | English, Traditional Chinese, Japanese, Spanish |
Integration
| Edge Recording | Automatically restore the lost videos from the memory card of Z-series camera to ZNR server via proprietary protocol integrations after network connection recovery. |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 10 or newer, Google Chrome, Microsoft Edge, Firefox |
Storage
| Storage Bay | SATA, Max. 8 Disk(s) (without storage disks) |
| HDD Size | 3.5" |
| Maximum Recording Capacity | 22TB x8 |
| RAID Level | No |
Interface
| Serial Port | 1 x RS-485 |
| Audio Interface | RCA Jack |
| Digital Input/Output | 16/4 |
| Local Access | USB Mouse |
| Local Display Interface | HDMI x 1, VGA x 1 |
General
| Power Source | AC 100-240V |
| Power Consumption | 32 W (AC, without HDD) |
| Weight | 4000g (8.80lb) |
| Dimensions | (W x H x D): 442mm x 89mm x 426mm (17.4" x 3.5" x 16.8") Rack Space: 2U |
| Bundled Accessories | Rack Bracket |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Operating Humidity | 10% - 90% RH |
| Remote Access | Web Client |
| Approvals | CE Class B, FCC Class B, BSMI, UL Listed(*) |
| Color | Black |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
| Comments | * The supported analytics functions depend on the compatible Z-series cameras. * UL certification will be available in Q1 2024. * UL certification will be available in Q1 2024. |
Dimension Diagram
Unit: mm [inch]
| Manufacturer | ACTi |
|---|
