Hexacopter X700 aircraft, aluminiun case, 7 channel WFT07 remote control, 4S 10000mAh Lipo battery, battery alarm, Imax B6 charger, 2-axis G3 brushless gimble, GoPro 3 & black edition camera
SKU
BAT-X700C
In stock
£1,590.00
£1,325.00
Overview
Hexacopter X700 aircraft, aluminiun case, 7 channel WFT07 remote control, 4S 10000mAh Lipo battery, battery alarm, Imax B6 charger, 2-axis G3 brushless gimble, GoPro 3 & black edition camera from 3G Mobile CCTV
Hexacopter X700 aircraft, aluminiun case, 7 channel WFT07 remote control, 4S 10000mAh Lipo battery, battery alarm, Imax B6 charger, 2-axis G3 brushless gimble, GoPro 3 & black edition camera

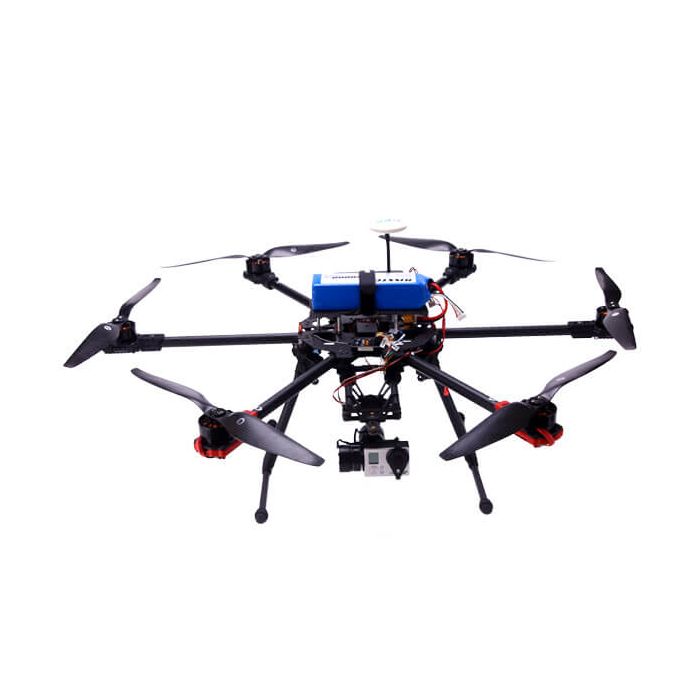

Hexacopter X700
Functions and features:
Hexacopter X700 is an entry-level aerial photography aircraft. Easy to carry, flexible to operate, stable and safe to use, ready to fly, avoid tedious installation and debugging. Its working mode divides into manual mode, GPS auto hovering mode and auto back landing mode, can control two axis gimbal stabilization, also available to update with wireless image transmission equipment for FPV.
Hexacopter X700 is an entry-level aerial photography aircraft. Easy to carry, flexible to operate, stable and safe to use, ready to fly, avoid tedious installation and debugging. Its working mode divides into manual mode, GPS auto hovering mode and auto back landing mode, can control two axis gimbal stabilization, also available to update with wireless image transmission equipment for FPV.
Description:
Product Brief Introduction
Hexacopter X700 is an entry-level aerial photography aircraft. Easy to carry, flexible to operate, stable and safe to use, ready to fly, avoid tedious installation and debugging. Its working mode divides into manual mode, GPS auto hovering mode and auto back landing mode, can control two axis gimbal stabilization, also available to update with wireless image transmission equipment for FPV.
Configuration and Specification:
Item |
Description |
Specification |
Quantity |
Unit |
1 |
Body |
3K carbon fiber+industrial plastic |
1 |
set |
2 |
Arm |
3K carbon fiber+industrial plastic |
6 |
pieces |
3 |
Landing Gear |
3K carbon fiber+industrial plastic |
1 |
set |
4 |
Motor |
C3510 KV560 |
6 |
pieces |
5 |
Propeller (option) |
1255 plastic (original) |
3 |
pairs |
1355 carbon fiber |
||||
6 |
Gimbal (option) |
2 axis brushless （available to GoPro or Sony) |
1 |
set |
7 |
Brushless ESC |
3-5S 20A high-speed |
6 |
pieces |
8 |
Flight Control |
GPS+INS |
1 |
set |
Technical Parameter
Max Spread Size |
990x990x360 |
mm |
Aluminum Case Size |
835x230x395 |
mm |
Motor Distance |
690 |
mm |
Battery |
1* LiPo 4S 10000mAh |
pc |
Aircraft Weight |
Not include battery and receiver |
1800g |
Take Off Weight |
1* 4S 10000mAh battery + 1* receiver |
2500g |
Max Take Off Weight |
1* 4S 10000mAh battery |
3700g |
Safety Payload |
1* GoPro or 1* Sony |
≤1000g |
Max Payload |
1* 4S 10000mAh battery |
≤1200g |
Flight Distance |
Sight range（limit by remote control) |
about 1000m |
Flight Time 1 |
1* 4S 10000mAh battery + 1* receiver |
about 25min |
Flight Time 2 |
1* 4S 10000mAh battery + 1* receiver + 1* gimbal + 1* GoPro |
about 20min |
Wind Resistance |
≤5 |
class |
Indicator Light working state as below:
No. |
Working Mode |
LED Indicator |
GPS signal normal |
GPS signal good |
GPS signal very good |
1 |
Manual Mode |
● |
● |
●● |
●●● |
2 |
GPS Auto Hovering Mode |
●● |
● |
●● |
●●● |
3 |
Auto Back Landing Mode |
●●● |
● |
●● |
●●● |
4 |
Need Gyro Initialization |
●●●● |
|||
5 |
Initializing |
|
|||
6 |
Vibration large |
|
Remote Control 3-level switch Diagram
Flight Mode |
CH5 Position |
Instruction |
Manual Mode |
|
Any emergency happened, please switch to manual mode in time in case aircraft flies away. |
GPS Auto Hovering Mode |
|
Fly about 1-3min(s) under manual mode, then switch to 2-level and adjust throttle joystick to center, GPS auto hovering starts, user can also adjust two joysticks to change its position, loose joysticks, it will hover at new position. |
Auto Back Landing Mode |
|
Default taking off point as return position(if return point shifts, user can switch to manual or GPS auto hovering mode to land it). |
| Lens | Normal lens |
|---|---|
| Manufacturer | X-Viki |
