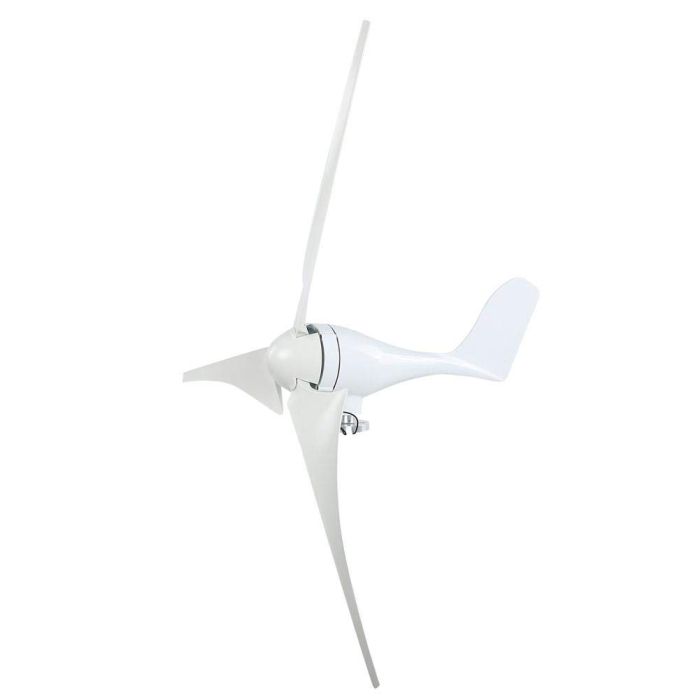

100W 12V Wind Turbine Generator 3 blades

100W 12V Wind Turbine Generator，3PCS 580mm Nylon Fiber Wind Blades Power Windmill Wind Generator，Automatically Adjustable Windward  with Flange Connection Installation

Features:

1. The built-in copper sleeve insert of the blade does not damage the nylon fiber when the bolt is tightened, making it difficult to deform or break.

2. The hub groove and the blade are tightly designed to make the matching between the blade and the hub more precise.

3. The wind turbine uses a flange connection to make it safer and more reliable.

4. Aluminum alloy body, stronger against wind.

5. High wind energy conversion rate, increasing annual power generation.

6. The surface of the hub is oxidized to make the surface less prone to corrosion and durable.

7. Low vibration and no noise.

Specification:

Condition: 100% Brand New

Item Type: Wind Generator

Model: NE-100S

Rated Power: 100W

Maximum Power: 130W

Rated Voltage: 12V

Start Up Wind Speed: 2.0m/s

Rated Wind Speed: 10m/s

Survival Wind Speed: 55m/s

Power Generation / Day: 0.3 KWH

Blades Quantity: 3pcs

Blade Length: Approx. 580mm / 22.8in

Installation Method: Flange Connection

Blades Material: Nylon Fiber

Generator Type: Three Phase Permanent Magnet AC Generator

Magnetic steel Material: NdFeB

Generator case Material: Die-casting aluminum

Braking Method: Electromagnet

Wind Direction Adjustment : Automatically Adjustable Windward

Working Temperature: -40 ° C ~ 80 ° C

Package List:

1 x Body

3 x Blades

1 x Wheel Hub

1 x Wind Generator Cover

1 x Screw Set
