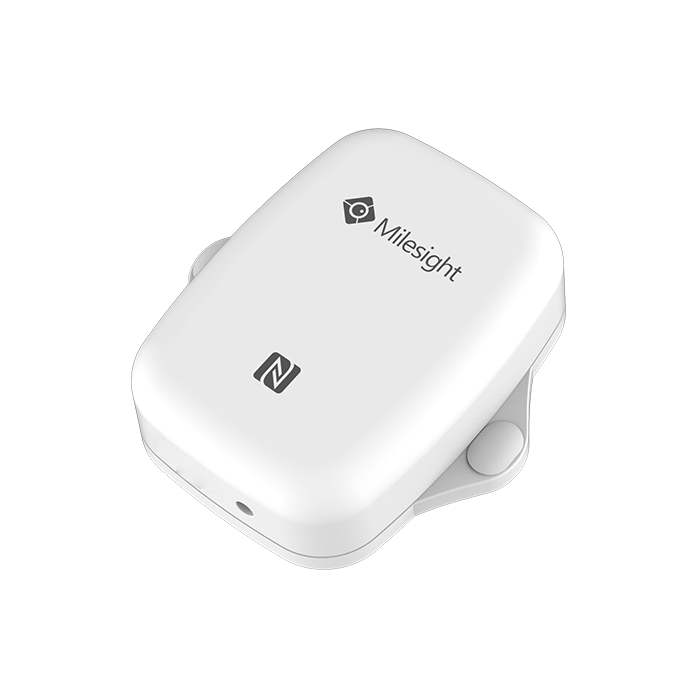

Milesight EM300-TH LoRaWAN Temperature and Humidity Sensor
SKU
EM300-TH
In stock
£46.80
£39.00
Overview
Milesight EM300-TH LoRaWAN Temperature and Humidity Sensor from 3G Mobile CCTV
Milesight EM300-TH LoRaWAN Temperature and Humidity Sensor
EM300-TH sensor is a long range wireless sensor compatible with standard LoRaWAN protocol. Combining with the advanced LoRa technology and 4000 mAh battery make it a low power consumption product with years-long use life. It integrates temperature and humidity sensors, which suits both indoor and outdoor environment monitoring applications.
- A robust and waterproof solution for temperature & humidity environment monitoring applications
- Up to 11 km communication range
- Easy configuration via NFC
- Standard LoRaWAN protocol
- Compliant with Ursalink Cloud and third-party platform
- Low power consumptio nwith 4000 mAh replaceable battery
Product Description
EM300 - TH LoRaWAN Temperature and Humidity Sensor
Ursalink EM300-TH is a LoRaWAN-based sensor for the detection and measurements of temperature and humidity. It features industrial-grade design and provides 5 to 10 years-long uselife. The rock-solid stability and reliable connectivity can be realized through LoRaWAN protocol and the radio communication range can be extended up to 15 km. This smart IoT sensor is engineered to monitor the indoor and outdoor environment and ensure comfortable and caring ambience for people.
|
Quick Details
|
||||
|
LoRaWAN
|
Frequency
|
CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
|
||
|
Mode
|
OTAA/ABP Class A
|
|||
|
Temperature Measurement
|
Range
|
-30°C to + 70°C
|
||
|
Accuracy
|
0°C to + 70°C (±0.3°C), -30°C to 0°C (±0.6°C)
|
|||
|
Humidity Measurement
|
Range
|
0% to 100% RH
|
||
|
Accuracy
|
10% to 90% RH (±3%), below 10% and above 90% RH(±5%)
|
|||
|
Physical Characteristics
|
Power Supply
|
ER18505 Li-SOCl2 4000 mAh battery (8000 mAh optional)
|
||
|
Battery Life
|
≧ 5 years ( for 1 battery)
|
|||
|
Ingress Protection
|
IP67
|
|||
|
Dimension
|
88 × 87 × 27 mm
|
|||
High Accuracy
Rugged Design
With the future-proof design in mind, the EM300-TH LoRaWAN temperature and humidity sensor is engineered to keep your machines connected in the harsh environments.
Build for Longevity
Ursalink also delves into how the cutting-edge technology will generally extend the working life of EM300 - TH. The ultra low power consumption enhances IoT productivity and the ease of digitalisation. The battery can achieve a long operational lifespans of up to 10 years in the most demanding environment.
Ursalink Cloud
Detailed Images
|
Specifications
|
||||
|
LoRaWAN
|
Frequency
|
CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
|
||
|
Tx Power
|
20dBm (915) / 16dBm (868) / 17dBm (470)
|
|||
|
Sensitivity
|
-147dBm @300bps
|
|||
|
Mode
|
OTAA/ABP Class A
|
|||
|
Temperature Measurement
|
Range
|
-30°C to + 70°C
|
||
|
Accuracy
|
0°C to + 70°C (±0.3°C), -30°C to 0°C (±0.6°C)
|
|||
|
Resolution
|
0.1°C
|
|||
|
Humidity Measurement
|
Range
|
0% to 100% RH
|
||
|
Accuracy
|
10% to 90% RH (±3%), below 10% and above 90% RH(±5%)
|
|||
|
Resolution
|
0.5% RH
|
|||
|
Physical Characteristics
|
Power Supply
|
ER18505 Li-SOCl2 4000 mAh battery (8000 mAh optional)
|
||
|
Battery Life
|
≧ 5 years ( for 1 battery)
|
|||
|
Operating Temperature
|
-30°C to 70°C
|
|||
|
Ingress Protection
|
IP67
|
|||
|
Dimension
|
88 × 87 × 27 mm
|
|||
|
Mounting
|
Wall (screws or 3M adhesives)
|
|||
Ordering Information
Applications
| Manufacturer | Milesight |
|---|
