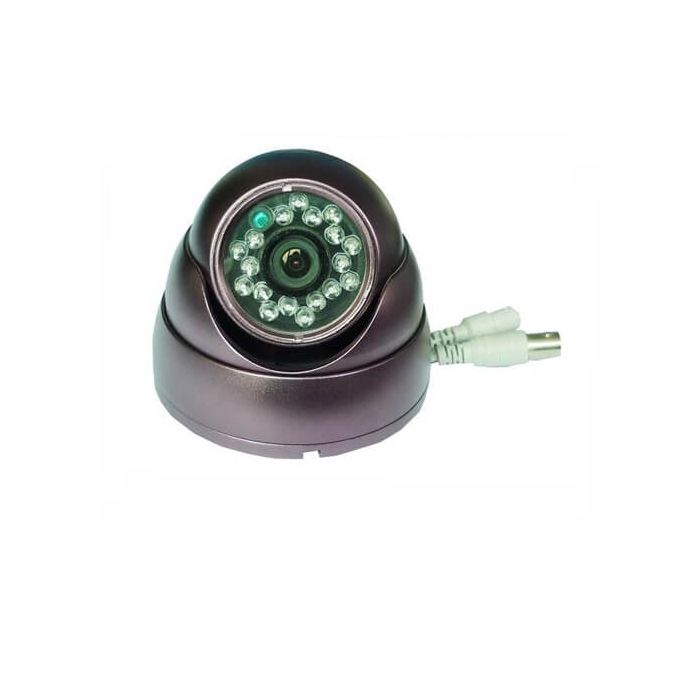

TS-121C10-AHD color 1/4" CMOS 720P metal IR HD dome vehicle camera
SKU
TS-121C10-AHD
In stock
£25.20
£21.00
Overview
TS-121C10-AHD color 1/4" CMOS 720P metal IR HD dome vehicle camera from 3G Mobile CCTV
TS-121C10-AHD color 1/4" CMOS 720P metal IR dome vehicle camera
* Dome IR Metal Camera ,without audio,can connect external micphone
* Support for contrast, brightness, saturation, sharpness adjustment
* Automatic exposure control, gain control, white balance
* Waterproof: IP65
* Work temperature:-20℃～+55℃
* Color: black * Dimension: D92.5xH66.5(mm)
|
Model |
TS-121C10-AHD |
|||
|
name |
Analog Metal Dome camera |
|||
|
Image sensor |
SONY 1/3 CCD |
|||
|
Resolution |
976(水平Horizontal)×582(Vertical) |
|||
|
Horizontal Resolution |
700TVL |
|||
|
Min.illumination |
0.1Lux @(F1.2,AGC ON),0 LUX with IR 0.01 Lux @ (F1.2,AGC ON),0 LUX with IR |
|||
|
Signal system |
PAL/NTSC optional |
|||
|
Shutter speed |
1/50 1/100000 1/50S to 1/100000S |
|||
|
Lens |
3.6mm @ F2.0(2.8~12 mm optional) |
|||
|
FOV |
Horizontal:0°~355°;Vertical:0°~90°;Rotation:0°~355° |
|||
|
Day and night |
Electronic auto color to black |
|||
|
Synchronization system |
inter-sync |
|||
|
Video output |
1Vp-p Composite Output(75Ω/BNC)(75Ω/BNC and aviation connector optional ) |
|||
|
SN |
62dB ＞62db |
|||
|
Audio |
can not built in |
|||
|
color |
Black/white/purple/gray/silver optional |
|||
|
Operating temperature and humidity |
Temperature:-10℃~60℃, humidity: <90% 90%(no condensation) |
|||
|
Power supply |
DC12V±10% |
|||
|
Power consumption |
＜3W |
|||
|
Video output cable length |
40cm |
|||
|
Ingress protection |
IP64 |
|||
|
IR distance |
10 Meters |
|||
|
Size |
Product Dimension:diameter92.5mmxheight66.5 mm ，Package dimension:110*110*85 mm |
|||
|
Net/Gross weight |
279 g /310g |
|||
| Lens | Normal lens |
|---|---|
| Manufacturer | Teswell |
