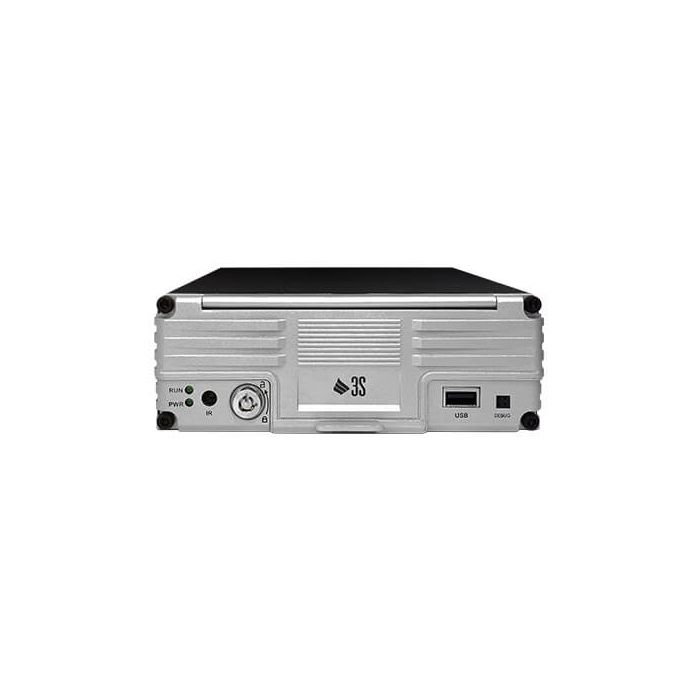

3S Vision D9001 GPS + 4G enabled 8+1 channels AHD HD in-vehicle DVR fleet video return + GPS positioning

3S Vision D9001 GPS + 4G enabled 8+1 channels  AHD HD in-vehicle DVR fleet video return + GPS positioning

• H.264 encoding, high compression ratio, clear image.
• Support 8 AHD 720P + 1 1.3 million pixel high-definition instant video, up to 1080N video support.
• Analog high-definition video and audio input, 1 video and audio synchronization output, 1 VGA output
• Professional automotive power supply design 10-36V DC wide voltage input design.
• Voltage instability, short circuit, reverse and other protection circuit, suitable for a variety of models.
• Support intelligent power management identification, low power automatic shutdown, turn off low power consumption.
• Adopt special file management mechanism to encrypt data and effectively protect data security.
• Proprietary disk bad track detection technology, both to ensure video continuity, but also extend the life of the disk.
• Built-in super capacitor, to avoid abnormal power failure data loss and disk damage.
• Support 2.5-inch hard drive, maximum support 2TB.
• Support SD storage, maximum support 256G.
• Support GPS / BDS positioning.

System



Operating system	Embedded Linux
Operating language	Chinese / English
Operation interface	Graphical user interface, branch source mouse operation
Management authority	General user, administrator two levels of management



Video and audio

Video format	PAL / NTSC
Video compression standard	H.264
Image resolution	720P / 960H / D1 / CIF @30 fps
Playback quality	720P / 960H / D1 / CIF @30 fps
Video quality	1 ~ 6 level optional
Screen display	1,2,3,4,9 split display
Audio compression standard	G.726
Recording method	Audio and video synchronization recording



Recording and playback

Video mode	Manual / alarm
Video bit rate	Variable rate / fixed rate, 6 quality optional
Audio rate	8KB/s
Storage interface	Hard drive / SD card
Video inquiries	You can search by channel, video type, alarm type
Play back locally	Single, by time
Time-lapse video	When ACC is OFF, power is delayed for about 30 seconds
Save format	ifv / avi



Software upgrade



Upgrade mode	Manual upgrade / automatic upgrade / remote upgrade / emergency recovery
Upgrade method	USB / network / SD card / hard drive



I/O interface



Audio and video input	8-channel 4-core aviation head +1 +1 6-core aviation head interface Camera power output 4 sets of power DC12V / 375mA
Audio and video output	1 channel aviation audio and video output
Alarm input	4 groups of digital inputs (4 groups can be configured positive / negative trigger)
Hard disk interface	2.5-inch hard drive (maximum support 2TB)
SD card	SDXC X1 (maximum support 256G)
USB interface	USB 2.0X1 (supports mouse operation, USB delay self test)
Ignition input	1 channel ACC signal
LED indicator	PWR / RUN
Network interface	1-way 6-pin aviation head interface (10M / 100M) Camera power output DC12V / 500mA
Hard drive (SD card) lock	1



GPS/4G/WIFI



GPS	Supports antenna insertion / pull-out / short-circuit detection
2G / 3G / 4G	Support CDMA / EVDO / GPRS / WCDMA / FDD LTE / TDD LTE
WIFI	802.11b / g / n, frequency of 2.4GHz



Others

Power Management	1.DC8V ~ 36V 2.DC5V 300mA 3.ACC power off delay
Power consumption	Standby power consumption DC12V / 30mA Maximum power consumption 30W DC12V / 2.5A; DC24V / 1.25A
Operating temperature	-20 ° C ~ + 70 ° C RH90% Max
Size (bare metal)	162mm * 155mm * 56mm (width * length * height)
Size (color box packaging)	292mm * 195mm * 70mm (W * L * H)
Weight (bare metal without hard disk)	1300g
Weight (including packaging accessories)	1800g



Ver.3S201711-01



Dimension Diagram
