MA200 Mini Sound Pickup Monitor Range: 80~160 square meters
SKU
MA200
In stock
£6.00
£5.00
Overview
MA200 Mini Sound Pickup Monitor Range: 80~160 square meters
MA200 Mini Sound Pickup Monitor Range: 80~160 square meters
Main Features
1 This sound pickup is very suitable for hidden or embedded installation. Pickup head is as small as a pinhole.
It has AV and DC jack, which is very convenient to connect. It’s also very good to surveillance.
2 This device is a new style and high sensitive pickup. It is a professional product specially designed for supporting use
of security systems, like CCTV surveillance, burglar alarm, etc.It is for monitor and sound recording. Monitor range is
up to 160 square meters.
3 High sensitivity, low noise, low distortion, small size, low voltage, small power consumption( 4pcs of 3A batteries
can continuously work for 2 months). Long transmission range, easy and convenient connection. Be able to monitor
in a wide range.
4 It can be widely used to various places, like bank, finance, market, prison, judicial, test room, meeting room, industrial
production, military areas, etc.
5 This pickup also can be used in highway toll station when it is connected with a wireless repeater.

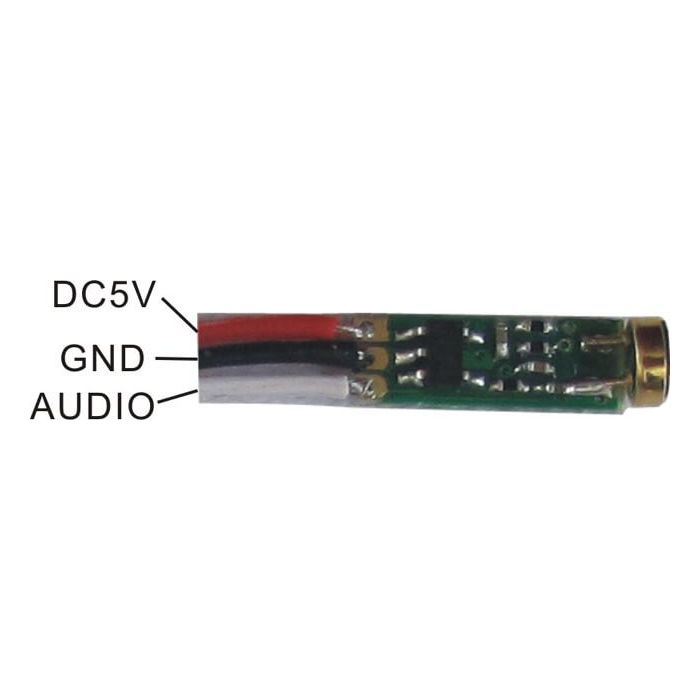

6 Cable connection: red-- power supply black-- ground white-- signal
Specification
Item |
Parameter |
Monitor Range |
80~160 square meters |
Frequency Response |
200Hz～10kHz |
Sensitivity |
-60dB |
Directivity |
Omni |
Dynamic Range |
35dB (1KHz at Max dB SPL) |
Maximum SPL |
80dB SPL (1KHz,THD 1%) |
Output Impedance |
600-1000 OhmNon-equilibrium |
Output signal amplitude |
2.0Vpp/-25db |
MIC. |
Capacitor microphone |
Voltage |
DC 3.3V-6V |
Current |
2mA |
Operating Temperature |
25℃～70℃ |
Color |
Black |
Shell Material |
PVC |
Size |
L=14mm; D=4.2mm |
Weight |
MA200A ：20g MA200：0.2g |
Environmental Temperature |
- 20°C ~ + 50°C ，Relative humidity85﹪ |
Connection |
3 connection ports: red—power supply black-- ground white-- signal |
Transmission Cable |
RVVP3×0.5mm2，（Please use shielding cable in electromagnetic environment.） |
| Lens | Normal lens |
|---|---|
| Manufacturer | 3G Mobile |
