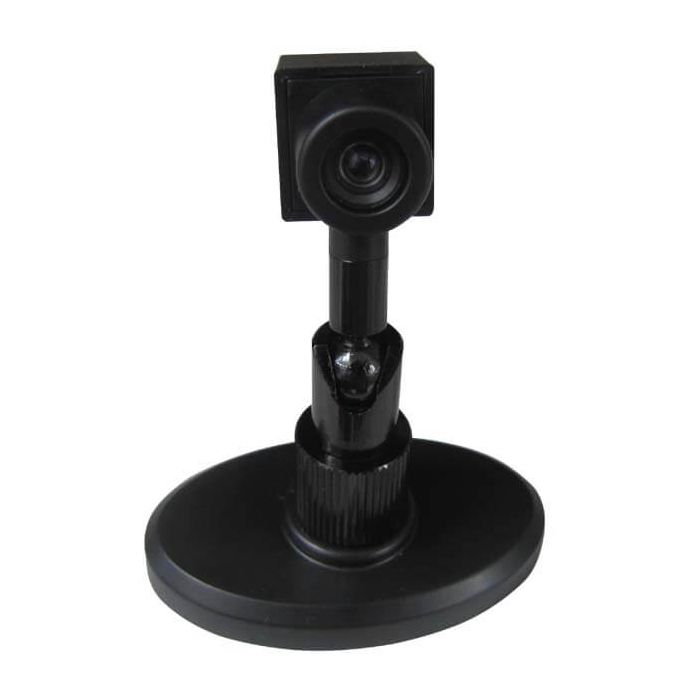

MC91 1/4 cmos audio mini camera with 360deg turning stand 90 Degree view anlge & 3.6-24v wide voltage & 480TVL

SKU
MC91
In stock
£18.00 £15.00
-
+
Overview
MC91 1/4 cmos audio mini camera with 360deg turning stand 90 Degree view anlge & 3.6-24v wide voltage & 480TVL from 3G Mobile CCTV

MC91 1/4 cmos audio mini camera with 360deg turning stand 90 Degree view anlge & 3.6-24v wide voltage & 480TVL

Main Features

  1. Small Size: easy to install into narrow room and slim tube, etc.;
  2. Easy Installation: Simply place it at any desktop with its detachable base station, or screw it on the wall with the detachable stand;
  3. Camera stand can rotate 360 degrees, all-round monitoring
  4. High resolution, high sensitivity, high SNR;
  5. Day & night dual mode auto switch;
  6. Low Illumination, Low Current and power consumption;
  7. CMOS sensor generation IV+DSP chip offer true color & HD video.


Specifications:



PICK UP ELEMENT

Single chip 1/4CMOS

SYSTEM

NTSC

PAL

NUMBER OF PIXEL

NTSC:720(H)×480(V)

PAL:720(H)×576(V)

SENSOR DIMENSION

3.584mm(H)×2.688mm(V)

HORIZONTAL RESOLUTION

Approximately 480TV Lines

SENSITIVITY

0.05Lux/F1.2

LENS & VIEW ANGLE

F1.2 / 90°

S/N RATIO

48dB

AUTO GAIN CONTROL

OUT

WHITE BALANCE CONTROL

OUT

BACK LIGHT COMPENSATION

OUT

VIDEO OUT

1.0V p-p/75ohm

AUDIO OUT

1.0V p-p/1Kohm (Only MC91A)

WEIGHT



5g

SIZE(LXWXH)

15.5X15.5X22.5mm

WORK CURRENT

DC12V: 45mA   DC5V: 95mA

POWER REQUIREMENT

DC:3.6V-24V

OPERATING TEMPERATURE

- 10° C ~ +50°C ,less than 90% RH

Connection

PIN1=>Red DC5V /12V PIN2=> Black GND PIN3=>Yellow VIDEO OUT PIN4=>White AUDIO OUT

 Usage

1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;

Contents:
mini camera x 1

Stand x 1

RCA or BNC Cable x1

AC Adapterx1

More Information
Lens Normal lens
Manufacturer 3G Mobile
