MC493A-12 0.008Lux 520TVL with audio Mini CCTV Camera with installation holes
SKU
MC493A-12
In stock
£21.60
£18.00
Overview

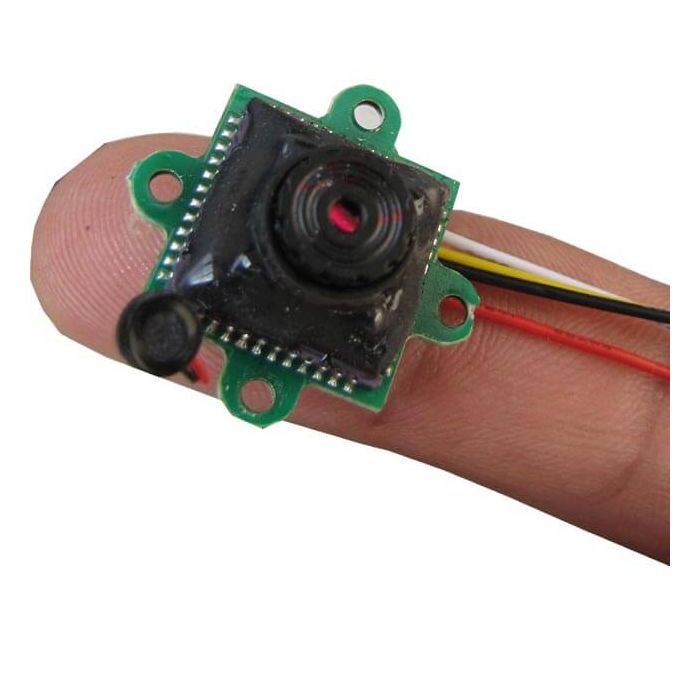

MC493A-12 0.008Lux 520TVL with audio Mini CCTV Camera with installation holes
MC493A 0.008Lux 520TVL with audio Mini CCTV Camera with installation holes
Features & functions
It’s a high definition micro-sized CCTV camera with excellent night vision.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
Two screw holes available, very convenient to fix on the target places.
Moreover, Micro size make it very easy to install and conceal.Full TV system. Applicable worldwide.
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites,
Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels,
Surveillance and Covert use, Nursery and child care, Firearm,etc.
Contents
Mini camera X1; RCA/BNC cableX1;AC adapter X1
MC493A Specification
|
PICK UP ELEMENT
|
Single chip 1/3 CMOS
|
|
|
SYSTEM
|
NTSC
|
PAL
|
|
NUMBER OF PIXEL
|
NTSC：656（H）×492（V）
|
PAL：786（H）×576（V）
|
|
IMAGE SIGNAL PROCESS
|
Digital Signal Processing System
|
|
|
SENSOR DIMENSION
|
4.75mm（H）×3.55mm（V）
|
|
|
HORIZONTAL RESOLUTION
|
Approximately 520TV Lines
|
|
|
SCANNING SYSTEM
|
2：1 Interlace
|
|
|
SENSITIVITY
|
0.008Lux/F1.2
|
|
|
LENS & VIEW ANGLE
|
0.5mm F2.0 / 55 °
|
|
|
S/N RATIO
|
52dB
|
|
|
ELECTRONIC SHUTTER
|
OUT （1/60 S TO 1/100000 S）
|
OUT （1/50 S TO 1/100000 S）
|
|
AUTO GAIN CONTROL
|
OUT
|
|
|
WHITE BALANCE CONTROL
|
OUT
|
|
|
BACK LIGHT COMPENSATION
|
OUT
|
|
|
VIDEO OUT
|
1.0V p-p/75ohm
|
|
|
AUDIO OUT
|
1.0V p-p/1Kohm
|
|
|
SIZE (L x W x H)
|
16mm x 16mm x 10.5mm
|
|
|
WEIGHT
|
3g
|
|
|
WORK CURRENT
|
72mA
|
|
|
POWER REQUIREMENT
|
DC9-12V 72mA
|
|
|
OPERATING TEMPERATURE
|
- 10° C ~ +50°C ，less than 90% RH
|
|
|
Connection
|
PIN1- Red DC5V PIN2- Black GND PIN3-Yellow VIDEO OUT PIN4- white AUDIO OUT
|
|
Usage
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR.
4) A standalone system that records is a standalone DVR.
| Lens | Normal lens |
|---|---|
| Manufacturer | 3G Mobile |
