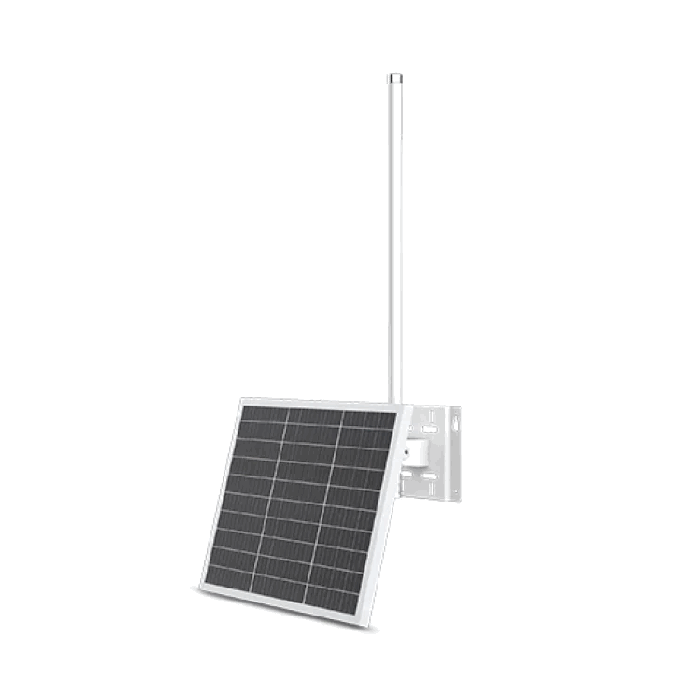

Milesight SG50 40W LoRaWAN Gateway

Milesight SG50 40W LoRaWAN Gateway

Harness Solar Energy for Remote Connectivity with the SG50 Solar LoRaWAN® Gateway

SG50 facilitates connectivity in remote areas, combining solar power, a built-in battery, 4G communication, and advanced remote management. It enables wire-free deployment and independent operation in challenging environments.

Experience unmatched connectivity in the most challenging environments with the SG50, an energy-efficient solar LoRaWAN® gateway. Designed for outdoor settings where power sources are scarce but solar energy is abundant, the SG50 operates independently with its built-in batteries and an optional solar panel.

This gateway is not just adaptable; it's also robustly compatible with mainstream network servers, offering secure and convenient remote management. Its high IP67 protection rate ensures smooth operation in harsh conditions, making it an ideal solution for industries like oil and gas, mining, and forestry, where careful power management is crucial.

Empowering remote areas, the SG50 combines solar power, a reliable 25Ah internal battery, and 4G communication for wire-free deployment. Even in the absence of sunlight, it promises up to 4 days of uninterrupted operation, thanks to its smart power management, including a 0.8w typical power consumption, data package filtering, and smart WiFi control.

With the SG50, you're not just choosing a device; you're embracing a sustainable, reliable solution for remote connectivity.

Towards Massive Connectivity for IoT Deployments

8 Channels    |    2000 End-Nodes    |    Up to 15 km Communication Range
Global Frequency Plans (RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4)

Harness the Sun's Power Anywhere

SG50 uses a 30W standard solar panel (with an optional 45W upgrade) to capture solar energy, simultaneously powering the device and recharging the internal battery in ample sunlight. It dynamically adjusts the charging current according to battery temperature to optimize solar energy usage and extend battery life.

Reliability Without Sunlight, Always Connected

SG50 ensures uninterrupted operations at night or during cloudy periods with its built-in battery. It features a reliable 25Ah internal battery, ensuring typical operation for up to 4 days without sunlight.

Low Power Consumption Design

• Typical Power Consumption: 0.8w
• Data Package Filter: This feature filters out invalid packages, effectively reducing unnecessary power and cellular usage.
• Smart WiFi Control: It offers automatic WiFi shutdown during low solar power, reactivation on battery charging, and scheduled WiFi control for battery efficiency.



High Reliability in Harsh Conditions

• Ingress Protection: IP67
• Operating Temperature: -30°C to +70°C
• Battery Charging Temperature: -20°C to +50°C
• Low-Temperature Battery Heating to Maintain Normal Operation


Wireless Deployment with 4G Connectivity

Whether in remote areas or cost-sensitive locations, 4G wireless deployment reduces Ethernet wiring expenses and enhances convenience.

Remote Management and Automatic Configuration (Coming Soon)

SG50 works with the new Milesight management platform, which integrates LNS (LoRaWAN Network Server). It enables automatic configuration file retrieval when the device is online, and simplifies remote configuration and updates.

Truly Wire-free Deployment and Operation

SG50 combines solar power, a built-in battery, 4G wireless communication, and remote management to enable completely wire-free deployment and independent operation in remote and challenging locations.

Effortless Adaptation, Solar Panel or Not

SG50 is also well-suited for non-solar-panel applications, such as smart streetlights. The SG50 is powered and its internal battery is charged at night when streetlights are on, running on the internal battery during the day when streetlights are off.

LoRaWAN® Based

Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas

High Compatibility: compliant with standard LoRaWAN® sensors and network servers

Listen Before Talk

SG50 supports Listen Before Talk (LBT), enabling multiple devices to effectively share the same channel. This technology minimizes channel conflicts and enhances the overall transmission environment.

Third-Party Network Server Integration

• Chirpstack
• Basics Station
• The Things Network
• AWS
• Senet



Easy Configuration via Wi-Fi

SG50 offers effortless Wi-Fi configuration within a 10-15 meter range, eliminating the need for proximity. This essential feature simplifies setup, particularly in remote or challenging locations, saving time and enhancing accessibility. Note: WiFi is solely utilized for configuration purposes.

Easy Installation

• Wall Mounting
• Pole Mounting

Product Features

• Fast deployment with the all-in-one design and standard accessories.
• Built-in rechargeable batteries and an accessory solar panel for wireless usage.
• Supports cellular backhaul network enabling independent networking.
• Equipped with a high-efficiency power management design, prolonging its battery life up to 4 days.
• Compatible with remote management systems for simple deployment, even in remote regions.
• IP67 enclosure and robust structural design enhance its strength and working lifespan.
• Equipped with the SX1302 chip, handling a higher amount of traffic with lower consumption.



Milesight SG50 Ultra Low Power Autonomous Solar LoRaWAN® Gateway Video

Product Specifications
