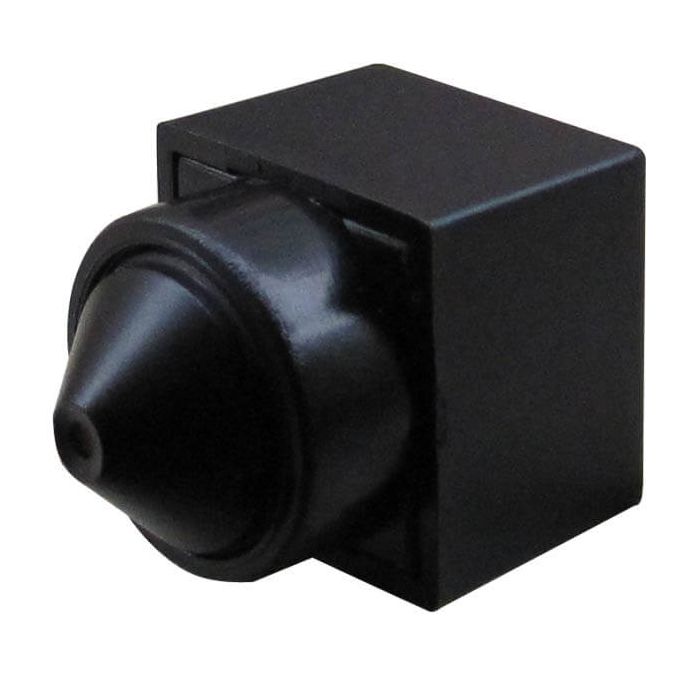

MC91AP36 Pinhole lens 90deg view 480TVL 0.05Lux Mini CCTV Camera
SKU
MC91AP36
In stock
£25.20
£21.00
Overview
MC91AP36 Pinhole lens 90deg view 480TVL 0.05Lux Mini CCTV Camera
| MC91AP36 Pinhole lens 90deg view 480TVL 0.05Lux Mini CCTV Camera |
Main Features
- 90 degree wide view angle pinhole lens,.6-24v wide voltage;
- Small Size: easy to install into narrow room and slim tube, etc.;
- High resolution, high sensitivity, high SNR;
- Day & night dual mode auto switch;
- Low Illumination, Low Current and power consumption;
- CMOS sensor generation IV+DSP chip offer true color & HD video.
- Exellent night vision of 0.05Lux/F2.8
Specifications:
PICK UP ELEMENT |
Single chip 1/4CMOS |
|
SYSTEM |
NTSC |
PAL |
NUMBER OF PIXEL |
NTSC:720(H)×480(V) |
PAL:720(H)×576(V) |
SENSOR DIMENSION |
3.584mm(H)×2.688mm(V) |
|
HORIZONTAL RESOLUTION |
Approximately 480TV Lines |
|
SENSITIVITY |
0.05Lux/F2.8 |
|
LENS & VIEW ANGLE |
F2.8/ 90° |
|
S/N RATIO |
48dB |
|
AUTO GAIN CONTROL |
OUT |
|
WHITE BALANCE CONTROL |
OUT |
|
BACK LIGHT COMPENSATION |
OUT |
|
VIDEO OUT |
1.0V p-p/75ohm |
|
WEIGHT |
6g |
|
SIZE(LXWXH) |
15.5X15.5X20mm |
|
WORK CURRENT |
DC12V: 45mA DC5V: 95mA |
|
POWER REQUIREMENT |
DC:3.6V-24V |
|
OPERATING TEMPERATURE |
- 10° C ~ +50°C ,less than 90% RH |
|
Connection |
PIN1=> Red DC5V /12V PIN2=>Black GND PIN3=>Yellow VIDEO OUT |
|
| Lens | Normal lens |
|---|---|
| Manufacturer | 3G Mobile |
