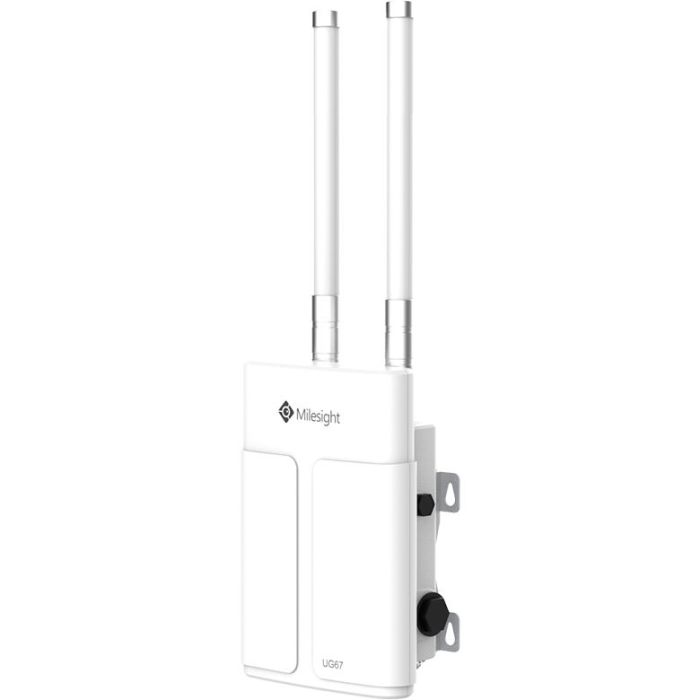

Milesight UG67 outdoor LoRaWAN Hotspot Helium gateway

SKU
UG67-H32-HELIUM
Be the first to review this product
In stock
£1,092.00 £910.00
Ship to GB Calculate Shipping Cost
-
+
Add to Wish List Add to Compare
Overview

Milesight UG67 outdoor LoRaWAN Hotspot Helium gateway crypto miner is an industrial production grade with an IP67 enclosure, 4G backhaul, 2 antenna connectors (one 4dBi outdoor antenna included in the package), and capable to work in a harsh environment between -40 and +70 degrees Celsius and with up to 95% humidity.from 3G Mobile CCTV

Milesight UG67 outdoor LoRaWAN Hotspot Helium gateway

Description

Milesight IoT UG67 Helium hotspot Miner is the premium device in Milesight’s Helium Gateway family. It is based on the well-established UG67 LoRaWAN gateway. Milesight UG67 Helium Hotspot is an industrial production grade with an IP67 enclosure, 4G backhaul, 2 antenna connectors (one 4dBi outdoor antenna included in the package), and capable to work in a harsh environment between -40 and +70 degrees Celsius and with up to 95% humidity. No more worries about whether your hotspot will overheat or freeze outside.

Adopting the SX1302 LoRa chip and high-performance quad-core CPU, UG67 supports connection with more than 2000 nodes. UG67 has a line of sight up to 15 km and can cover about 2 km in an urbanized environment, which is ideally suited to smart offices, smart buildings, and many other indoor applications.

UG67 Helium Miner
FEATURES

  • 4G / LTE Backhaul
  • 2 N-Type Female antenna connectors (one for transmitting and one for receiving)
  • One 4 dBi outdoor antenna is included in the package (works for both transmitting and receiving if there is no second installed)
  • Built-in GPS with internal antenna
  • SD card slot for expanding the storage
  • Quad-core industrial processor with big memory
  • Equip with SX1302 chip, handing a higher amount of traffic with lower consumption
  • 8 half/full-duplex channels
  • IP67 enclosure and industrial design for parts of outdoor environment applications
  • Enable security communication with multiple VPNs like IPsec/OpenVPN/L2TP/PPTP/DMVPN
  • Compatible with Helium people’s network
  • Detect and analyze the noise level and provide intuitive diagram for deployment
  • Built-in network server and MQTT/HTTP/HTTPS API for easily integration
  • Embedded Python SDK for users secondary development
  • Fast and user-friendly programming by Node-RED development tool


Milesight LoRaWAN® Hotspot

Compatible with Helium Network

Helium LongFi

High-Gain Antenna

Ultra-low Power

ATECC608 Crypto Chip



Helium LongFi

Compatible with Helium LongFi, a technology benefits from all advantages and features of LoRaWAN® network while adding the capability for gateway owners to earn HNT (Helium Network Token)

High Performance

  • Quad-core Processor
  • 2 GB DDR4 RAM
  • 32 GB Flash
  • 512 GB SSD (Optional for UG67)

Adopted NXP industrial-grade quad-core processor, 2 GB big memory, and 32 GB eMMC flash, the Milesight LoRaWAN Hotspots provide the top-notch hardware for an efficient mining operation

milesight-helium-hotspot-high-performance



Secure and Reliable

Milesight LoRaWAN Hotspots built-in ATECC608 crypto chip provides swarm keys storage, as well as highly secure authentication and reliable connectivity.

milesight-helium-hotspot-secure-reliable

High-Gain Antenna

  • 8/9 dBi Antenna (Optional)

Enhanced high-gain antenna offers wider network coverage, meaning better Proof of Coverage for increased HNT earnings.

milesight-helium-hotspot-high-gain-antenna



Ultra-low Power Consumption

The maximum power consumption is below 5 W. The electricity usage is similar to a 5 W LED bulb.

milesight-helium-hotspot-low-power

milesight-helium-hotspot-product-selection

UG65

Semi-industrial LoRaWAN® Hotspot

Applicable to more places than just indoors

UG67

Outdoor LoRaWAN® Hotspot

Qualified to work in harsh outdoor environments

How do I earn HNT?

earn-hnt-proof-of-coverage

Proof-of-Coverage

Hotspots on the network are randomly and automatically assigned Proof-of-Coverage tests to complete. Passing and witnessing tests earns HNT.

earn-hnt-relay-device-data

Relay Device Data

Hotspots earn HNT for transferring device data over the network. The more device data a Hotspot transfers, the more it earns.

earn-hnt-consensus-groups

Consensus Groups

Trusted Hotspots are randomly elected to Consensus Groups, earning HNT by validating transactions and adding blocks to the blockchain.

milesight-helium-hotspot-topology

Specifications:
Hardware System
CPU Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Memory 2 GB DDR4 RAM
Flash 32 GB eMMC
Encryption Chip ATECC608
LoRaWAN®
Antenna UG65: 2 × Internal Antennas + 1 × 50 Ω N-Female External Connector
UG67: 2 × Internal Antennas + 2 × 50 Ω N-Female External Connectors
Channel 8 (Half/Full-duplex)
Frequency Band RU864/IN865/EU868/US915/AU915/KR920/AS923/AS923-2
Sensitivity -140dBm Sensitivity @292bps
Output Power 27dBm Max
Protocol V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
Ethernet Interface
Port 1 × RJ45 (PoE PD supported)
Physical Layer 10/100/1000 Base-T (IEEE 802.3)
Data Rate 10/100/1000 Mbps (Auto-Sensing)
Interface Auto MDI/MDIX
Mode Full or Half Duplex (Auto-Sensing)
Wi-Fi Interface
Antenna Internal Antenna
Standards IEEE 802.11 b/g/n, 2.4GHz
Mode AP or Client mode
Security WPA/WPA2 authentication, WEP/TKIP/AES encryption
Tx Power 802.11b: 18 dBm +/-2.0 dBm (11 Mbps)
802.11g: 15 dBm +/-2.0 dBm (6 Mbps)
802.11g: 15 dBm +/-2.0 dBm (54 Mbps)
802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20)
802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20)
802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40)
802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)
Cellular Interface (UG65: Optional; UG67 By Default)
Antenna Internal Antenna
SIM Slot 1 (mini SIM-2FF)
Others
Reset Button 1 × RST
Console Port 1 × Type-C
LED Indicator UG65: 1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH
UG67: 1 × SYS, 1 × LoRa, 1 × LTE
Built-in Watchdog, RTC, Timer
Software
Network Protocols PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS,
DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Firewall ACL/DMZ/Port Mapping/MAC Binding/URL Filter
Management Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud
Reliability WAN Failover
App Python SDK, Node-RED
Power Supply
Power Input UG65: 1 × 802.3 af PoE input & DC Jack Connector for 9-24 VDC power supply
UG67: 1 × 802.3 af PoE input & 12 VDC with M12 Connector
Physical Characteristics
Ingress Protection UG65: IP65 UG67: IP67
Dimensions UG65: 180 x 110 x 56.5 mm (7.09 x 4.33 x 2.22 in)
UG67: 250 x 172 x 92 mm (9.84 x 6.77 x 3.62 in)
Installation Wall or Pole Mounting
Environmental
Operating Temperature -40°C to +70°C (-40℉ to +158℉)
Reduced Cellular Performance Above 60°C
Storage Temperature -40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation 1.5 kV RMS
Relative Humidity 0% to 95% (non-condensing) at 25°C/77℉
