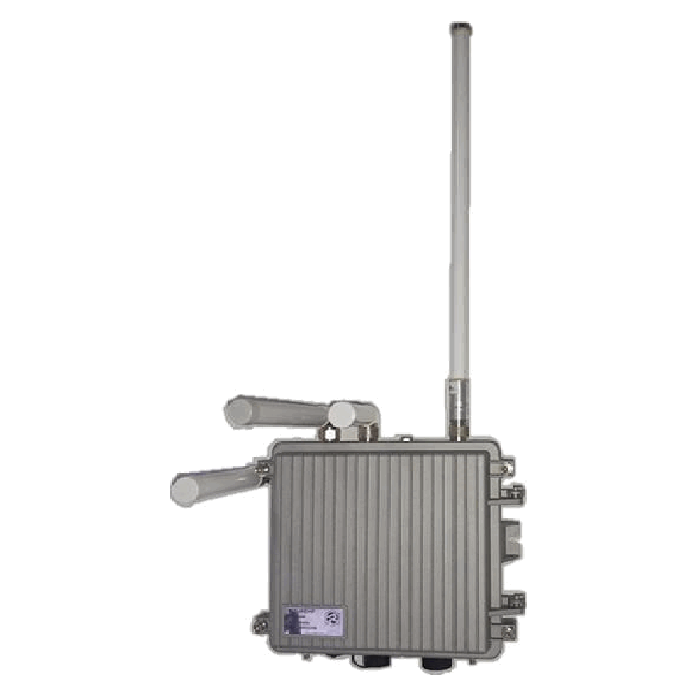

RisingHF RHF2S208 Outdoor LoRaWAN Gateway

RHF2S208 developed by RisingHF is a new generation GW with LoRa®/LoRaWAN® compliant which supports Full Duplex communication with up to 16 channels (with Multi SFs).

RisingHF RHF2S208 Outdoor LoRaWAN Gateway

RHF2S208 developed by RisingHF is a new generation GW with LoRa®/LoRaWAN® compliant which supports Full Duplex communication with up to 16 channels (with Multi SFs). The GW integrates one 1.2GHz ARM Cortex-A53 CPU which runs Linux OS. And also 1x or 2x SX1301 to provide LoRa® transmit and receive functionality. SX1301 is a high-performance LoRa® processor developed by Semtech. The 2 x SX1301 full duplex hardware version will extend the network capacity to more than 2x compared to the traditional 8 channels half duplex one.

Product Description

The gateway is backhaul via 10/100M Ethernet or LTE. An onboard GPS module could be used to generate a PPS signal for synchronization. Furthermore, an internal web UI is integrated for quick configuration and fault diagnosis analysis and maintenance. Benefiting from the RHF2S208 WIFI interface, customers could use devices like PCs or laptops to connect with it directly to initial, configure or debug when needed. Various power supply plans are supported, like DC injector, PoE, and internal LiFePO4 battery. It also provides an acid battery charged with solar panels choice.

Main Features:

Maximum output power:25dBm

High sensitivity:-140dBm@300bps

Half duplex or Full duplex optional

Optional(8 or 16) uplink channels

LoRaWAN® downlink: 1 normal channel(125kHz/250kHz/500kHz LoRa® configurable or GFSK)

LoRaWAN® Antenna Gain:2dBi

Compatible with PoE IEEE 802.3 af/at

10/100M Ethernet or 4G modem(WCDMA/TD-LTE/GPRS/EDGE) for networking

synchronization with GPS PPS signal

Quick configuration and maintenance through WiFi

USB interface for debug

Power supply: DC jack, PoE and internal LiFePO4 battery

Up to 4hr duration time with a backup battery

Support acid battery charged with solar panels

Operating temperature: -40°C to +75°C

Waterproof level: IP67

10kA surge protection



Applications

  • M2M,IOT,and LPWAN
  • Wireless sensor network
  • AMR
  • Industry 4.0,Industrial monitor
  • Wireless remote control and monitor
  • Smart Home, Smart building, Smart community and Smart city;
  • Wireless alarm and security
  • environment monitor

Features

  • LoRaWAN half-duplex or full-duplex operation mode available;

  • RHF2S208xx8 series: Uplink include 8 multi-SF LoRa channel, 1 single-SF LoRa channel, and 1 GFSK channel;

  • RHF2S208xxF series: Uplink include 16 multi-SF LoRa channel, 2 single-SF LoRa channel, and 2 GFSK channel; (No Release yet)

  • Output power achieve to 27dBm max, receiver sensitivity as low as -141dBm@300bps;

  • Support LoRaWAN ClassA/B/C mode;

  • Support PoE IEEE 802.3 af/at;

  • Support 10/100M Ethernet connection and GPRS/3G/4G connection,switch automatically;

  • Supply with 100m cable via PoE;

  • High reliability industrial device, IP67 device,easy to setup LPWAN network outdoor

  • Quick configuration and maintenance through WiFi;

  • Power supply:DC jack,PoE and internal LiFePO4 battery

  • More than 4hr duration time with backup battery

  • -40℃ to +75℃;

  • 10kA surge protection

  • Water proof level: IP6



Technical Parameters and Specifications

Item Group Item Description
System Configuration Core ARM Cortex-A53
Main Frequency 1.2GHz
RAM 1Gbytes
Flash 4Gbytes eMMC
Communication Wired Network Ethernet 10M/100Mbps
Mobile Cellular GSM/3G/4G Wireless connection
LoRaWAN Long Range Wireless Communication
Electrical Specification Power supply input External DC Jack (default);
PoE +48 Input compatible with IEEE 802.3 af/at;
Internal battery back up available (RHF2S208Bxx only);
Average Power Consumption 5.5W
LoRa Output Power type:14dBm@868MHz;17dBm@470MHz
Max:27dBm
LoRa Sensitivity -141dBm@SF12,BW=125kHz
Sensor Temperature Monitor device internal temperature
User Interface (External) Mobile Cellular 4G Antenna Connect gateway with internet
LoRaWAN Antenna LoRaWAN transceiver, IoT data collection
Ethernet Connect gateway with internet
GPS GPS function
WiFi WiFi accessing
USB USB interface
Power supply Power supply input
User Interface (Internal) Standard SIM Card Slot Support Standard SIM Card (25mm×15mm ×0.8mm)
USB USB bootloader (Device Firmware Upgrade)
UART UART Terminal for debugging
LED400 (Internal) System indicator
LED600 (Internal) Ethernet full/half duplex indicator
LED601 (Internal) Ethernet link status indicator
LED602 (Internal) Ethernet data speed indicator
LED206 (Internal) Charging indicator
LED207 (Internal) Charged indicator
LED500 (Internal) 4G modem
Dimensions Installation Dimensions 210x 200x 85 mm
Weight 2100g (RHF2S208Exx)
2510g (RHF2S208Bxx)
Installation Derrick installation, Fixed on the wall
Operating Range Operational temperature range -40 to +75°C
Storage temperature range -40 to +85°C

Hardware:

CPU: ARM Cortex-A53

Main Frequency: 1.2GHz

Memory: 1Gbytes RAM, 4GB eMMC

Hardware Watchdog

RTC

Internal Temperature Sensor

PoE module;

GPS module;

WiFi module;

Internal battery back up;

LoRaWAN Module x1/x2;

4G Modem (For China version, RHF2S208xxx-434, RHF2S208xxx-470):

FDD LTE: Band 1, Band 3, Band 8, all bands with diversity

TDD LTE: Band 38, Band 39, Band 40, Band 41, all bands with diversity

DC-HSPA+/HSPA+/HSPA/UMTS: Band 1, Band 5, Band 8, Band 9, all bands with diversity

TD-SCDMA: Band 34, Band 39

GSM/GPRS/EDGE: 1800 MHz/900 MHz

4G Modem (For International version, RHF2S208xxx-868, RHF2S208xxx-915):

FDD LTE: Band 1, Band 2, Band 3, Band 4, Band 5, Band 7, Band 8, Band 20, all bands with diversity

WCDMA/HSDPA/HSUPA/HSPA+: Band 1, Band 2, Band 5, Band 8, all bands with diversity

GSM/GPRS/EDGE: 850 MHz/900 MHz/1800 MHz/1900 MHz

Software:

  • Based on Linux Kernal

    • Version: 4.14.34-v7+
  • SPI Driver

  • I2C Driver

  • USB Host/Device Driver

  • LoRaWAN module Driver

  • 4G Modem Driver ( Supports GSM/GPRS/3G/4G communication)

  • GPS driver to support synchronization

  • Ethernet driver

  • WiFi accessing driver;

  • DMA Driver

  • Power and charging Management Driver

  • Temperature Sensor Driver

  • Watch dog

  • RTC;

Bootloader:

  • Support image programming

  • Support USB downloading

  • Support USB booting
