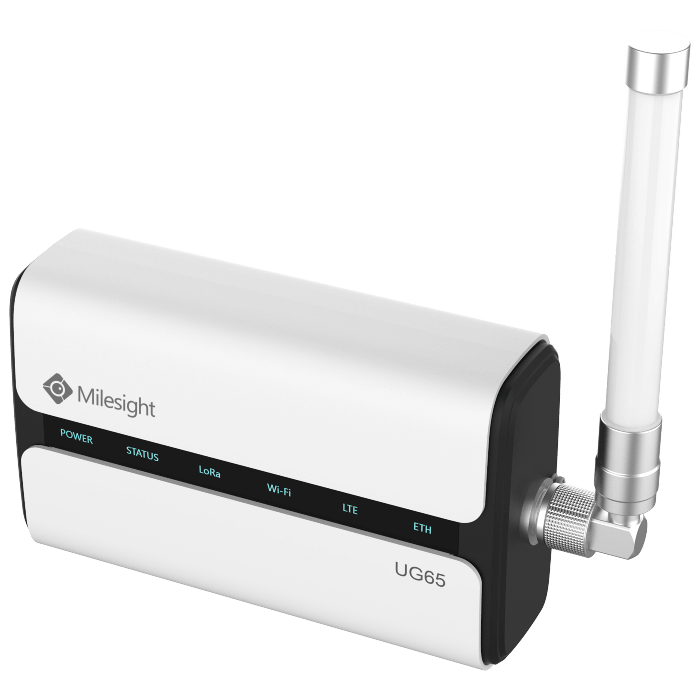

Milesight UG65 Semi-Industrial LoRaWAN Gateway
£354.00
£295.00
In stock
SKU
UG65-868M-EA
Milesight UG65 Semi-Industrial LoRaWAN Gateway for smart farms and smart metering solutions for monitoring wireless LoRaWAN sensors from 3G Mobile CCTV
Milesight UG65 Semi-Industrial LoRaWAN Gateway (standard version)
This version of the UG65 in non Helium compliant.
This is an indoor LoRaWAN Gateway with built-in WEB and Compatible to multiple IOT Cloud Platforms.
-
IP65 rating
-
NXP Quad-Core Processor
-
Semtech SX1302 LoRa Chip
-
Multiple Backhaul Connectivity
-
Embedded Network Server
-
Long-range wireless transmission (15 km in rural areas and 2 km in urban areas)
-
Compatible with Multiple Network Servers
-
Global LoRaWAN® Frequency Plans CN470/IN865/EU868/AU915/US915/KR920/AS923)
-
Support wall mount, desktop, or pole mount
Product Description
Milesight UG65 is an industrial gateway based on LoRaWAN technology. It features Edge and Fog computing capabilities with Python programming, rich serial interface and free embedded NS, available in CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923 global frequency. Our LoRaWAN ecosystem partners include The Things Network (TTN), LORIOT, Ubidots, ChirpStack, IoThink Solutions, Orbiwise, LoRa Alliance and ThingWorx. The UG65 has been distributed to the dozens of regions and deployed in pilot use cases and LPWAN projects.
Quick Details of Milesight UG65 LoRaWAN Gateway
_________________________________________________________________
|
|
UG65 LoRaWAN Gateway |
|||||
|
Hardware |
Processor |
Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
|
|
||
|
Memory |
512 MB DDR4 RAM |
|||||
|
Ingress Protection |
IP65 |
|||||
|
Connectivity |
Frequency Band |
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923 |
||||
|
Channel |
8 |
|||||
|
Wi-Fi |
IEEE 802.11 b/g/n |
|||||
|
Ethernet |
1 x 10/100/1000 Mbps |
|||||
|
Network Server |
Embedded |
Yes |
||||
|
3rd Party's |
TTN, LORIOT, ThingWorx |
|||||
|
Capabilities |
Nodes Connection |
Up to 2000 |
||||
|
Radio Range |
Up to 10 km
Develop Device-to-Cloud Connection
The Milesight IoT Cloud is a comprehensive cloud service provides unparalleled levels of vertical integration with LoRaWAN Gateway to link vertical, back-end applications to remote assets.
Detailed Images
Partners
Success Stories
Specifications
|
Model |
UG65 |
|||
|
Hardware |
||||
|
Processor |
Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
|||
|
Memory |
512 MB DDR4 RAM |
|||
|
Flash |
8 GB eMMC |
|||
|
Software |
||||
|
Network Protocol |
PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
|||
|
VPN Tunnel |
OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN |
|||
|
Connectivity |
|
|
||
|
Ethernet |
1 x 10/100/1000 Mbps |
|||
|
Cellular (optional) |
1 x SIM Slot |
|||
|
Wi-Fi (Optional) |
IEEE 802.11 b/g/n/ac |
|||
|
Console |
1 x Console (RJ45) |
|||
|
GPS + GLONASS |
Yes |
|||
|
LoRaWAN |
||||
|
Channel |
8 |
|||
|
Frequency Band |
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923 |
|||
|
Sensitivity |
-140dBm Sensitivity @292bps |
|||
|
Output Power |
27dBm Max |
|||
|
Protocol |
V1.0 Class A/Class C and V1.0.2 Class A/Class C |
|||
|
Others |
||||
|
Operating Temp |
-40°C to +70°C (-40℉ to +158℉)Reduced Cellular Performance Above 60°C |
|||
|
Storage Temp |
-40°C to +85°C (-40℉ to +185℉) |
|||
|
Relative Humidity |
0% to 95% (non-condensing) at 25°C/77℉ |
|||
|
Ingress Protection |
IP65 |
|||
|
Mounting |
Desktop, Wall or DIN Rail Mounting |
|||
|
Dimensions |
180 x 110 x 56.5 mm |
|||
|
Certifications |
RoHS, CE, FCC
| Manufacturer | Milesight |
|---|
