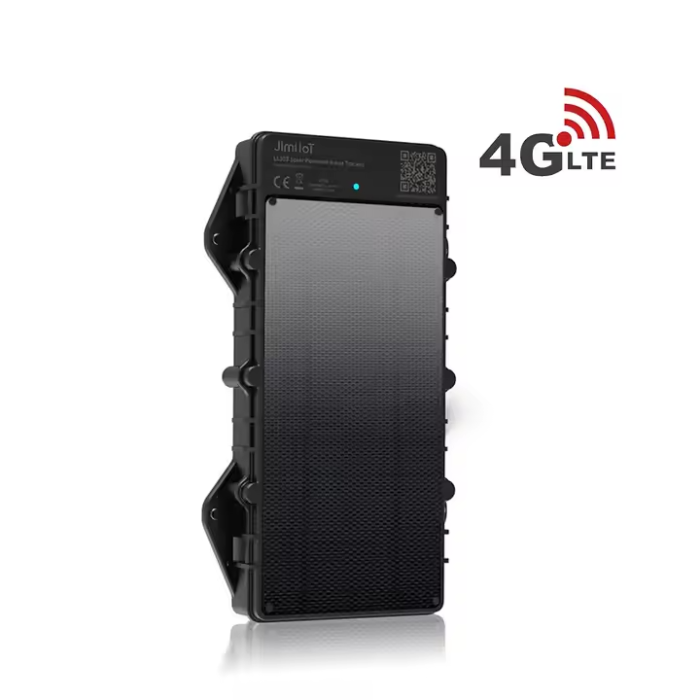

LL303 4G solar powered GPS tracker
£102.00
£85.00
In stock
SKU
LL303
LL303 4G solar powered GPS tracker
The LL303 4G Solar Powered GPS Tracker is a durable, weatherproof tracking device with real-time GPS monitoring, 4G connectivity, and a built-in solar panel for continuous power. Ideal for tracking vehicles, assets, and outdoor equipment.
LL303 4G solar powered GPS tracker
The LL303 4G Solar-Powered GPS Tracker is a robust and versatile tracking solution designed for construction vehicles, vessels, and remote asset management. Featuring a high-efficiency solar panel and a magnetic charging system, it ensures continuous power and long standby time without frequent maintenance. Its IP67 waterproof and dustproof rating makes it ideal for harsh environments, providing reliable performance in extreme weather conditions.
The LL303 supports LTE communication with GSM (2G) fallback, ensuring a stable connection even in low-signal areas. It offers multiple working modes, customizable event-triggered alerts, and compatibility with various peripheral accessories for enhanced tracking capabilities. Whether for fleet management, logistics, or security applications, the LL303 delivers real-time GPS tracking, geofencing, and intelligent reporting to optimize operational efficiency and asset security.
Features:
LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
GPS & BDS & LBS Positioning
A synergy of multiple positioning systems ensures that locations are accurately displayed on the cloud platform.
Solar & Magnetic Charging
Easy charging via the solar panel and magnetic charger.
IP67 Dust & Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
Multiple Alerts
Instant alerts for atypical events such as device removal, abnormal vibration, abnormal temperature & humidity, etc.
Multiple Working Modes
Configurable working modes according to your actual demands.
Bluetooth Accessory Compatibility (Optional)
Various Bluetooth peripheral accessories allow for monitoring fuel consumption, door status, etc.
RFID Reader (Optional)
Access the information of devices via the active RFID.
Specifications:
|
GNSS |
|
|
Positioning system |
GPS+BDS+LBS |
|
Positioning accuracy |
＜2.5m CEP |
|
Tracking sensitivity |
-165dBm |
|
Acquisition sensitivity |
-148dBm |
|
TTFF (open sky) |
Avg. hot start ≤1sec Avg. cold start ≤32sec |
|
Cellular |
|
|
Communication network |
LTE Cat 1/GSM; LTE Cat M1/Cat NB2 |
|
Frequency |
LL303-L LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD: B40 GSM: B2/B3/B5/B8
LL303-E LL303-A |
|
Power |
|
|
Battery |
10,000mAh/3.7V industrial-grade Li-Polymer battery |
|
Solar power |
5V/400mA (Standard Operating Voltage/Current @STC) STC: Direct illumination with 38,000lux halogen lamp on the test bench. |
|
Magnetic charger |
5V/2A |
|
Working modes |
Mode 1: Timing mode Mode 2: Intelligent mode Mode 3: Power-saving mode |
|
Standby time |
Up to 1 year in power-saving mode |
|
Interface |
|
|
LED indication |
Cellular (Green), Power (Red) |
|
SIM |
Nano-SIM |
|
Tamper proof |
Hall effect sensor |
|
Physical specification |
|
|
Dimensions |
200x115x25mm |
|
Weight |
423g |
|
Operating environment |
|
|
Operating temperature |
–20℃ to +70℃ |
|
Operating humidity |
5%～95%, non-condensing |
|
IP rating |
IP67 |
|
Feature |
|
|
Sensors |
Accelerometer, Hall effect sensor |
|
Scenarios |
Low battery alert, Tamper alert, Vibrating Alert |
|
Bluetooth |
BLE 5.0 |
|
RFID |
2.4GHz |
| Manufacturer | Jimilab |
|---|
