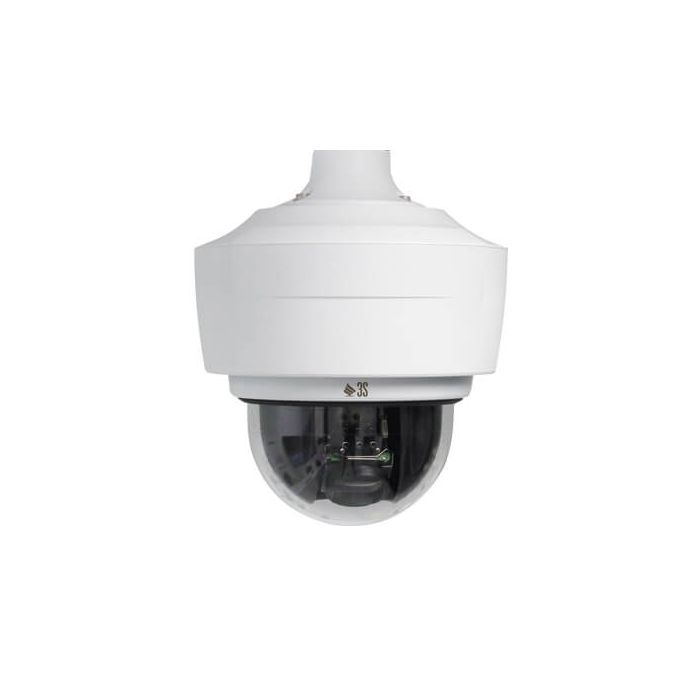

3S Vision N5011 1.3 Megapixel/H.264/720P Real-Time Auto IRIS outdoor speed dome camera

3S Vision N5011 1.3 Megapixel/H.264/720P Real-Time Auto IRIS outdoor speed dome camera

• H.264/MJPEG Dual Codec & Streaming simultaneously
• Auto IRIS
• HD (1280x720@30fps)
• HITACHI 18X in Optical Zoom
• Pan 360°/S, Tilt 100°/S
• Digital I/O for External Sensor and Alarm
• Mechanical ICR
• 2 Way Audio Supported
• Intelligent Video Analytics
• IP67 Weather + IK10 Vandal Proof
• Micro SD Card Supported (SDHC up to 32GB)

Overview:









Specifications:

Camera

Zoom Lens Module	HITACHI DI-SC110N-C
Sensor	1.3 Mega Pixel 1/3”CCD sensor
Scan Method	Progressive
Lens	F1.6（W）,50 IRE,f=4.7~84.6mm (F1.6~F2.8) Minimum visible distance of 0.01m (W) 1.0m (T) Horizontal Viewing Angle: 59.7 ° (W) 3.6 ° (T) video Focus: Auto / Manual (near / far)
Zoom Ratio	18X in Optical Zoom, 12X in Digital Zoom
Number of Effective Pixel (H*V)	1280x720
Minimum Illumination	F1.6（W）,50 IRE
Horizontal Resolution	600TVL
Wide Dynamic Range	On / Off
SNR(max.)	65db
DNR	High / Middle / Low, 3 steps selection
White Balance	Auto / Manual
Gain Control	High / Middle / Low, 3 steps selection
Flicker Control	Off / 50 Hz/60 Hz, 3 steps selection
Backlight Compensation	On / Off
Electronic Shutter	1/4 ~ 1/10000 sec
Panning Coverage	0°~ 360°
Tilting Coverage	-20°~ 90°
Panning/Tilt Speed	Manual: Panning Speed Approx. 0.2°/s ~ 196.8°/s, Tilt Speed Approx. 0.2°/s ~ 98°/s, preset: up to approx. 450°/s
Number of the Preset Positions	256
IRIS Control	Auto / Manual
Exposure Compensation	Auto
Slow Shutter	Auto / Off
Noise Reduction	Yes
Day and Night	IR-Cut Filter Removable (ICR) Auto(Pro. AER+/AER)/Manual, IR-cut On: 0.01 Lx(1/30s),IR-cut Off: 0.001 Lx(1/30s



Video

Video Compression	H.264 (MPEG-4 Part 10/AVC)/MJPEG, Dual codec
Video Framerate	720P@30fps
Resolution	H.264 : 720P(1280x720@30fps) 720x400@30fps 360x192@30fps/192x112@30fps 192x112@30fps MJPEG : 720P(1280x720@15fps) 720x400@15fps 360x192@15fps
Bitrate Control	CBR and VBR, 128kbps ~ 10Mbps
Multi-streams	Triple streaming,Multiple profiles 1920x1080 H.264@30fps / 1280x720 H.264(Sub)@30fps / 1920x1080 MJPEG@15fps
Digital Zoom (PC Side)	1/4X, 1/3X, 1/2X, 1X, 2X, 4X
Image Rotation	Mirror, Flip, Rotate 180°



Intelligent Video

Privacy mask	Yes
Motion detection	Yes
Blind Detection	Yes
OSD	Yes



Audio

2 Way Audio	Audio Line-in, Audio Line-out
Compression	AMR, G.711 @ 64kbps, G.726 @ 32kbps / Configure bit rate



Network

Streaming Protocols	RTSP / RTP / UDP, RTSP / RTP / TCP, RTSP / RTP / sHTTP tunneling, LAN Multicast, Multipart-JPEG
Supported Protocols	IPv4, HTTP, UDP, TCP, ICMP, IGMP, ARP, DHCP, NTP, SMTP, FTP, SAMBA, UPnP, PPPoE, DNS, DDNS, RTSP, RTP, RTCP,ONVIF
Mobile Surveillance	iPhone, iPad, Android, BlackBerry



Storage

External

1 x Micro SD Card



Processors and Memory

CPU	ARM9 SoC
Flash and Memory	32MB NOR flash, 256MB DDRIII



I/O and Connectors

LAN	1x RJ45 Ethernet connector
Audio	1x Audio Line-in , 1x Audio Line-out
Alarm I/O	1x Alarm-in, 1x Alarm-out



Software Compatibility

Browser	Internet Explorer 6.0 or above
Application Software	VMS Application Software
OS supported	Microsoft Windows 2000, XP , Vista, Windows 7



Open API

	CGI commands to control camera
	Media SDK to handle streaming



Power

Power Input	AC24V (Heater) AC24V+PoE 802.3at(Option)
Power Consumption	48W



Operating Environment

Operating temperature	-40°C~ +55°C / -10°C~ +55°C (POE)
Storage temperature	-10°C~ +50°C
Humidity	0% ~ 95% non-condensing



Demension

243mm(Φ)x 316.3mm(H)



Weight

3850g



Certification

CE, FCC Class A, RoHS, IP67, IK10, UL



Warranty

24 months



Dimension Diagram
