Model |
E920 |
Product Type |

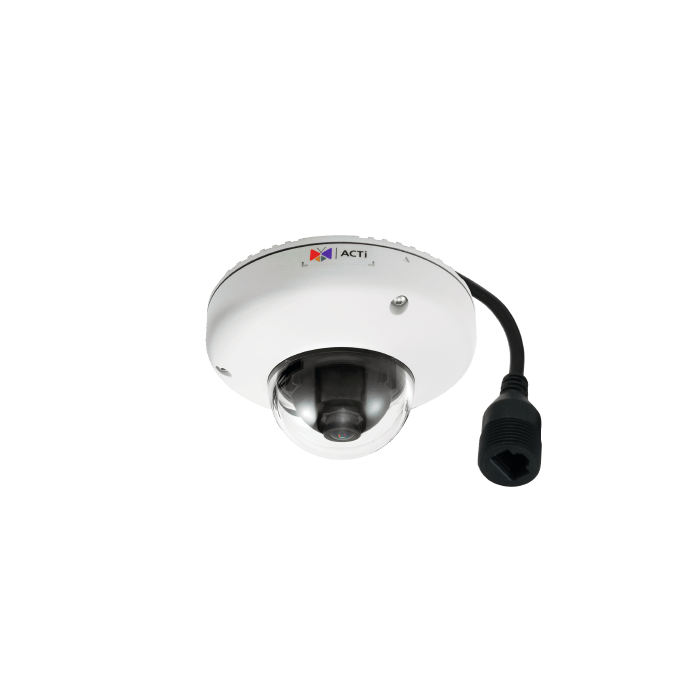

Mini Dome |
Maximum Resolution |
5MP |
Application Environment |
Outdoor |
Image Sensor |
Progressive Scan CMOS |
Day / Night |
No |
Low Light Sensitivity |
Standard |
Minimum Illumination |
Color: 0.1 lux at F2.8 |
Mechanical IR Cut Filter |
No |
IR LED |
No |
Lens |
Fixed focal, f1.9mm / F2.8, Fixed iris, Fixed focus |
Viewing Angle Adjustment |
Pan: ±90°,
Tilt: 0°-90° |
Lens Mount |
Board mount |
Horizontal Viewing Angle |
126.9° (overview area), 77.4° (high detail area) |
Compression |
H.264 (Baseline/ Main/ High profile), MJPEG |
Maximum Frame Rate vs. Resolution |
15 fps at 2592 x 1944
15 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240 |
Horizontal Resolution (TV lines) |
1350 TVL |
Multi-Streaming |
Dual streams |
Video Motion Detection |
3 regions |
Wide Dynamic Range |
Basic WDR (74 dB) |
Digital Noise Reduction |
DNR |
S/N Ratio |
52 dB |
Audio |
1-way (Mic-in, Line-in) |
Network Protocol & Service |
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
Network Connector |
RJ-45 |
Digital Input/Output |
No |
Local Storage |
MicroSDHC/MicroSDXC memory card slot (card not included) |
Power Source |
PoE Class 1 |
Environmental Casing |
Weatherproof (IP68); Vandal proof (IK10); Vibration proof (EN50155) |
Bundled Accessories |
No |
Mount Type |
Surface, Pendant, Wall, Gang Box |
Software Based Analytics (require PC based Smart Search Tool, IVS Server or ALPR Server) |
Face Detection, Motion Detection, Tamper, People Counting, Line crossing, Enter area, Exit area, Appear in area, Missing object, Unattended object, Crowd detection, Forbidden direction, Vehicle Counting, Heat Map, License Plate Recognition, Speed Detection |
GPS Position |
Manual setting |
Client PC Operating System |
Windows 8, Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP |
PC Web Browser |
IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime |
ONVIF Compliant |
Yes (Profile S, Profile G available on new firmware v6.09) |
Starting Temperature |
-20°C ~ 50°C
(-4°F ~ 122°F) |
Operating Temperature |
-20°C ~ 50°C
(-4°F ~ 122°F) |
Approvals |
CE, FCC, IP68, IK10, NEMA 4X, EN50155, UL (for optional PoE injector) |
Warranty |
3 Years |
