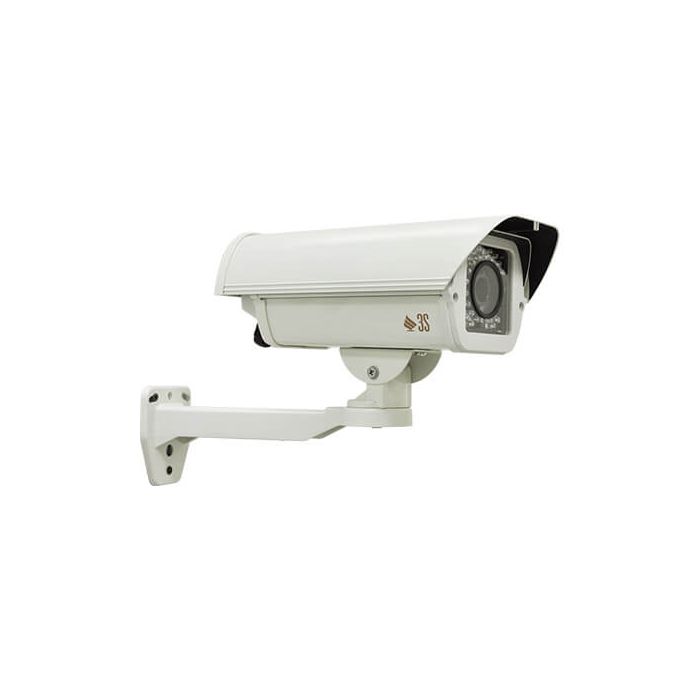

3S Vision N6015 5Megapixel/H.264/1080P Real Time/IR-35M/ Vari-Focal IP bullet camera

3S Vision N6015 5Megapixel/H.264/1080P Real Time/IR-35M/ Vari-Focal IP bullet camera

• 5 Megapixel 1/3” CMOS Sensor in High Resolution
• H.264/MJPEG Dual Codec & Streaming simultaneously
• Auto-IRIS
• Vari-Focal Lens 3-10mm F1.3
• QSXGA (2560x1920@15fps) / 1080P(1920x1080@30fps)
• Digital I/O for External Sensor and Alarm
• Mechanical ICR
• Built-in IR Illuminator
• Digital WDR
• 3D Noise Reduction
• 2 Way Audio Supported
• Intelligent Video Analytics( IVA PLUS )
• IP66 Weather-proof
• PoE Power Over Ethernet IEEE802.3af (Option)
• Micro SD Card Supported (SDHC up to 32GB)

Overview:
















Specification:

Sensor	5 Mega Pixel 1/3” CMOS sensor
Scan Method	Progressive
Lens	Vari-Focal Lens 3.0-10mm F1.3
Number of Effective Pixel (H*V)	2592 x1944
Minimum Illumination	0.1Lux (F1.6, AGC max.)0Lux (IR On)
Horizontal Resolution	1700TVL
Dynamic Range	69db @ 8x gain
SNR(max)	37db
White Balance	Auto
Gain Control	High/Middle/Low, 3 step selection
Wide Dynamic Range	Digital (On/Off)
DNR	On/Off
Electronic Shutter	On/Off
Number of the Preset Positions	16
IRIS Control	Auto
Ficker Control	Off/50Hz/60Hz



IR Illuminators

Wavelength Range	850nm
Distance	35M
Day and Night	IR-Cut Filter Removable (ICR)



Video

Video Compression	H.264 (MPEG-4 Part 10/AVC)/MJPEG, Dual codec
Video Framerate	QSXGA@15fps/1080P@30fps
Resolution	H.264 : QSXGA (2592x1944) mode : 2560x1920/1920x1440/1280x960 640x480/320x240 1080P model : 1920x1080/1280x720/720x400 MJPEG : QSXGA (2592x1944) mode : 2560x1920/1920x1440/1280x960 640x480/320x240 1080P model : 1920x1080/1280x720/720x400
Bitrate Control	CBR and VBR, 128kbps ~ 10Mbps
Multi-streams	Dual streaming,Multiple profiles 1920x1080 H.264@30fps/1280x720 H.264(Sub) @30fps/1920x1080 MJPEG@15fps 2560x1920 H.264@15fps/640x480 H.264(Sub) @15fps/1280x960 MJPEG@15fps
Digital Zoom	Digital
Image Rotation	Mirror



Intelligent Video

De-Noise/Motion Detection/Blind Detection/Privacy Mask Objet Detection/Tracking, Tripwire Detection, Regional Entrance Detection, Abnormal Speed Detection, Reverse Direction Detection, Appearing/Disppearing Detection, Abandon Object Detection, Object Removal Detection, Loitering Detection, Events Counting



Audio

2 Way Audio	Audio Line-in, Audio Line-out
Compression	AMR, G.711 @ 64kbps, G.726 @ 32kbps / Configure bit rate



Network

Streaming Protocols	RTSP / RTP / UDP, RTSP / RTP / TCP, RTSP / RTP / sHTTP tunneling, LAN Multicast, Multipart-JPEG
Supported Protocols	IPv4, IPv6, HTTP, UDP, TCP, ICMP, IGMP, ARP, DHCP, NTP, SMTP, FTP, SAMBA, UPnP, PPPoE, DNS, DDNS, RTSP, RTP, RTCP,ONVIF
Mobile Surveillance	iPhone, iPad, Android, BlackBerry



Storage

External

1 x Micro SD Card (Maximum 32GB)



Processors and Memory

CPU	ARM9 SoC 800MHz
Flash and Memory	32MB NOR flash, 512MB DDRIII



I/O and Connectors

LAN	1x RJ45 Ethernet connector
Audio	1x Audio Line- in, 1x Audio Line-out



Software Compatibility

Browser	Internet Explorer 6.0 or above
Application Software	VMS Application Software
OS supported	Microsoft Windows 2000, XP , Vista, Windows 7



Open API

	CGI commands to control camera
	Media SDK to handle streaming



Power

Power Input	DC12V / DC12V+ PoE (Option)
Power Consumption	0.9A/10.8W



Operating Environment

Operating temperature	-10°C~ 50°C
Storage temperature	-20°C~ 60°C
Storage Humidity	0% ~ 95% non-condensing



Factory Default

Button



Demension

147mm(W) x 115.7mm(H) x 296.8mm(L)



Weight

1360g



Certification

CE, FCC Class A, RoHS, IP66



Warranty

24 months



Dimension Diagram
