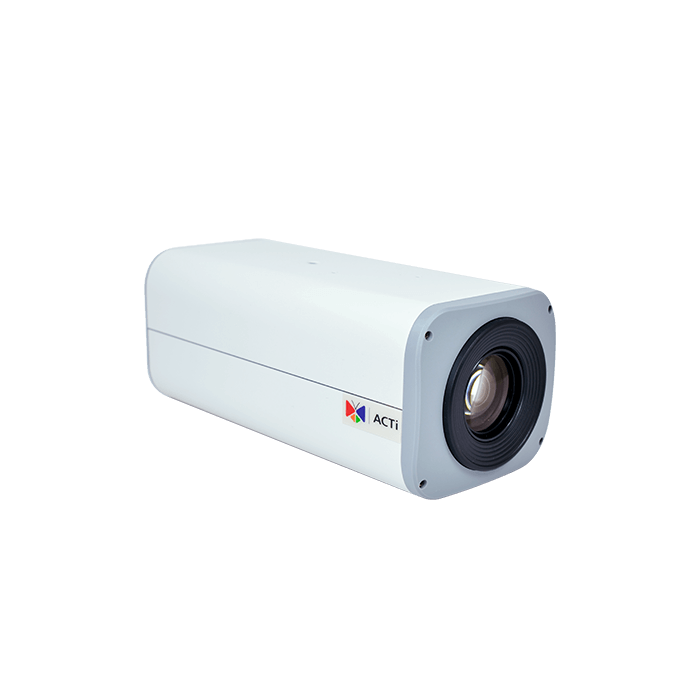

ACTi I24 1MP Zoom Box with D/N, Extreme WDR, ELLS, 30x Zoom lens PoE IP Zoom box camera
SKU
I24
In stock
£662.40
£552.00
Overview
ACTi I24 1MP Zoom Box with D/N, Extreme WDR, ELLS, 30x Zoom lens PoE IP Zoom box camera from 3G Mobile CCTV
Specifications:
Model |
I24 |
Product Type |
Zoom Box |
Maximum Resolution |
1MP |
Application Environment |
Indoor/Outdoor |
Image Sensor |
Progressive Scan CMOS |
Day / Night |
Yes |
Low Light Sensitivity |
Extreme |
Minimum Illumination |
Color: 0.1 lux, B/W: 0.05 lux at F1.6 |
Mechanical IR Cut Filter |
Yes |
IR LED |
No |
Lens |
Zoom, f4.3-129mm / F1.6-5.0, DC iris, Auto focus |
Zoom Ratio |
30x optical, 16x digital |
Zoom Application |
Camera Installation; Auto Zoom by Event; Manual Operation |
Lens Mount |
Board mount |
Horizontal Viewing Angle |
65.6°-2.07° |
Compression |
H.264 (Baseline/ Main/ High profile), MJPEG |
Maximum Frame Rate vs. Resolution |
30 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 640 x 480 15 fps at 320 x 240 |
Horizontal Resolution (TV lines) |
1450 TVL |
Multi-Streaming |
Dual streams |
Video Motion Detection |
3 regions |
Wide Dynamic Range |
Extreme WDR (145 dB) |
Digital Noise Reduction |
2D+3D DNR |
Digital Image Stabilizer |
Digital Image Stabilizer (available with camera firmware v6.08 or newer) |
Defogging |
Defogging |
S/N Ratio |
56 dB |
Audio |
2-way (Line-in, Line-out) |
Network Protocol & Service |
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Visca, Pelco-D, Pelco-P |
Pan, Tilt or Zoom protocol |
Visca, Pelco-D, Pelco-P |
Network Connector |
RJ-45 |
Digital Input/Output |
1/1 |
Serial Port |
RS-485, RS-422 |
Local Storage |
MicroSDHC/MicroSDXC memory card slot (card not included) |
Power Source |
DC 12V; PoE Class 3 |
Environmental Casing |
Optional housing (IP66) |
Bundled Accessories |
No |
Mount Type |
Wall, Ceiling, Corner, Pole |
Software Based Analytics (require PC based Smart Search Tool, IVS Server or ALPR Server) |
Face Detection, Motion Detection, Tamper, People Counting, Line crossing, Enter area, Exit area, Appear in area, Missing object, Unattended object, Crowd detection, Forbidden direction, Vehicle Counting, Heat Map, License Plate Recognition, Speed Detection |
GPS Position |
Manual setting |
Client PC Operating System |
Windows 8, Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP |
PC Web Browser |
IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime |
ONVIF Compliant |
Yes (Profile S, Profile G available on new firmware v6.09) |
Starting Temperature |
-10°C ~ 50°C (14°F ~ 122°F) |
Operating Temperature |
-10°C ~ 50°C (14°F ~ 122°F) |
Approvals |
CE, FCC, UL (for optional PoE injector and power adapter) |
Warranty |
3 Years |
| Lens | Normal lens |
|---|---|
| Manufacturer | ACTi |
