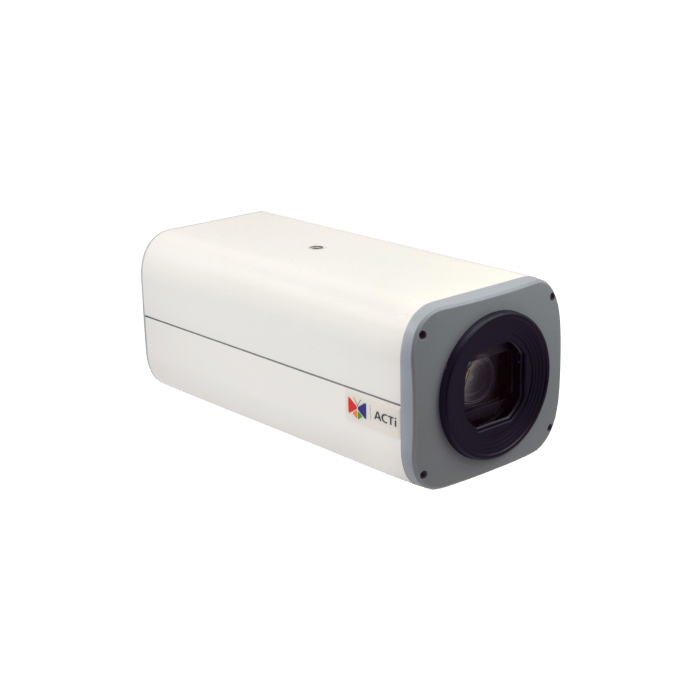

ACTi B210 10MP Zoom Box with D/N, Basic WDR, 10x Zoom lens PoE IP Zoom box camera
SKU
B210
In stock
£644.40
£537.00
Overview
ACTi B210 10MP Zoom Box with D/N, Basic WDR, 10x Zoom lens PoE IP Zoom box camera
Specifications:
Model |
B210 |
Product Type |
Zoom Box |
Maximum Resolution |
10MP |
Application Environment |
Indoor/Outdoor |
Image Sensor |
Progressive Scan CMOS |
Day / Night |
Yes |
Low Light Sensitivity |
Standard |
Minimum Illumination |
Color: 0.1 lux, B/W: 0.05 lux at F2.2 |
Mechanical IR Cut Filter |
Yes |
IR LED |
No |
Lens |
Zoom, f6.3-63mm / F2.2-3.5, P-Iris, Auto focus |
Zoom Ratio |
10x optical |
Zoom Application |
Camera Installation |
Lens Mount |
Board mount |
Horizontal Viewing Angle |
50.6°-4.59° |
Compression |
H.264 (Baseline/ Main/ High profile), MJPEG |
Maximum Frame Rate vs. Resolution |
7 fps at 3648 x 2736 7 fps at 3648 x 2160 7 fps at 2592 x 1944 7 fps at 2048 x 1536 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 640 x 480 15 fps at 320 x 240 |
Horizontal Resolution (TV lines) |
1550 TVL |
Multi-Streaming |
Dual streams |
Video Motion Detection |
3 regions |
Wide Dynamic Range |
Basic WDR (70 dB) |
Digital Noise Reduction |
2D+3D DNR |
S/N Ratio |
52 dB |
Audio |
2-way (Line-in, Line-out) |
Network Protocol & Service |
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
Pan, Tilt or Zoom protocol |
Visca, Pelco-D, Pelco-P |
Network Connector |
RJ-45 |
Digital Input/Output |
1/1 |
Serial Port |
RS-485, RS-422 |
Local Storage |
MicroSDHC/MicroSDXC memory card slot (card not included) |
Power Source |
DC 12V; PoE Class 3 |
Environmental Casing |
Optional housing (IP66) |
Bundled Accessories |
No |
Mount Type |
Wall, Ceiling, Corner, Pole |
Software Based Analytics (require PC based Smart Search Tool, IVS Server or ALPR Server) |
Face Detection, Motion Detection, Tamper, People Counting, Line crossing, Enter area, Exit area, Appear in area, Missing object, Unattended object, Crowd detection, Forbidden direction, Vehicle Counting, Heat Map, License Plate Recognition, Speed Detection |
GPS Position |
Manual setting |
Client PC Operating System |
Windows 8, Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP |
PC Web Browser |
IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime |
ONVIF Compliant |
Yes (Profile S, Profile G available on new firmware v6.09) |
Heater |
Yes |
Fan |
No |
Starting Temperature |
-10°C ~ 50°C (14°F ~ 122°F) within 30 minutes |
Operating Temperature |
-20°C ~ 50°C (-4°F ~ 122°F) |
Approvals |
CE, FCC, UL (for optional PoE injector and power adapter) |
Warranty |
3 Years |
| Lens | Normal lens |
|---|---|
| Manufacturer | ACTi |
