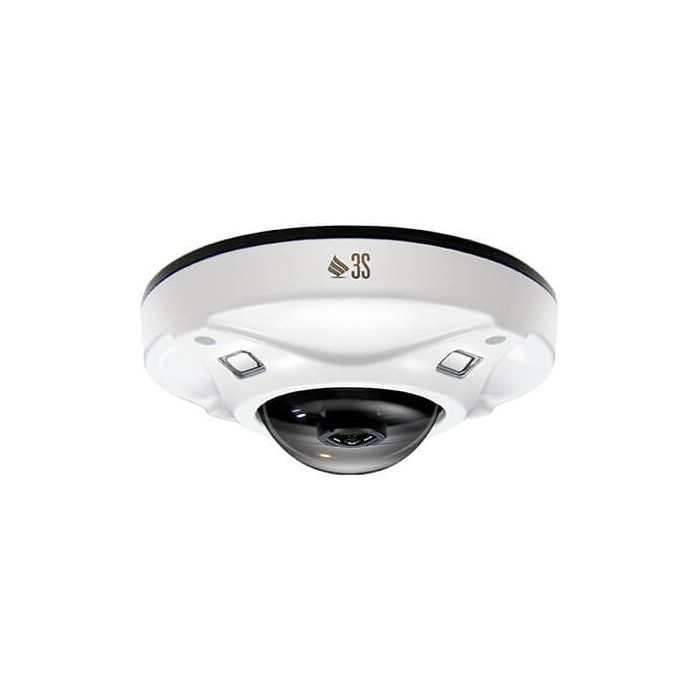

3S Vision N9018 5 Megapixel / 360°Surround View / IP68 Water + IK10 Vandal-proof / EN50155 IR outdoor fisheye camera
SKU
N9018
In stock
£406.80
£339.00
Overview
3S Vision N9018 5 Megapixel / 360°Surround View / IP68 Water + IK10 Vandal-proof / EN50155 IR outdoor fisheye camera from 3G Mobile CCTV
3S Vision N9018 5 Megapixel / 360°Surround View / IP68 Water + IK10 Vandal-proof / EN50155 IR outdoor fisheye camera
- 5Megapixel 1/2.5" CMOS Sensor
- H.264/MJPEG Dual Codec & Streaming simultaneously
- 1080P (1920X1080@30fps)
- 1.19 mm Fisheye Lens for 180° Panoramic View and 360° Surround View
- Mechanical ICR
- IR LED Embedded
- 2 Way Audio Supported
- Intelligent Video Analytics
- Digital WDR
- IP68 Water+ IK10 Vandal Proof / EN50155
- Support ePTZ control
- PoE Power Over Ethernet IEEE802.3af (Option)
- Micro SD Card Supported (SDHC up to 32GB)
Overview:
Specification:
Camera
| Sensor | 5 Mega Pixel 1/2.5” CMOS sensor |
| Scan Method | Progressive |
| Number of Effective Pixel (H*V) | 2592 x1944 |
| Lens | 1.19 mm F2.8 |
| Minimum Illumination | 0.08Lux (IR off) 0 Lux (IR on) |
| Wide Dynamic Range | Digital ( on / off ) |
| Dynamic Range | 67.74db@8xGain |
| SNR(max) | 38.5db |
| DNR | On / Off |
| White Balance | Auto / Cloudy / Daylight / Manual |
| Gain Control | High/Middle/Low, 3 step selection |
| Flicker Control | 50 Hz, 60 Hz |
| Electronic Shutter | Auto |
| Field of View | 180° |
| Panning Coverage | Digital |
| Tilting Coverage | Digital |
IR Illuminators
| Day and Night | IR-Cut Filter Removable (ICR) |
| Wavelength Range | 850nm |
| Distance | Up to 10M |
Video
| Video Compression | H.264 (MPEG-4 Part 10/AVC)/MJPEG, Dual codec |
| Video Framerate | 1920x1080@30fps |
| Resolution | H.264 : 1080P(1920x1080@30fps) 720P(1280x720@30fps) MJPEG : 1080P(1920x1080@30fps) 720P(1280x720@30fps) |
| Bitrate Control | CBR and VBR, 128kbps ~ 10Mbps |
| Multi-streams | Triple streaming,Multiple profiles 1920x1080 H.264@30fps / 1280x720 H.264(Sub)@30fps / 1920x1080 MJPEG@15fps |
| Digital Zoom | Digital |
| Image Rotation | Desktop, Ceiling, wall |
Intelligent Video
| De-Noise / Motion Detection / Blind Detection |
Audio
| 2 Way Audio | Audio Line-in, Audio Line-out |
| Compression | AMR, G.711 @ 64kbps, G.726 @ 32kbps / Configure bit rate |
Network
| Streaming Protocols | RTSP / RTP / UDP, RTSP / RTP / TCP, RTSP / RTP / sHTTP tunneling, LAN Multicast, Multipart-JPEG |
| Supported Protocols | IPv4, IPv6, HTTP, UDP, TCP, ICMP, IGMP, ARP, DHCP, NTP, SMTP, FTP, SAMBA, UPnP, PPPoE, DNS, DDNS, RTSP, RTP, RTCP,ONVIF |
| Mobile Surveillance | iPhone, iPad, Android, BlackBerry |
Storage
| External | 2 x Micro SD Card ( SDHC up to 32GB ) |
Processors and Memory
| CPU | ARM9 SoC 800MHz |
| Flash and Memory | 32MB NOR flash, 256MB DDRIII |
I/O and Connectors
| LAN | 1 x RJ45 Ethernet connector |
| Audio | Audio Line-in, Audio Line-out |
| Factory Default | 1 x Reset Button |
| Alarm I/O | 1 x Alarm-in, 1x Alarm-out |
Software Compatibility
| Browser | Internet Explorer 6.0 or above |
| Application Software | VMS Application Software |
| OS supported | Microsoft Windows 2000, XP , Vista, Windows 7 |
Open API
| CGI commands to control camera | |
| Media SDK to handle streaming |
Power
| Power Input | DC 12V, DC12V/POE (2 pin connect) |
| Power Consumption | 10.8W / 5.6W( IR off ) |
Operating Environment
| Operating temperature | -20°C~ 50°C |
| Storage temperature | -30°C~ 60°C |
| Humidity | 0% ~ 95% non-condensing |
| Factory Default | Button |
| Demension | 145mm(Φ) x 61mm(H) |
| Weight | 700g |
| Certification | CE, FCC Class A, RoHS, IP68, IK10, EN50155 |
| Warranty | 24 months |
| Lens | Normal lens |
|---|---|
| Manufacturer | 3S Vision |
