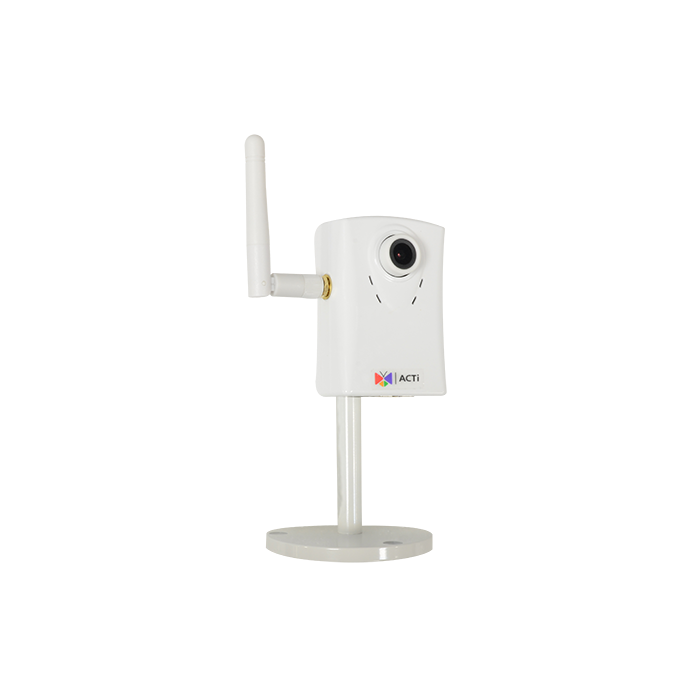

ACTi C11W 1.3MP Wireless Cube with Basic WDR, Fixed Lens
SKU
C11W
In stock
£202.80
£169.00
Overview
ACTi C11W 1.3MP Wireless Cube with Basic WDR, Fixed Lens
ACTi C11W 1.3MP Wireless Cube with Basic WDR, Fixed Lens
1.3MP Wireless Cube with Basic WDR, Fixed lens, f3.6mm/F1.8 (HOV:55°), H.264, 720p/30fps, 2D+3D DNR, Built-in Microphone, MicroSDHC, DC12V
- 1.3 Megapixel
- Fixed Lens with f3.6mm/F1.8
- Basic WDR
- Wi-Fi ((IEEE 802.11b/g/n)
- Event trigger, response and notification
Device
| Product Type | Cube |
| Maximum Resolution | 1.3MP |
| Application Environment | Indoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/4 " |
| Effective Pixels | 1280(H) X 1024(V) (1.31 MP) |
| Day / Night | No |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.5 lux at F1.8 (30 IRE, 2400 K) |
| Mechanical IR Cut Filter | No |
| IR LED | No |
| Horizontal Resolution (TV Lines) | 800 TVL |
| S/N Ratio | 75 dB |
Lens
| Focal Length | Fixed focal, f3.6mm |
| Aperture | F1.8 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 55° |
| Vertical Viewing Angle | 46.5° |
Video
| Compression | H.264 (Main profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 1280 x 1024 30 fps at 1280 x 720 30 fps at 640 x 480 30 fps at 320 x 240 |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Bit Rate | 28Kbps - 6Mbps (per stream) |
| Bit Rate Mode | Constant, Variable |
| Wide Dynamic Range | Basic WDR (75 dB) |
| Image Enhancement | White Balance, Brightness, Contrast, Sharpness, Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| On-Screen Graphics (Picture Overlay) | Yes |
| Built-in Analytics | Tampering Detection |
| Server-based Analytics | Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Image Orientation | Flip, Mirror |
Audio
| Audio Type | 2-way, Built-in Microphone, Line-out |
| Audio Compression | 8 kHz, Mono, G.711 |
Network
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP |
| Ethernet Port | 1 x RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, Anonymous login |
Event
| Event Trigger | Video motion detection (3 regions), Sound detection, Tampering detection |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Save video to local storage, Upload snapshot to FTP server |
System
| Watchdog | Support |
Integration
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| GPS Position | Manual setting |
| Edge Recording | Support (integration with NVR by ONVIF Profile G or proprietary protocol)* |
| ONVIF Compliant | Yes, Profile S, Profile G |
| Web Browser | IE 11 |
Interface
| Wireless | Wi-Fi (IEEE 802.11b/g/n) |
| Local Storage | MicroSDHC Memory Card Slot (card not included, up to 128GB, Kingston or Sandisk only) |
| Operating Button | Reset Button |
General
| Power Source | DC 12V |
| Power Consumption | 8 W (DC) |
| Weight | 73g (0.161lb) |
| Dimensions | (W x H x D): 74.5mm x 52.6mm x 33.6mm (2.9" x 2.18" x 1.3") |
| Bundled Accessories | Bracket, Power Adapter |
| Mount Type | Bracket |
| Starting Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 20% - 80% RH |
| Approvals | CE Class A, FCC Class A, Efficiency Level VI |
| Real-time Clock (RTC) | No |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
| Comments | * Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series. |
Photo Indication
- Power Input
- Ethernet Port
- Audio Output
- Built-in Microphone
- Antenna
- Memory Card Slot
- Reset Button
Dimension Diagram
Unit: mm [inch]
| Megapixels | 1MP |
|---|---|
| Lens | Normal lens |
| Manufacturer | ACTi |
