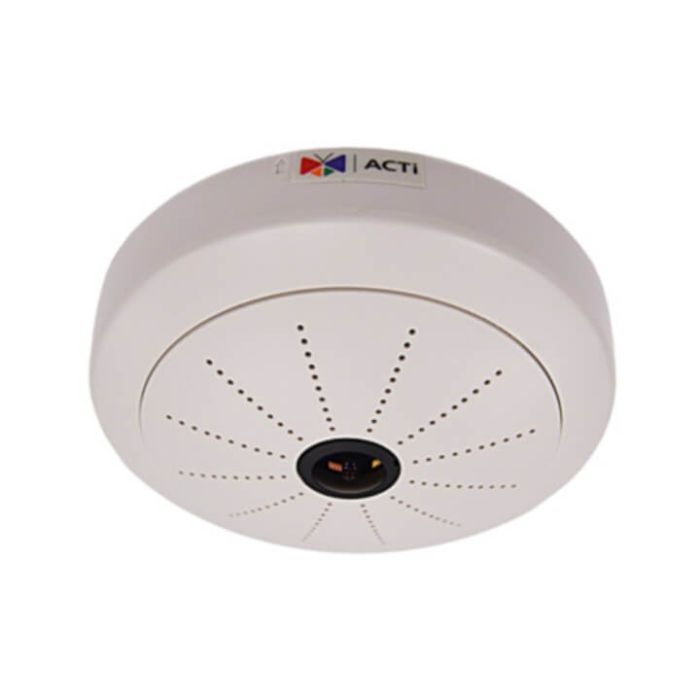

ACTi KCM-3911 4MP Indoor Hemispheric with D/N, Advanced WDR, SLLS, Fisheye lens PoE IP camera
SKU
KCM-3911
In stock
£667.20
£556.00
Overview
ACTi KCM-3911 4MP Indoor Hemispheric with D/N, Advanced WDR, SLLS, Fisheye lens PoE IP camera
ACTi KCM-3911 4MP Indoor Hemispheric with D/N, Advanced WDR, SLLS, Fisheye lens PoE IP camera
Product Description
Key Features:
- 1/2.5" progressive scan CMOS
- Day and night function with mechanicl IR cut filter
- Minimum illumination 0.06 lux at F2.8
- 180°/360° panorama and ePTZ view
- Built in f1.05mm/F2.8 megapixel fisheye lens
- 6fps at 2032 x 1920 resolution
- Selectable H.264, MPEG-4 SP, MJPEG compressions with dual streaming
- Up to 6 cropped regions as independant channels
- Two-way audio
- Video motion detection
- SDR (Superior Dynamic Range)
- 2D+3D digital noise reduction
- Powered by PoE Class 3/DV 12V
- 1/2.5" progressive scan CMOS
- Day and night function with mechanicl IR cut filter
- Minimum illumination 0.06 lux at F2.8
- 180°/360° panorama and ePTZ view
- Built in f1.05mm/F2.8 megapixel fisheye lens
- 6fps at 2032 x 1920 resolution
- Selectable H.264, MPEG-4 SP, MJPEG compressions with dual streaming
- Up to 6 cropped regions as independant channels
- Two-way audio
- Video motion detection
- SDR (Superior Dynamic Range)
- 2D+3D digital noise reduction
- Powered by PoE Class 3/DV 12V
Additional Information
|
Model
|
KCM-3911 |
|
Product Type
|
Hemispheric Dome |
|
Maximum Resolution
|
4MP |
|
Application Environment
|
Indoor |
|
Image Sensor
|
Progressive Scan CMOS |
|
Day / Night
|
Yes |
|
Low Light Sensitivity
|
Superior |
|
Minimum Illumination
|
Color: 1.63 lux, B/W: 0.06 lux at F2.8 |
|
Mechanical IR Cut Filter
|
Yes |
|
IR LED
|
No |
|
Lens
|
Fisheye, 1.05mm / F2.8, Fixed iris, Fixed focus |
|
Lens Mount
|
Board mount |
|
Horizontal Viewing Angle
|
180° |
|
Compression
|
H.264 (Baseline profile), MPEG-4 SP, MJPEG |
|
Maximum Frame Rate vs. Resolution
|
6 fps at 2032 x 1920 12 fps at 1920 x 1080 12 fps at 1280 x 720 12 fps at 640 x 480 |
|
View Mode
|
Fisheye View; Dewarped View: 180° / 360° Panorama, ePTZ, 6 VGA, Motion Detection Preset |
|
Multi-Streaming
|
Dual streams |
|
Video Motion Detection
|
3 regions |
|
Wide Dynamic Range
|
Advanced WDR (80 dB) |
|
Digital Noise Reduction
|
2D+3D DNR |
|
Defogging
|
Defogging |
|
Audio
|
2-way (Line-in, Line-out) |
|
Network Protocol & Service
|
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
|
Pan, Tilt or Zoom protocol
|
Visca |
|
Network Connector
|
RJ-45 |
|
Digital Input/Output
|
2/2 |
|
Local Storage
|
MicroSDHC memory card slot (card not included) |
|
Power Source
|
DC 12V; PoE Class 3 |
|
Environmental Casing
|
No |
|
Bundled Accessories
|
No |
|
Mount Type
|
Surface (via mount plate), Pendant, Wall, Corner, Pole, Flush |
|
Software Based Analytics (require PC based Smart Search Tool, IVS Server or ALPR Server)
|
Face Detection, Motion Detection, Tamper, People Counting, Line crossing, Enter area, Exit area, Appear in area, Missing object, Unattended object, Crowd detection, Forbidden direction, Vehicle Counting, Heat Map, License Plate Recognition, Speed Detection |
|
Client PC Operating System
|
Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP |
|
PC Web Browser
|
IE 8, IE 9 |
|
ONVIF Compliant
|
Yes (Profile S) |
|
Starting Temperature
|
-10°C ~ 50°C (14°F ~ 122°F) |
|
Operating Temperature
|
-10°C ~ 50°C (14°F ~ 122°F) |
|
Approvals
|
CE, FCC, UL (for optional PoE injector and power adapter) |
|
Warranty
|
3 Years |
| Lens | Normal lens |
|---|---|
| Manufacturer | ACTi |
