ACTi E45A 1MP Bullet Camera with D/N, IR, Superior WDR and a Vari-focal Lens
SKU
E45A
In stock
£342.00
£285.00
Overview

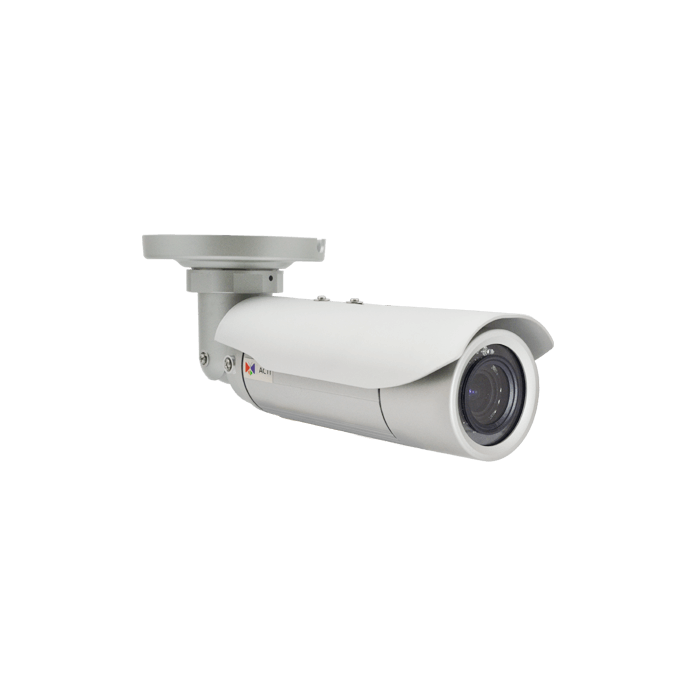

ACTi E45A 1MP Bullet Camera with D/N, IR, Superior WDR and a Vari-focal Lens
ACTi E45A 1MP Bullet Camera with D/N, IR, Superior WDR and a Vari-focal Lens
| 1MP Bullet with D/N, Adaptive IR, Superior WDR, Vari-focal lens | |
|
Key Specifications |
|
|
|
| Model | E45A |
| Product Type | Bullet |
| Maximum Resolution | 1MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Day / Night | Yes |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.1 lux, B/W: 0 lux (IR LED on) at F1.4 |
| Mechanical IR Cut Filter | Yes |
| IR LED | Yes, Adaptive IR (IR Exposure Compensation) |
| IR Working Distance | 30m |
| Lens | Vari-focal, f2.8-12mm / F1.4, Fixed iris, Manual focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 70.5°-28.8° |
| Compression | H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 640 x 480 15 fps at 320 x 240 |
| Horizontal Resolution (TV lines) | 1250 TVL |
| Multi-Streaming | Dual streams |
| Video Motion Detection | 3 regions |
| Wide Dynamic Range | Superior WDR (110 dB) |
| Digital Noise Reduction | DNR |
| S/N Ratio | 52 dB |
| Audio | 2-way (Line-in, Line-out) |
| Network Protocol & Service | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Network Connector | RJ-45 |
| Digital Input/Output | 1/1 |
| Local Storage | MicroSDHC/MicroSDXC memory card slot (card not included) |
| Power Source | PoE Class 2 |
| Environmental Casing | Weatherproof (IP68); Vandal proof metal casing (IK10) |
| Bundled Accessories | Integrated Bracket |
| Mount Type | Wall, Ceiling, Pole, Gang Box |
| Software Based Analytics (require PC based Smart Search Tool, IVS Server or ALPR Server) | Face Detection, Motion Detection, Tamper, People Counting, Line crossing, Enter area, Exit area, Appear in area, Missing object, Unattended object, Crowd detection, Forbidden direction, Vehicle Counting, Heat Map, License Plate Recognition, Speed Detection |
| GPS Position | Manual setting |
| Client PC Operating System | Windows 8, Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP |
| PC Web Browser | IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime |
| ONVIF Compliant | Yes |
| Starting Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Operating Temperature | -40°C ~ 50°C (-40°F ~ 122°F) |
| Approvals | CE, FCC, IP68, IK10 (metal casing), UL (for optional PoE injector) |
| Warranty | 3 Years |
| Lens | Normal lens |
|---|---|
| Manufacturer | ACTi |
