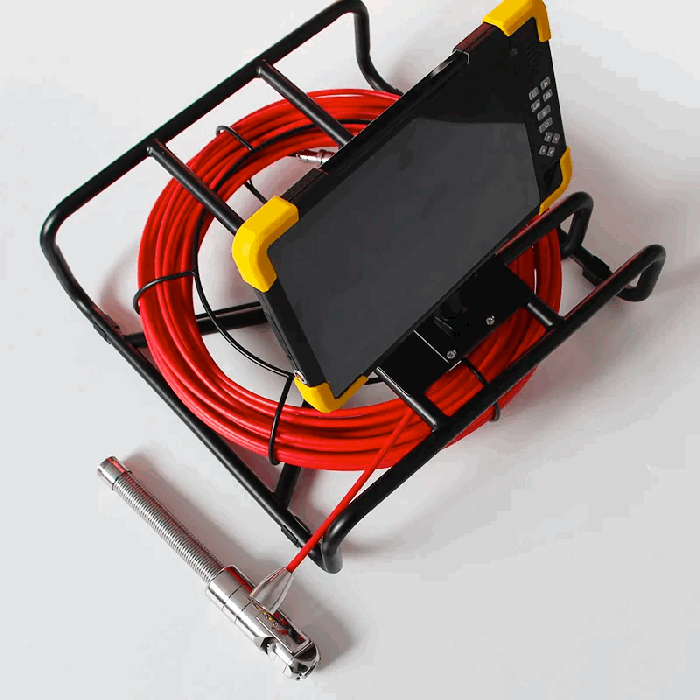

PD160-360 5MP 4K 10inch 360 Rotation Pan Tilt Pushrod Pipeline Sewer Plumbing Inspection Camera System
SKU
PD160-360
In stock
£2,842.80
£2,369.00
Overview
PD160-360 5MP 4K 10inch 360 Rotation Pan Tilt Pushrod Pipeline Sewer Plumbing Inspection Camera System
PD160-360 5MP 4K 10inch 360 Rotation Pan Tilt Pushrod Pipeline Sewer Plumbing Inspection Camera System
5MP 4K 10inch 360 Rotation Pan Tilt Pushrod Pipeline Sewer Plumbing Inspection Camera System
5MP 360 PAN TILT Drain Camera System
*5MP Sony Sensor Resolution:2560*1944px
*View angle:120°view angle
*Light source: 12 LED, brightness is adjustable via monitor *39mm diameter, total length with spring:280mm
*Cable Reel Material: Stainless steel, with brake
*Cable material: Glass fiber, 30m, Diameter:7.2mm
*Monitor bracket: Removeable from the cable reel
* Yellow colors removable Rubber Corner protectors
*10.1 inch touch screen resolution:1280*800pix, IP66
Video input:HD 4K,2K,1080P,720P, 480P AHD,CVBS video input Video Output: HDMI 1080P
Support 4K,2K recording;12MP photo and photo notes.
Support 10 times zoom, image flip, inner keyboard to edit photos, playback, file lock with password
Video compression format: H.265
Max Storage: up to 256GB TF card, default 64GB
Compressed video and audio are synchronous
2*6200mAh exchangeable and removable Li-battery
Support 12 Voltage power output for camera
WiFi Wireless transmission and view on mobile, via APP
Model: PD160-360
(cable length default 30m)
Description of push rod pipe sewer camera system
PD160-360 PTZ Pipe Inspection Camera is a professional sewer camera system that was designed for Contractors and Plumbers to work smarter, get the job done faster, and provide a higher resolution display screen for viewing pipes. 3rd Eye is the brand you can trust for your daily operations to fulfill your client’s obligations with it’s advanced sewer camera inspection system used for inspecting many of today’s industries, environments and applications that include Residential Plumbing, Municipal Collection Systems, Industrial Pipelines, and other Commercial Applications.
30M Pushrod cable 1080P AHD Plumbing Sewer Drill hole Inspection Camera System
Selling points:
360 degree rotation 5MP Drain Camera System with Meter counter, Inner Keyboard for notes
*5MP Sony Sensor Resolution:2560*1944px
*View angle:120°view angle
*Light source: 12 LED, brightness is adjustable via monitor
*39mm diameter camera with 2 skids, total length with spring:280mm
*Cable Reel Material: Stainless steel, with brake and meter counter
*Cable material:Glass fiber, 20m, Diameter:7.5mm
10.1inch touch screen monitor
*Monitor bracket: Removeable from the cable reel
*4colors removeable Rubber Corner protectors
*10.1 inch touch screen resolution:1280*800pix,IP66
Video input:HD 4K,2K,1080P,720P, 480P AHD,CVBS video input
Video Output: HDMI 1080P
Support 4K,2K recording;12MP photo and photo notes.
Support 10 times zoom,image flip,inner keyboard to edit photos, playback, file lock with password
Video compression format:H.265
Max Storage: up to 256GB TF card,default 64GB
Compressed video and audio are synchronous
2*6200mAh exchangeable and removeable Li-battery
Support 12 Voltage power output for camera
WiFi Wireless transmission and view on mobile,via APP
Cable Reel
*Cable Reel Material: Stainless steel, with brake
*Cable material:Glass fiber, 30m, Diameter:7.5mm
*Monitor bracket: Removeable from the cable reel
Specification of PTZ pipe camera system:
|
Camera |
Effective resolution | 5.0 Mega Pixel, 2560*1440px |
| Video output format | AHD | |
| Video Frane Rate | PAL: 1080P@25FPS, NTSC:1080P@30fps | |
| Camera Dimension | ø39mm total length with spring: 133mm |
|
| Light source | 12 LED | |
| Camera Housing | 316L stainless steel, sapphire glass | |
| Lens View angle | 120° | |
| Light source | 12 LEDS | |
| Brightness of the LEDS | Controllable via monitor | |
| Cable | Length | 10--40m(optional) |
| Material | Glass fiber cable | |
| Diameter | 7.2mm | |
| Cable Reel | Size | L*W*H=42*42*20cm |
| Brake | With Brake | |
| Recording Monitor | Display | 10.1 inch |
| Screen Resolution | 1280*800 px | |
| Touch screen | capacitive touch | |
| Video recording | 2K(4:3): 2560x1944@25 /30fps | |
| 2K(16:9): 2560x1440@25 /30fps | ||
| Video input | AHD | |
| Video format | MP4 | |
| Photo | 12MP,8MP,4MP,2MP (JPG) | |
| Video Output | HDMI 1080P | |
| Compression mode | H. 265 video compression | |
| Audio input/output | 1.0Vp-p (20Hz-20KHz) | |
| Speaker Output | 1W | |
| Camera LED Control | PWN | |
| File System Support | FAT32 | |
| Memory card | TF card 2GB-256GB | |
| Language | China, English, South Korea, Russia, German, French, Ukrainianetc |
|
| Voltage | DC :12V USB DC:5V | |
| WiFi Protocol | 802.11 a/b | |
| WiFi Channel | 2.4000-2.4835Ghz | |
| WiFi power | <16dBm | |
| Power Supply | DC 12V 2.5A | |
| Lithium battery capacity | 6500mAh( 48Wh) | |
| Maximum charging power | 15W | |
| working hours | 6-8 Hours | |
| Operating temperature | -20℃ to 50℃ | |
| Waterproof grade | IP65 | |
| Size | L*W*H 30*19*1.8CM | |
| Weight | 870g | |
| Package | Monitor with ABS plastic suitcase |
Total size after packing:47*45.5*30cm, G.W:13KG |
| Lens | Normal lens |
|---|---|
| Manufacturer | 3G Mobile |
