IFS50 5 inch monitor and 2MP stainless steel camera inspection system
SKU
IFS50
In stock
£234.00
£195.00
Overview
The IFS50 5 inch monitor and 2MP stainless steel camera with 20 meter cable inspection system is the perfect low cost inspection camera system for chimneys and chimneys
IFS50 5 inch monitor and 2MP stainless steel camera inspection system
The IFS50 5 inch monitor and 2MP stainless steel camera with 20 meter cable is the perfect low cost inspection camera system for chimneys and chimneys.
2MP HD-TVI stainless steel sony camera,LED 8-grade brightness control,no audio
4 types cameras with 4pin connector for option:
camera Diamension A: 160° 9 LED, ø 24*53mm B: 90 ° 9 LED, ø 24*63mm
C: 160 °12LED, ø 29.5*57mm D: 90 ° 12LED, ø 29.5*67mm 0.0001Lux@F1.2 ensures clear image under water
Camera waterproof rate: IP68 The camera can withstand 100m waterpressure ( 1MPa )
Cold-resistant, waterproof and pull-resistant black cable.
5 inch TFT color monitor 800*480 pixel . with sunvisor
Record resolution: HD-TVI 1920*1080P, AVI format
Support 4 times Zoom recording;
Max 128GB TF card supported. Default 64GB card
4500mAh li-battery built in the monitor lasts 4 hours working time cable cost : 1-150m, 1USD/M ø3.5mm
Simple paper packaging
please choose which type camera with how long cable you need.
The IFS50 5 inch monitor and 2MP stainless steel camera with 20 meter cable is the perfect low cost inspection camera system for chimneys and chimneys.
2MP HD-TVI stainless steel sony camera,LED 8-grade brightness control,no audio
4 types cameras with 4pin connector for option:
camera Diamension A: 160° 9 LED, ø 24*53mm B: 90 ° 9 LED, ø 24*63mm
C: 160 °12LED, ø 29.5*57mm D: 90 ° 12LED, ø 29.5*67mm 0.0001Lux@F1.2 ensures clear image under water
Camera waterproof rate: IP68 The camera can withstand 100m waterpressure ( 1MPa )
Cold-resistant, waterproof and pull-resistant black cable.
5 inch TFT color monitor 800*480 pixel . with sunvisor
Record resolution: HD-TVI 1920*1080P, AVI format
Support 4 times Zoom recording;
Max 128GB TF card supported. Default 64GB card
4500mAh li-battery built in the monitor lasts 4 hours working time cable cost : 1-150m, 1USD/M ø3.5mm
Simple paper packaging
please choose which type camera with how long cable you need.

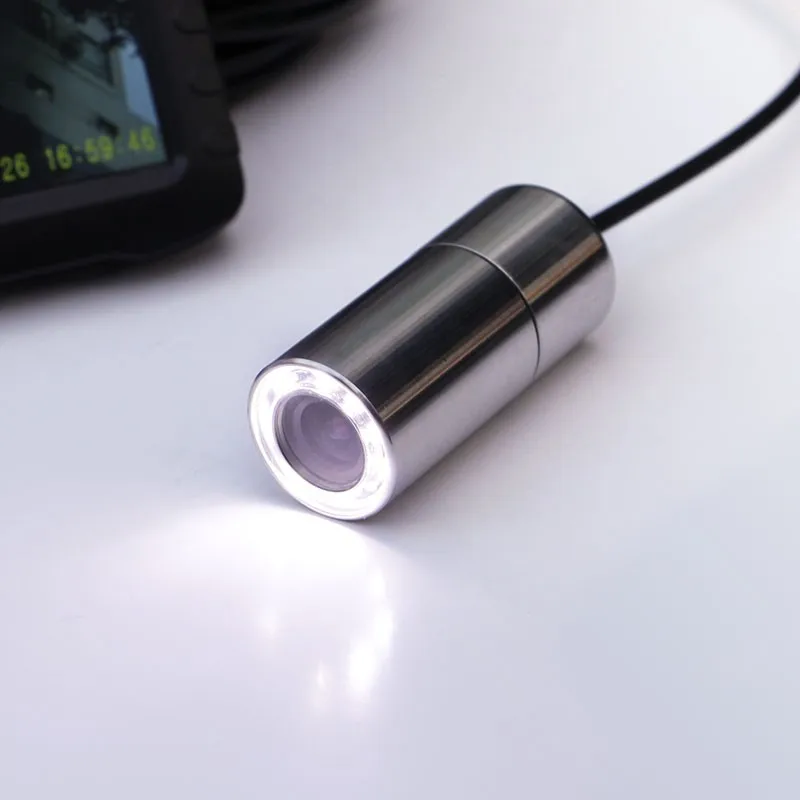

This stainless camera system is designed for borehole/manhole downview and inspection with following features:
* 2MP HD-TVI stainless steel sony camera,LED on/off controlled,no audio
Camera head: 90 ° 12 LED, ø 32*55mm
* 0.0001Lux @F1.2 ensures clear image in dark pipeline, hole.
* Camera waterproof rate: IP68
* Default 20m cold-resistant, waterproof and pull-resistant black cable.
* 5 inch TFT color monitor 800*480 pixel. Buttons at the top w/o sunvisor
* Record resolution: HD-TVI 1920*1080P, AVI format
* DVR supports 4 times Zoom recording* Support up to 128GB
* 4500mAh li-battery built in the monitor lasts 6 hours working time
* Default cable lenth:20m ø3.5mm
* Simple paper packaging
Inspection Camera |
||
| Image Sensor | 2MP SONY Image Sensor | |
| Lens View angle | 90°(160°) | |
| Light source | 8/12 pcs LED, IR850/IR940nm | |
| Min. Illumination | 0.0001Lux/F1.2 | |
| Waterproof rate | IP68 | |
| Lens | 3.6mm F1.2 (H ) | |
| Video Frane Rate | PAL: 1080p@25fps | NTSC: 1080p@30fps |
| Camera Dimension |
A: 90 ° 12 LED, ø 30*55mm 90g
B: 90 ° 8LED, ø 25*57mm 102g
C: 160 ° 12LED, ø 29.5*57mm 145g |
|
| Cable | Cold-resistant, waterproof and pull-resistant Cable length 20M | |
DVR Monitor |
||
| Size of the screen | 5inch LCD screen/7inch LCD screen | |
| Brightness | 350cd/m2 | |
| Resolution | 800*480 pixel/1024*600 pixel | |
| Video Compress | H.264 | |
| Video storage format | AVI | |
| Picture format | 2GB-128GB TF | |
| Operating System | Windows & Mac OS | |
| Port | USB 2.0/AV-OUT | |
| Language | Multiple | |
| Power Supply | DC 5-12V/2A | |
| Battery | 4500mAh working time >=5 hours / 7500mAh working time >=5 hours | |
| Size | 5inch：130mm x86mm x 20mm/7inch：175mm x122mm x 20mm | |
| Weight | 5inch: 223g/7inch: 365g | |
| Megapixels | 2MP |
|---|---|
| Manufacturer | 3G Mobile |
