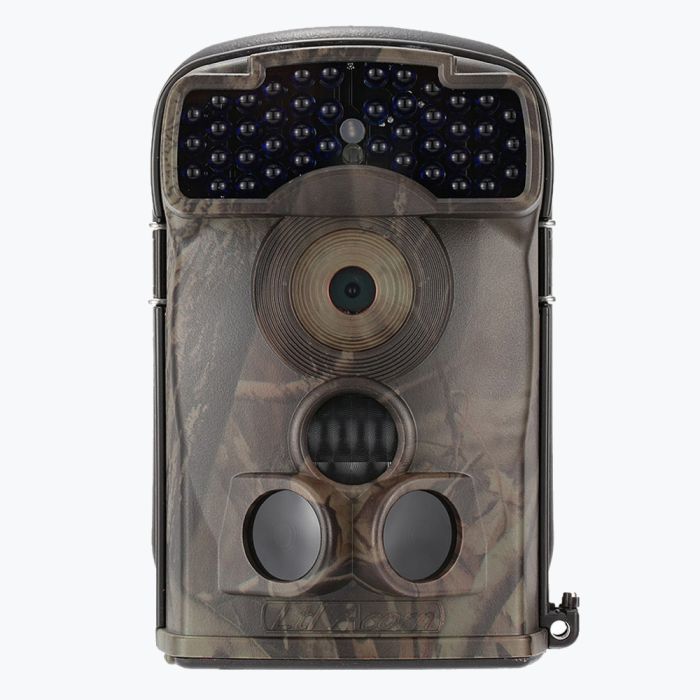

LTL Acorn LTL-5610A 14MP with 940NM LED Trail Security Camera
SKU
LTL-5610A
In stock
£118.80
£99.00
Overview
LTL Acorn LTL-5610A 14MP with 940NM LED Trail Security Camera
The Ltl-5610 series has some improved features of the Ltl-5310 model with higher resolution 14MP camera and improved battery life due the cameras larger capacity offering a longer standby time.
LTL Acorn LTL-5610A 14MP with 940NM LED Trail Security Camera
The LTL Acorn 5610 Series (Model Ltl-5610A and Ltl-5310MG) is the third generation of our Ltl acorn scouting camera. The Ltl-5610 series has some improved features of the Ltl-5310 model with higher resolution 14MP camera and improved battery life due the cameras larger capacity offering a longer standby time. With its highly sensitive Passive Infra-Red (PIR) sensor the camera detects the sudden change of ambient temperature caused by moving game in a region of interest (ROI), triggers to take pictures/videos, and sends the images via GSM network to the user cell phone or email account. With newly added SMS remote control feature you can change the related menu of the camera by sending SMS order to the camera in the specific form of the SMS content
Camera models: (With the same housing)
|
Model |
Function |
|
LTL-5610A |
Basic model |
|
LTL-5610WA |
Basic model, wide angle |
|
LTL-5610MG |
With GPRS/MMS/SMTP module |
|
LTL-5210MWG |
With MMS/GPRS Function, wide angle |
Hunting Trail Scouting Camera Features:
The Main Features
- 5M/14MP picture resolution.
- 1920x1080/ 1280x720/ 640x480/ 320x240 video resolution.
- Excellent quality of audio record.
- 44pcs LEDs improve the quality of night picture and video.
- Ltl-5610WA wide angle lens camera with a field of view of 100 degree.
- For Ltl-5610A non-wide angle lens camera, infrared night vision LEDs 850nm flash range is as far as 18m, low-glow 940nm 13.5m.
- “Cam+Video” mode takes both picture and video at every trigger.
- Extremely long in-field battery life (in standby mode, up to 6 months with 12 AA batteries).
- Side PIR sensors and main PIR sensor from a 100°angle of induction range, to activate the camera in advance and gets ready to shoot, this split-second process could be short as 0.2 seconds.
- Perform in the most extreme temperatures from -49°(-45℃) to 158°(70℃).
- Compact size. Well designed to deploy covertly.
- 0.8 seconds trigger time.
- Turn on programmable Time-Lapse, camera would take pictures/ videos as per the time setting. It is useful to observe plants growth and monitor parking area.
- When timer setting is turned on, camera could be programmable to work in specified period every day. This feature can be used together with Time Lapse feature to meet your timetable.
- Convenient to be mounted on trunk or tripod.
- Serial number would be helpful for users to identify the location of picture from where it was taken.
- Build-in 2.36” TFT LCD colour display to review images and videos.
- Date, time, temperature, moon phase and battery level could be stamped on picture.
- Lockable and password protected.
- Setup is a snap. Just run the user-friendly software on the enclosed CD to set the parameters on the computer, or set on camera directly.
- With Serial No. on, the picture/ video name would be started with Serial No., makes pictures easy to be classified.
Product Technical Specification:
|
Model |
Parameters |
Ltl-5610A |
|
Image Sensor |
5 Mega Pixels Colour CMOS |
Yes |
|
Lens |
FOV=55°; ; Auto IR-Cut |
Yes |
|
FOV=100°; ; Auto IR-Cut |
N/A |
|
|
IR Flash |
850nm LED |
30meters |
|
940nm LED (black flash) |
18meters |
|
|
LCD Screen |
2.36" TFT LCCD; 16.7M Colour |
Yes |
|
Picture Size |
12MP (4000X3000) 5MP (2560X1920) |
Yes |
|
Video Size |
1920x1080(15fps); 1280x720(30fps); 640x480(30fps); 320x240(30fps). With audio record. |
Yes |
|
PIR Sensing Distance |
20 meters (Below 77°F / 25°C at the Normal level) |
Yes |
|
Prep PIR Sensing Angle |
Left and right light beams form an angle of 100°; Each lens covers 10° |
Yes |
|
Main PIR Sensing Angle |
35° |
Yes |
|
Operation Mode |
Day/Night |
Yes |
|
Trigger Interval |
0 Sec ~ 60 Mins; Programmable |
Yes |
|
Camera + Video |
First take photo then video. |
Yes |
|
Playback Zoom In |
1~4 Times |
Yes |
|
Time Stamp |
On/Off; Including serial No., temperature, moon phase, day and time. |
Yes |
|
Timer1 |
On/Off; Programmable; Accuracy error≤10s |
Yes |
|
Timer2 |
On/Off; Programmable; Accuracy error≤10s |
Yes |
|
Device Serial No. |
4 digits and/or alphabets (0~9, A~Z); Turn on the serial No. setting, the picture/ video name would start with serial No., makes the file easy to be classified. |
Yes |
|
Power Supply |
4 x AA; Expandable to 12 x AA (With additional battery box) |
Yes |
|
External DC Power Supply |
Plug Size: 4.0mmx1.7mm 6 ~ 12V (2 ~ 1A) |
Yes |
|
Stand-by Current |
0.4mA |
Yes |
|
Stand-by Time |
3~6 Months (4 x AA~12 x AA) |
Yes |
|
Power Consumption |
150mA (+650mA with 850nm LED lights on); 150mA (+700mA with 940nm LED lights on); |
Yes |
|
Interface |
TV Out; Micro USB; SD Card Slot; 6V DC External |
Yes |
|
Operation Temperature |
-49°F (-45°C) ~ 158°F (70°C) |
Yes |
|
Operation Humidity |
5% ~ 95% |
Yes |
|
Certificate |
FCC & CE & RoHS |
Yes |
| Megapixels | 14MP |
|---|---|
| Lens | Normal lens |
| Trail cameras | No wireless |
| Manufacturer | LTL Acorn |
