CWT5005 4G / GSM RTU GSM Gate Opener 2DI, 2DO, SMS control
£94.80
£79.00
In stock
SKU
CWT5005-2
The CWT5005 4G RTU GSM Gate Opener is a versatile remote control and monitoring device with 2 digital inputs (DI) and 2 digital outputs (DO). It enables SMS control from 4G mobile devices, making it ideal for remote access, industrial automation, and mobile CCTV integration. Perfect for gate control, security systems, environmental monitoring, and industrial applications, it ensures reliable real-time monitoring and remote operation.
CWT5005 4G RTU GSM Gate Opener 2DI, 2DO, SMS control
The CWT5005 RTU is a reliable remote terminal unit designed for industrial automation and remote monitoring applications. Featuring 2 digital inputs (DI) and 2 digital outputs (DO) with a standard electrical interface, it seamlessly connects to various industrial equipment such as PLCs, meters, sensors, and electrical switches. This RTU efficiently monitors real-time system status and data, enabling seamless remote control and communication with a central computer or mobile devices via SMS. Ideal for industries like industrial automation, base station/computer room monitoring, environmental monitoring, water management, power industries, and agriculture, the CWT5005 RTU ensures precise data acquisition, process management, and remote equipment control for enhanced operational efficiency.
Basic Features
● Can add 10 user numbers to receive sms alarm and remote manage
● Inside rechargeable battery, 8 hours life

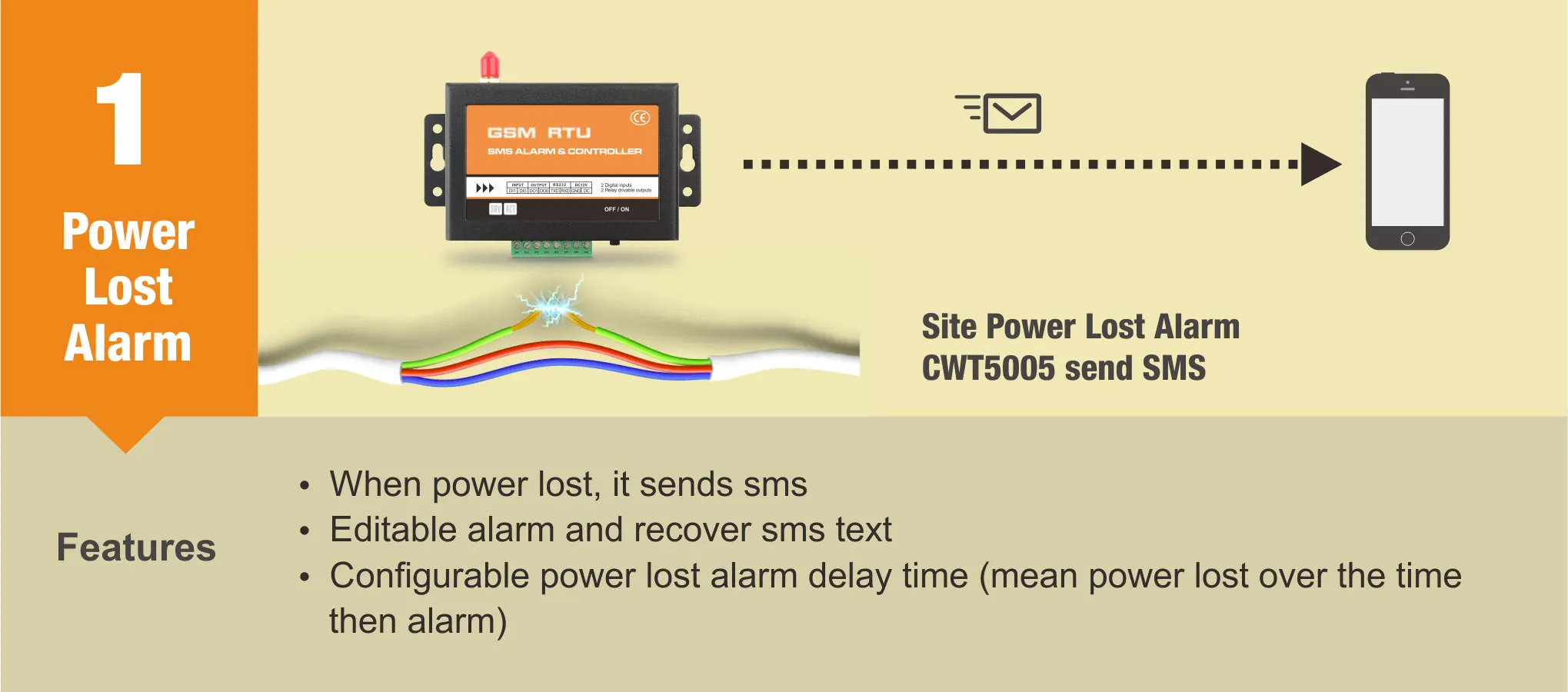

● Power loss and recovery sms alarm

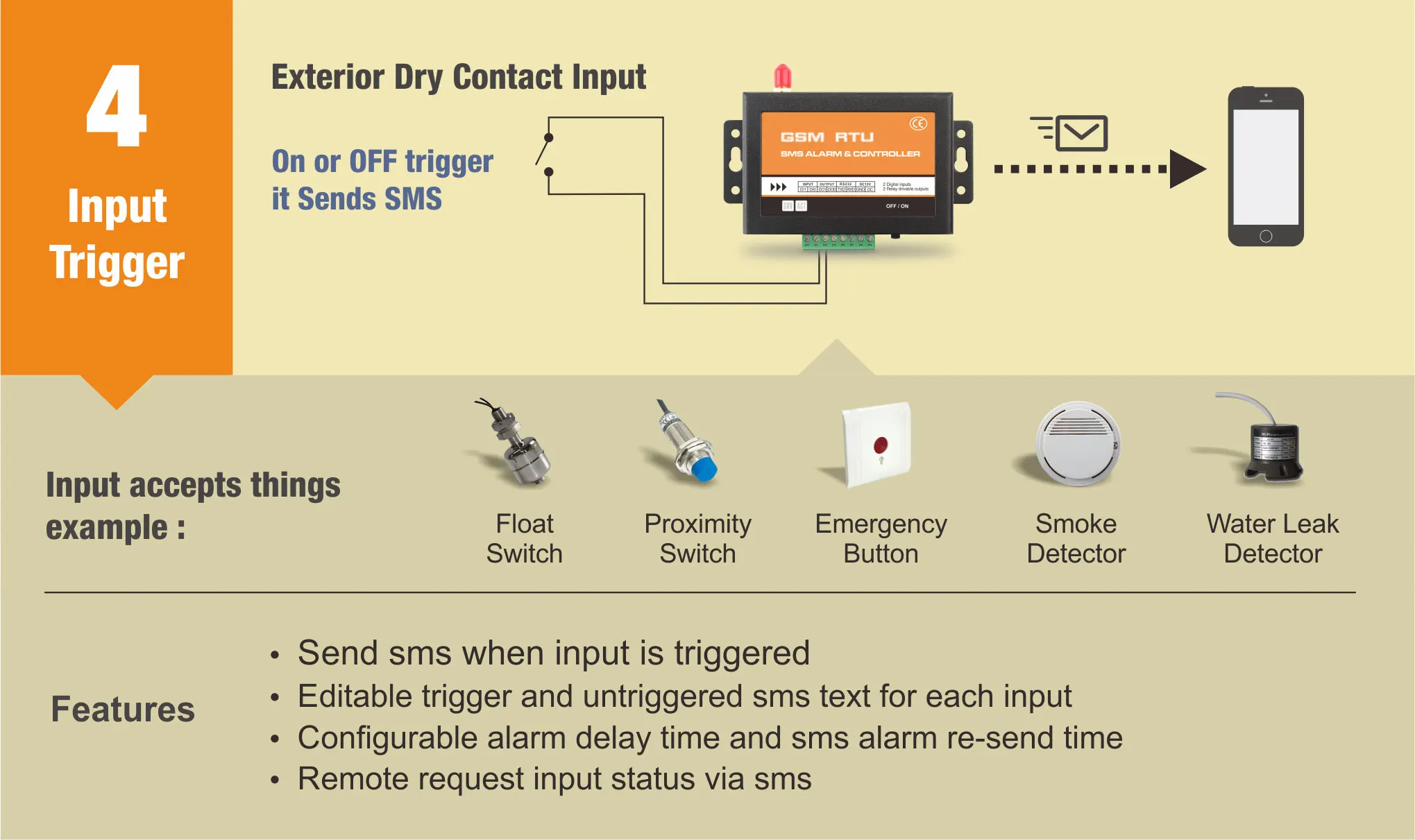

● 2 digital inputs (dry contact) can be triggered to send sms

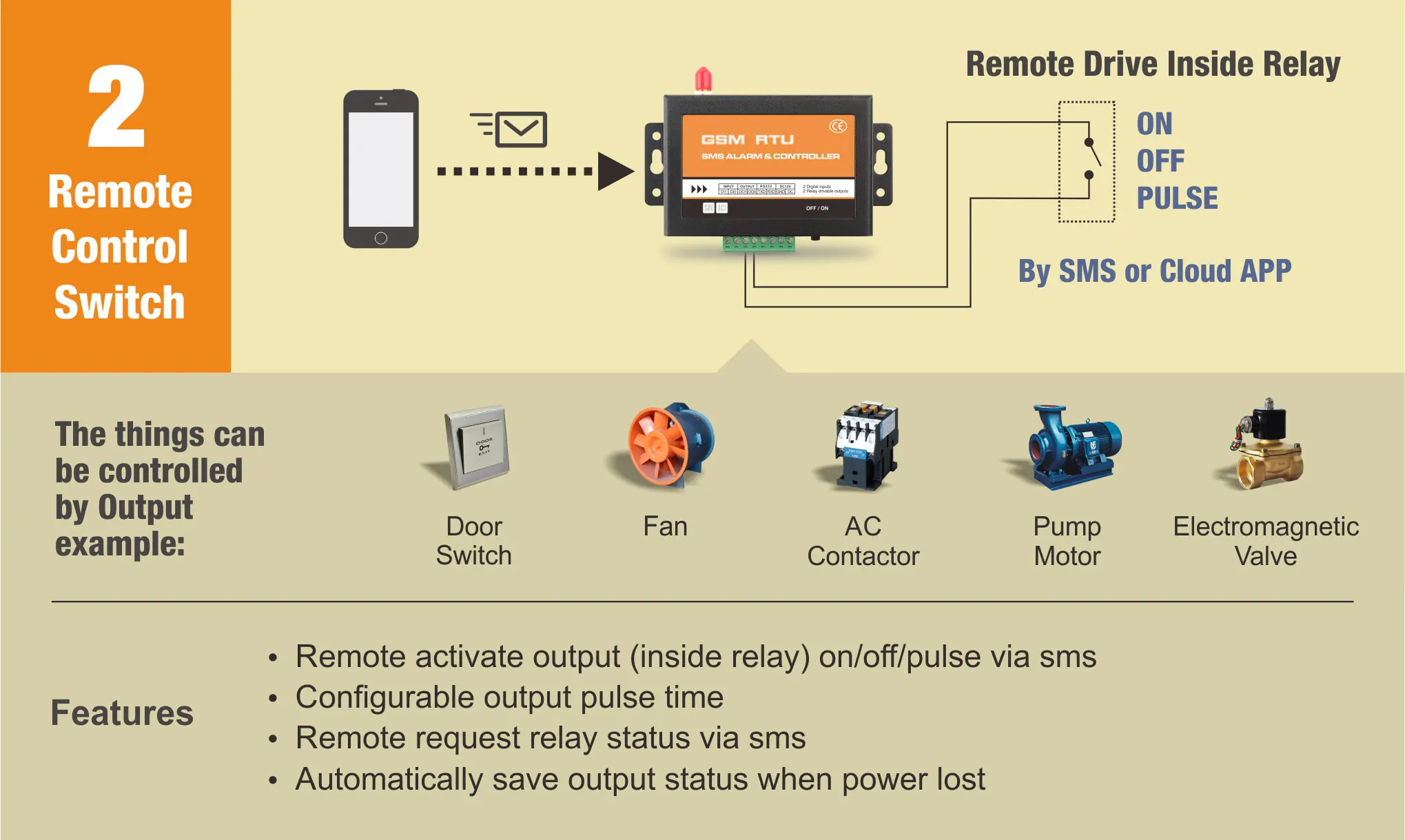

● relay output can be remotely activated(on/off/pulse) by sms
● 1 transistor output can activate external siren, relay, etc
● Remote update configuration by sms
● Provide free cloud service, manage devices in the website and APP
● Reliable performance with built-in double watchdog, 24×7 operation
Specifications
|
Core
|
MCU
|
Cortex M3 32-bit ARM
|
|
Power
|
Power supply
|
9-28V DC (Standard adapter: DC 12V/1.5A)
|
|
Consumption
|
12V input Max. 150mA/Average 50mA
|
|
|
Network
|
Wireless Network
|
Default: GSM/GPRS (4 band 850/900/1800/1900Mhz)
Option: WCDMA (3G), FDD LTE(4G) |
|
IO channel
|
Digital input(DI)
|
2 channels, Dry contact trigger
|
|
Digital output(DO)
|
1 relay output (NO, Contact load : 5A / 250VAC, 30VDC)
1 Transistor output (drive voltage=power supply voltage, Drive current≤500mA |
|
|
Config port
|
USB
|
Mini USB
|
|
Other interface
|
SIM/UIM
|
Standard user card interface
|
|
Antenna
|
Standard SMA female interface (50Ω)
|
|
|
Others
|
Battery
|
Optional lithium-polymer, 500mAh/3.7V，life:8-20 hours
|
|
Working
Environment |
temperature
|
-30℃～+70℃
|
|
humidity
|
5～95%(non-condensing)
|
|
|
Physical
|
Terminals
|
1×8pin 3.81mm spacing, pluggable
|
|
Housing
|
Providing IP30 protection
|
|
|
Dimension
|

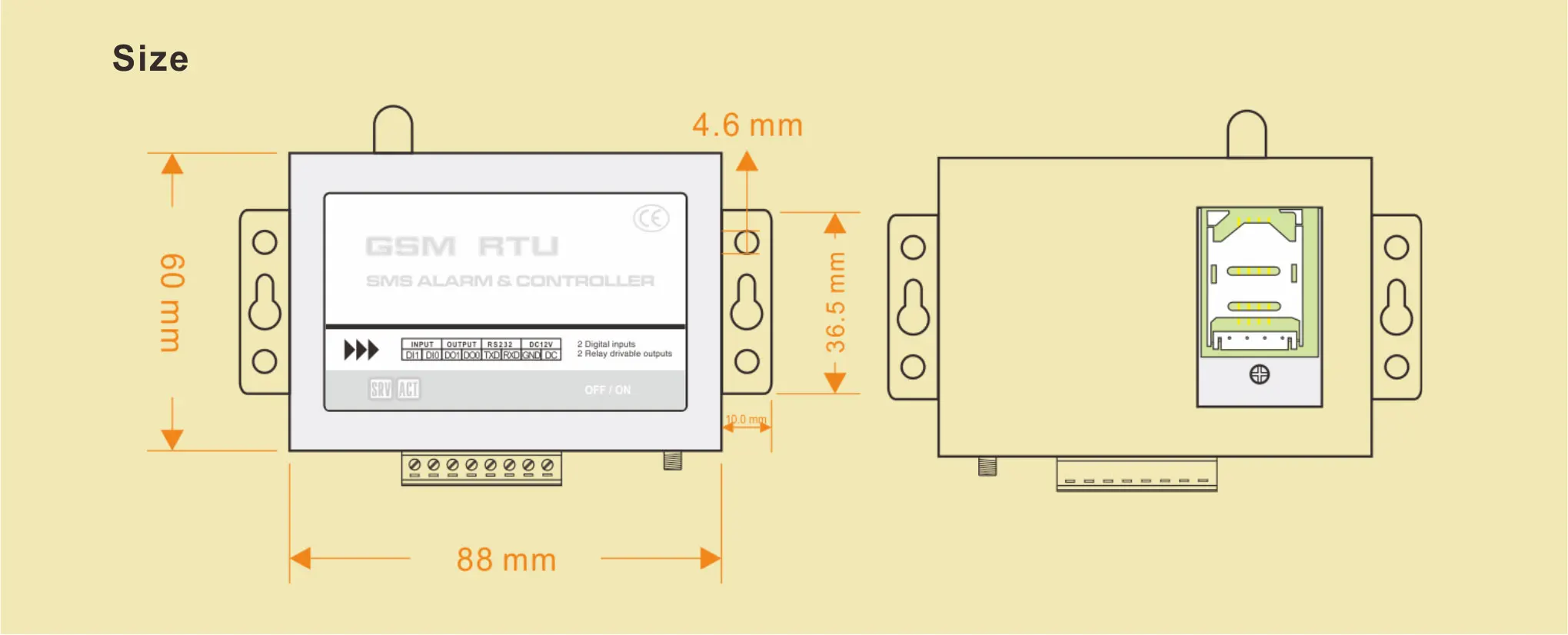

88×60×25mm
|
|
|
Weight
|
150G
|
| Manufacturer | 3G Mobile |
|---|
