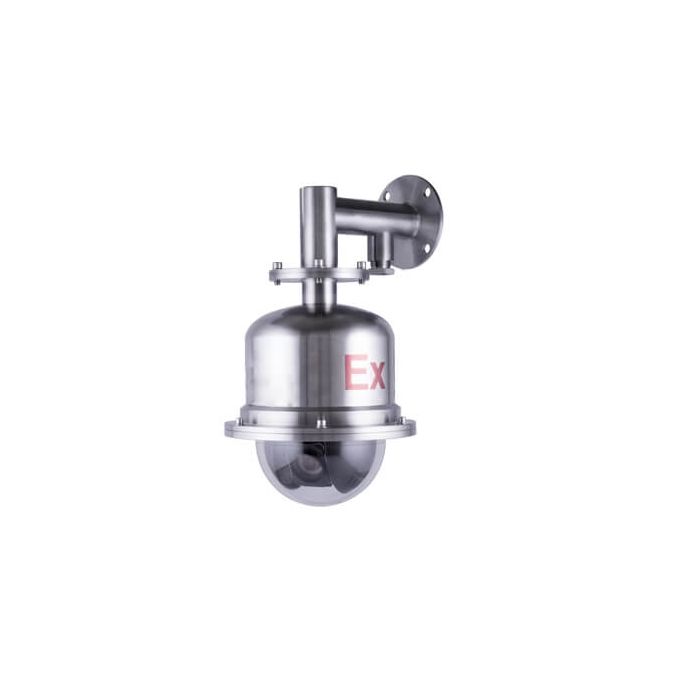

KX-EX2000PSY220 2.0MP 20x zoom IP explosion proof PTZ 6" speed dome camera with wiper
SKU
KX-EX2000PSY220
In stock
£2,520.00
£2,100.00
Overview
KX-EX2000PSY220 2.0MP 20x zoom IP explosion proof PTZ 6" speed dome camera with wiper ATEX Ex-proof certified from 3G Mobile CCTV
KX-EX2000PSY220 2.0MP 20x zoom IP explosion proof PTZ 6" speed dome camera with wiper
● Made of 304 stainless steel material. apply to strong corrosive environment
● Bottom cover adopt Polycarbonate aerial material. excellent corrosion resistance.
● Well design for Explosion-proof, anti-corrosion, waterproof , suitablefor indoor and outdoor environment
● Adopt High resolution image sensor ,up to 1920×1080 .
● Imported precision motor, Response sensitivity, stable operation, lowaccuracy, no jitter under any speed
● Browser support IE7+,Chrome18+,Firefox5.0+,Safari5.02
And Multiple language script
● IP66，Built-in surge arrester, anti-electricity surge< TVS 4000V.
● Support power over ethernettechnology (（802.3at）
● Support Auto- White balance/DNR/BLC.,20 x Optical times, 16 x digital times
Minimal illumination: Color ：0.05Lux @ (F1.6，AGC ON)BW ：0.01Lux @(F1.6，AGC ON)
Support 3D-DNR, Wide dynamic function.
● Support administrator/ operator/ normal User level setting, Up to 32 userspermissions ，Security Measures: | User authentication (ID and PW), host
authentication (MAC address)
● Support video compression : H.264/MJPEG ; Audio compression :G.711/G.726 , Video output : 720p / 1080p
● Support net protocols ;IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE, Bonjour.
● Built in Micro SD card slot, support SD/SDHC/SDXC Micro card (maximumsupport 64G), support manual / alarm video recording
● Auto- Alarm linkage, Preset, patrol , pattern,recording ,relay output, upload center ,unloadFIP ,Email linkage
● Audio anomaly detection, motion detecting, video occlusions, Internetcable broken, IP address conflict, the memory full, memory fault, illegal access
Specifications:
| Product | Ex-Level | ATEX II 2G Ex d IIC T6 Gb II 2D Ex tb IIIC IP66 T80℃ Db |
| Ingress Protection level | IP66，Built-in surge arrester , anti-electricity surge< TVS 4000V. | |
| Camera | imaging sensor | 1/2.8″Progressive Scan CMOS |
| Effective pixels | 223 million pixels | |
| horizontal resolution | ≥1000TVL | |
| minimal illumination | Color ：0.05Lux @ (F1.6，AGC ON) | |
| BW ：0.01Lux @(F1.6，AGC ON) | ||
| White balance | Auto/ manual / ATW / Outdoor / indoor fluorescent lamp / lamp / white balance white balance | |
| Gain control | Auto/ manual | |
| DNR | support | |
| SNR | ＞ 52dB | |
| BLC | support | |
| Wide dynamic | support | |
| electronic shutter | 1-1/10,000s | |
| Day/Night | ICR auto-switch Color /BW | |
| Digital zoom | 16 times | |
| Privacy covering | 2s area can be set | |
| Focused mode | Auto / semi auto / manual | |
| Lens | focal distance | 4.7-94mm, 20times optical |
| Digital zoom | 16x | |
| Zoom speed | About 3s( optional , Wide-Tele) | |
| horizontal viewing angle | 58.3-3.2°(Wide-Tele) | |
| Min-working distance | 10-1000mm(Wide-Tele) | |
| Aperture range | F1.6-F3.5 | |
| function | Horizontal Range | 360° |
| Horizontal Speed | Horizontal rotation speed：0.1°-250°/s, rotation speed can be set | |
| Horizontal preset rotation speed ：300°/s | ||
| Vertical range : | -5°-90° | |
| Vertical speed : | Vertical rotation speed：0.1°-150°/s, rotation speed can be set | |
| Verticalpreset rotation speed：200°/s | ||
| Proportional zoom | support | |
| preset monitoring locations | 300 | |
| Automatic scanning | 8scanning paths, each cruise path can set 32 monitoring locations | |
| Automatic cruise | 4 scanning paths, each paths records time more 10 minutes | |
| Power cutoff memory | support | |
| Unattended Operating function | executive directive automatically | |
| PTZ position display | On/off | |
| Net | Max image size | 1920×1080 |
| Main Stream | 50Hz:25fps(1920×1080)、25fps(1280×720) | |
| 60Hz:30fps(1920×1080)、30fps(1280×720) | ||
| Sub Stream | 50Hz:25fps(704×576)、25fps(352×288)、25fps(320×240) | |
| 60Hz:30fps(704×480)、30fps(352×240)、30fps(320×240) | ||
| Video compression | H.264/MJPEG | |
| Audio compression | G.711/G.726 | |
| SVC | support | |
| ROI code | Support 2 area , levels can be adjustable | |
| Net protocols | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP, | |
| DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour | ||
| Preview video | Up to 20 uers | |
| User permissions | Up to 32 uers ，administrator/ operator/ Normal User | |
| security mode | Security Measures: | User authentication (ID and PW), host authentication (MAC address) | |
| system integration | Alarm input | 2 (0-5vDC)（optional） |
| Alarm output | 1 (optional ） | |
| Alarm linkage | Preset, patrol , pattern,recording ,relay output, upload center ,unload FIP ,Email linkage | |
| intelligent alarm | Audio anomaly detection, motion detecting, video occlusions, Internet cable broken, IP address conflict, the memory full, memory fault, illegal access |
|
| SD card interface | Built in Micro SD card slot, support SD/SDHC/SDXC Micro card (maximum support 64G), support manual / alarm video recording |
|
| Browser | Support IE7+,Chrome18+,Firefox5.0+,Safari5.02+ Multiple language script | |
| Other specification | Temputure range | -40℃～60℃ |
| Relative humidity | ≤ 95%（+25°C） | |
| Atmospheric pressure | 80kpa～106 kpa | |
| Material | 304 stainless steel(316, 316L for optional) | |
| Camera housing covering | bottom cover adopt Polycarbonate transparent Material | |
| Supply voltage | AC24V 2A | |
| External dimensions | 400mm*228mm*265mm | |
| Inlet hole specifications | G-3/4″x 1 | |
| Electrical connections | 10- core composite cable | |
| Installation method | Wall Hanging dyadic , fixed bracket , Pillar base |
| Megapixels | 2MP |
|---|---|
| Lens | Normal lens |
| Manufacturer | 3G Mobile |
