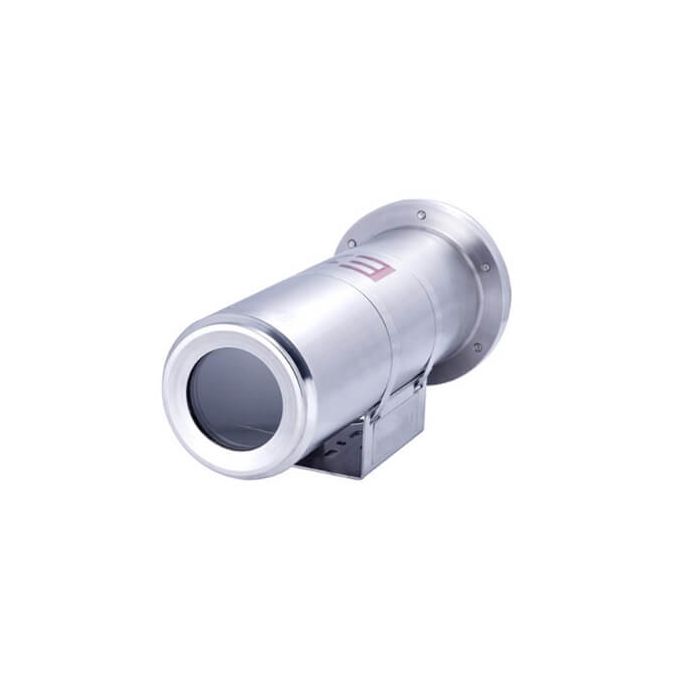

KX-EX600PWA218 2MP IP explosion proof 18x zoom bullet camera
SKU
KX-EX600PWA218
In stock
£622.80
£519.00
Overview
KX-EX600PWA218 2MP IP explosion proof 18x zoom bullet camera ATEX Ex-proof camera for use in hazardous environments in industrial factories from 3G Mobile CCTV
KX-EX600PWA218 2MP IP explosion proof 18x zoom bullet camera
● Adopt SONY1/3″CMOS Senor CCD ,resolution up to 1920 x 1080 pixel .
● Adopt TI-DSP CPU . High work efficiency
● Adopt 2.8-12mm manual focusing lens , easy to monitor remote targets
● Support ICR Day/NightAuto-switch , Color- BW , 24 hours monitoring
● High quality IR lamp , long service life , irradiation distance up to100 meters.
● Support digital wide dynamic, support 3D-DNR funcation
● Support dual stream, support mobile phone monitoring
● Windows glass surface process by nano technology . Well light transmittance. no halation effect .non-stick oil/dusty .
● Low power consumption, the fuselage internal air convection heatdissipation design, can work continuously for a long time
● Usual : AC220V/DC12V , other Power mode can be customized .
● Made of 304 stainless steel material. apply to strong corrosive environment
● Well design for Explosion-proof, anti-corrosion, waterproof , suitablefor indoor and outdoor environment
Specifications:
| Product | Ex-Level | ATEX II 2G Ex d IIC T6 Gb II 2D Ex tb IIIC IP68 T80℃ Db |
| Ingress Protection level | IP66 | |
| Camera | imaging sensor | SONY1/3″CMOS |
| DSP | TI-DSP | |
| minimal illumination | Color 0.1Lux@F1.2, BW0.01 Lux@F1.2; | |
| Day/Night | IR-CUT auto-switch | |
| DNR | 3D | |
| focal distance | 2.8-12mm（Manual focusing ） | |
| Aperture control | Auto | |
| Automatic aperture | DC-drive | |
| motion detecting | support | |
| Compression standard | Video compression standard | H.264/MJPEG |
| H.264 encoding type | BaseLine Profile / Main Profile | |
| Video compression standard | 32 Kbps~8Mbps | |
| Image | Maximum resolution | 1920×1080 |
| Frame rate | 2 megapixel and following 25 frame(full-time), support 1~25 fps is adjustable; | |
| Video output | Main Stream:1920×1080,1600×1200,1280×1024,1280×960,1024×768,1280×720;Sub Stream: 640×360,480×270,352×288,320×240,352×192,320×192,288×192,256×192; | |
| Image setting | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser | |
| Net | Interface protocols | ONVIF,PSIA,CGI,ISAPI,GB28181 |
| Support protocols | RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc. | |
| audio interface | optional | |
| Alarm interface | optional | |
| Other specification | Temperature range | -40℃～60℃ |
| Relative humidity | ≤ 5%（+25°C） | |
| Atmospheric pressure | 80kpa～106 kpa | |
| Thermostat System | optional | |
| Supply voltage | DC12V /AC220V（optional ） | |
| Suitable Environment | Apply to explosive gas and combustible dust environment | |
| Material | 304 stainless steel (316, 316L for optional) | |
| Inlet hole specifications | G3/4″ X 2 | |
| External dimensions | 380mm*144mm*232mm | |
| Installation method | PTZ,Wall Hanging dyadic , fixed bracket , Pillar base |
| Megapixels | 2MP |
|---|---|
| Lens | Normal lens |
| Manufacturer | 3G Mobile |
