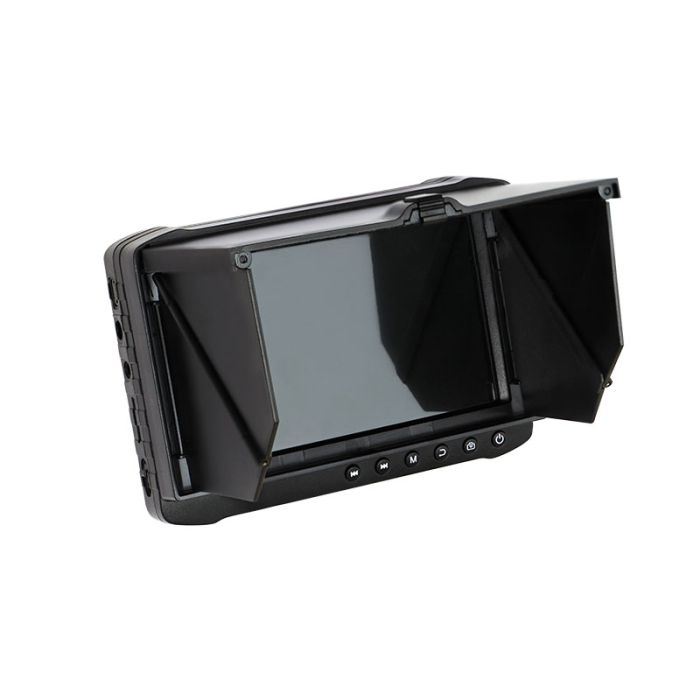

DS808 5 inch outdoor HD 1080P portable TVI DVR monitor

SKU
DS808
In stock
£138.00 £115.00
-
+
Overview

DS808 all in one 5 ”1080P AHD CCTV Test with HD record and display is the latest generation product with four mixed coaxial.

DS808 5 inch outdoor HD 1080P portable TVI DVR monitor

DS808 all in one 5 ”1080P AHD CCTV Test with HD record and display is the latest generation product with four mixed coaxial.

This 1080P AHD CCTV Tester is compatible with FHDTVI, CVI, AHD and CVBS 4 coaxial HD specifications, can access FHDTVI, CVI, AHD and CVBS analog signal. And this 1080P AHD CCTV Tester integrates multinomial IT high-tech.

The 1080P AHD CCTV Tester can achieve local HD surveillance video independently, can also be used in pet camera's inspection and HD monitoring operations.

Besides, DS-808 all in one 5 “ 1080P AHD CCTV tester can be widely used in security precautions and monitoring of the family, field, public security, military, medical, equipment and other areas.


Features:

  • Meet FTVI, AHD signal standard specifications, support TVI, CVI, AHD and CVBS analog 4 mixed signal access.
  • Supports Smart264 encoding. Lower bit rate with same resolution; Longer recording time with same hard disk.
  • Long-range coaxial cable transmission, support the maximum 800 meters TVI 1080P signal reliable transmission.
  • Supports HD 2MP signal real- time preview video.
  • 5 inch 800x480pix HD LCD screen.
  • Built-in 4500mAh large capacity battery.
  • Supports 128G TF card maximum.
  • Supports 10 languages.
  • Supports wide voltage 5-12V input.
  • Full number of channels support HD 5MP signal preview.
  • Support recording files packed by time.
  • Supports recording, taking photos and playback.
  • Supports 12V output power supply to power the camera







Specifications



Items Value
Display View angle  View angle 90 °
Brightness 350 cd/㎡
  Scree size 5 inch 800*480 pixel
Video Video input Full HD-TVI、AHD、CVI、CVBS  4 in 1 video balun ,Provides 12VDC output for camera
Response <0.1s
Power output 12V 300MA
Video LED control output LED On/Off
Video Record& Storage Pixels(16:9) Depends on cameras 1080P(1920*1080),480P(720*480)
Video compress H.264
Video storage Format AVI
Audio Audio Frequency Range 20HZ-20KHz  AAC
Audio Compression Format AAC
Photo Photo storage Format JPG 5.0M,3M,2M,1.3M,VGA for option
Storage External SD card TF card  2-128GB (Optional)
128GB Recording time about 18 hours
Operating System PC Windows & Mac OS
Port USB 2.0

Items

Value
  Language English, German, French, Italian, Portuguese, Spanish, Korean, Japanese,Chinese Simplified, Chinese Traditional; English, Russian
Power Working voltage DC :5-12V
Working Current 2A
Battery Built-in Li Batter 4500Mah
Working time ≥4hours
Dimension:(LxWx H) DVR main part 130mm x 86mm x 26mm
DVR main part 215 gram
