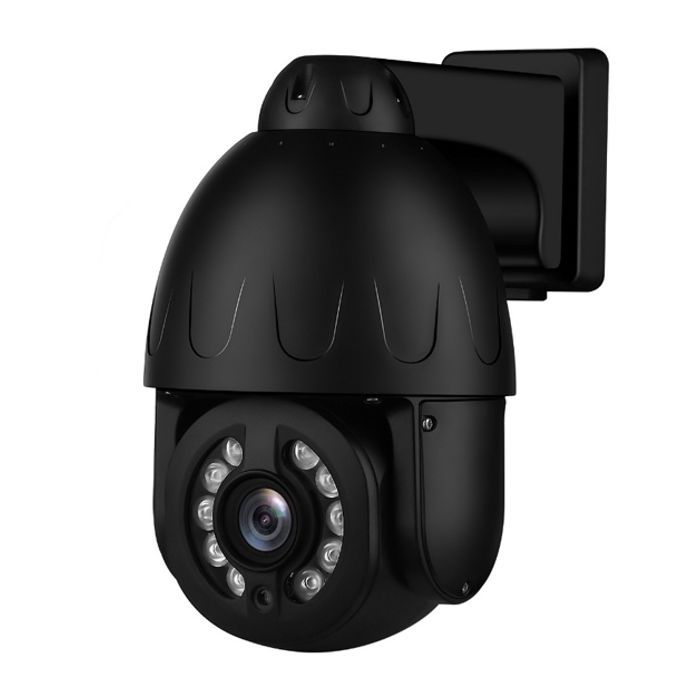

AS32-5MP-AH 802.11AH WIFI HALOW 4K 8.0 MP Zoom *20 + Digital Zoom *10 Taiwan Chipset MStar H.265+
£222.00
£185.00
In stock
SKU
AS32-5MP-AH
AS32-5MP-AH 802.11AH WIFI HALOW 4K 8.0 MP Zoom *20 + Digital Zoom *10 Taiwan Chipset MStar H.265+
AS32-5MP-AH 802.11AH WIFI HALOW 4K 8.0 MP Zoom *20 + Digital Zoom *10 Taiwan Chipset MStar H.265+
The AirLink 802.11ah Wi-Fi HaLow camera solution offers an effective approach to long-range, low-power video surveillance. It utilizes AirLink 802.11ah wireless cameras, available in both 2.0MP and 5.0MP models, along with AirLink 802.11ah access points (APs) equipped with either Yagi 20dBi or Omni 7dBi antennas. This system is optimized for reliable, low-bandwidth video transmission over extended distances.
Specifically designed for large outdoor areas, agriculture, smart cities, and Industrial IoT (IIoT) applications, this solution ensures stable, low-power connectivity over long distances.
Features:
-
HD 5MP resolution
-
Support 802.11ah Wi-Fi HaLow
-
4.7-94mm 20X optical zoom auto focus lens plus digital 10X digital zoom.
-
Support wired or POE network.
-
Built-in MIC and speakers, support two way audio.
-
Pan tilt rotation, horizontal:355°&vertical:90°.
-
2pcs Laser IR Leds+8pcs Smart IR Array LEDs and 8pcs White Leds, IR Distance 150m
-
Support 512G max, TF card for storage, support Cloud storage.
-
Support mobile detection alarm push to mobile phone, mobile detection recording.
-
Support mobile app remote view and playback video.
-
Free CMS 64 Channel (Central Management Software)
-
Chipset MStar
-
Support RTMP protocol
-
Support four defense modes: Intrusion detection, Enter Area detection, Leave Area detection, and Area Invasion detection
-
Voice broadcasting capability for predefined alerts or notifications
Specification
Model No. ASP32-5MP-AH
Image sensor SSC30KD + 1/2.8” Sony STARVIS IMX335 5.0M Pixels Progressive Scan CMOS
Signal System PAL/NTSC
Focal length 4.7-94 mm 20X optical zoom autofocus lens
IR LEDS 2pcs Laser IR Leds+8pcs Smart IR Array LEDs and 8pcs White LEDs,
IR Distance 150m
Aperture Range F1.5~F1.9
Rotation Speed Horizontal Rotation Speed 20°～40°/s, Vertical rotation speed 10°～20°/s；
Rotation Angle Horizontal: 0~355°, Vertical: 0~90°
Angle of View 55.3° ~ 5.8°
Min working distance 100-1500mm(Wide-Tele)
Zoom speed Approx 3s(Optical Wide-Tele)
Image Resolution
Main stream: 2592*1944 @25fps, 2592*1520 /2304*1296 /2048*1536/1080P/960P@30fps
Sub stream: 720*480D1/VGA/640*360/CIF@30fps
Min. Illumination Color： 0.001Lux@(F1.6，AGC ON) B/W：0.0001Lux@(F1.6，AGC ON)
Wide dynamic range Digital WDR，≥120dB
S / N ratio ≥50dB（AGC OFF）
AGC Auto / Manual
White balance Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Digital noise reduction DNR,3DNR
Exposure mode Auto/Manual/shutter mode（shutter range variable）
Shutter speed 1/2 - 1/10,000s
Day & Night Day / Night / External control（IR Cut Filter）
Number of preset 254
POE Standard 802.3af (optional)
PTZ function 8 Patrol、8 Pattern、Pan scan
3D Positioning Click centering, Zoom by mouse dragging
Streams Dual streams
Bitrate
CBR/VBR, bitrate： 32Kbps~10Mbps variable
Video Compression H.265+/H.265/H.264 Main Profile
Audio Compression G711
Audio Input/Output Built-in MIC and speakers support two-way audio
OSD Support zoom、camera name、time display， OSD position can be adjusted
P2P Support
Motion detect Support
Alarm linkage Support mobile phone message push
Send pictures to the mailbox
Upload pictures and videos to the FTP server,
Alarm records pictures and videos to Micro SD card,
Alarm record pictures and videos to cloud storage
Alarm trigger buzzer alarm, can customizable sound
Privacy Zone Masking 4 privacy masks programmable
Protocol TCP/IP， HTTP， NTP， IGMP， DHCP ， UDP ，SMTP ， RTP ，RTSP ，ARP ，DDNS ，DNS
Network 802.11AH WiFi HaLo
Onvif Protocol Support ONVIF 2.4
Mini SD Card Up to 512G(Optional)
Recording Mode Alarm record, timing record,
Video Playback Support APP, IE browser, PC client play and download the video
Power Supply 12V 2A DC
Maximum power 12W
Power Conversion 88%
Working Temperature -20°C ~60°C, Humidity≤90%RH(Unsupport-condensing)
Waterproof level IP66
Product Size 256mm×136mm×230mm(L×W×H)
Product weight 1.4 kg
Package Size 285mmx175mmx285mm(L×W×H)
Package weight 2.0 kg
| Megapixels | 5MP |
|---|---|
| Lens | Normal lens |
| Camera size | 5" dome |
| Manufacturer | Airlink |
