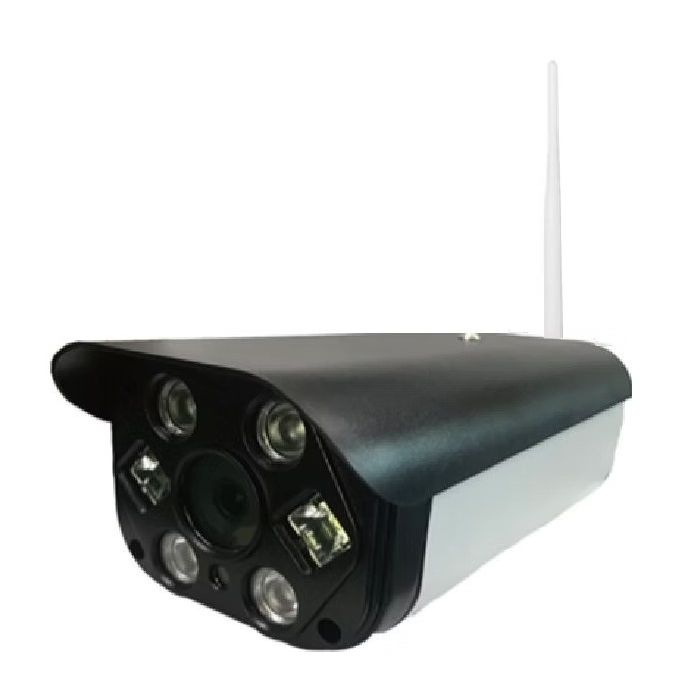

AS204 802.11AH WIFI HALOW 5.0MP Bullet Camera Taiwan Chipset MStar H.265+ AI Human Recognition & Detection Option Zoom*4

£144.00 £120.00

In stock

SKU

AS204

AS204 802.11AH WIFI HALOW 5.0MP Bullet Camera Taiwan Chipset MStar H.265+ AI Human Recognition & Detection Option Zoom*4

Details

AS204 802.11AH WIFI HALOW 5.0MP Bullet Camera Taiwan Chipset MStar H.265+ AI Human Recognition & Detection Option Zoom*4

The AirLink 802.11ah Wi-Fi HaLow camera solution offers an effective approach to long-range, low-power video surveillance. It utilizes AirLink 802.11ah wireless cameras, available in both 2.0MP and 5.0MP models, along with AirLink 802.11ah access points (APs) equipped with either Yagi 20dBi or Omni 7dBi antennas. This system is optimized for reliable, low-bandwidth video transmission over extended distances.

Specifically designed for large outdoor areas, agriculture, smart cities, and Industrial IoT (IIoT) applications, this solution ensures stable, low-power connectivity over long distances.

Main feature:

Professional design for HD network camera, small, beautiful, and delicate.

Material: aluminum alloy, innovative patented heat dissipation structure, makes HD camera work well under high temperature.

5.0 megapixel, IMX335 1/2.8″illumination CMOS
Advanced digital signal processing technology, high brightness imported SMT IR source, show the best HD video effects in both day and night environments.
Support 512G max, TF card for storage, support Cloud storage.
5.0 Megapixel HD CS lens+ IR-CUT auto switch in day and night.
6PCS IR LED, effective night vision distance is 100m, excellent performance in dark environments.
Support 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high-resolution image.
Support RTMP (Real-Time Messaging Protocol) to blend audio, video, and text together. It is also possible to have many variations of media channels. For example, it is possible to stream both MP3 and AAC audio streams with RTMP.
Built-in two-way audio ( Mic + Speaker)
Support AI Human Recognition & Detection Automatic Human Tracking
ONVIF protocol, provide the SDK.

Technical parameters:

Model: AS204 WIFI HALOW 900MHZ

Camera

Imaging sensor: 5.0MP , H.265+, Mstar SSC337DE +Sony335,1/2.8" CMOS, Starlight

Scanning mode: Progressive scanning

Illumination: Color 0.001Lux@F1.2,black/white 0.0001Lux@F1.2

Lens: 5 megapixel 2.8-12mm auto focus lens

Day and night switch: IR-CUT dual optical filters auto switch in day and night

DNR: 3D-DNR

IR source: 6pcs IR Led

Effective night vision distance: 100meters (measured value without light condition)

4G YES

P2P YES

Waterproof YES

WDR 128db

S/N Ratio 50db

TF card slot YES

Privacy mask 4

shutter speed 1/(10-10000)s

Standard compression

Image compression: H.264

Video compression: H.265+/H.265/H.264,support dual stream,AVI;32Kbps~30Mpbs

variable;support CBR/VBR


Max image size: 2592X1944

Frame rate: Main stream:5MP 2592X1944,2560x1440, 2304*1296@25fps ,2.0MP 1920X1080@30fps

Function

Interface protocol: HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF2.6/, Hikvision private protocol

Intelligent alarm: Motion detection, shadow alarm, network cable break, IP address conflict, AI Human Recognition & Detection Automatic Human Tracking

Lightning Protection Power, network, POE comprehensive lightning protection, in line with national standards GB/T17626.5, the international standard IEC61000-4-5.

Features Support WEB configure, support for OSD, support video transmission, support mobile surveillance, support for mobile detection alarm center after the screen pop-up reminders and linkage; supports JPEG capture; provide perfect the SDK development package

Basic parameter

Power input: DC 12V±10%

Power consumption: 1W (IR off) / 9.5W (IR on) 1.1W / 9.6W (IR on)

Work environment: -40℃ ~ 85℃, humidity is less than 95% (no condensation)

More Information

More Information
Megapixels	5MP
Lens	Normal lens
Manufacturer	Airlink
