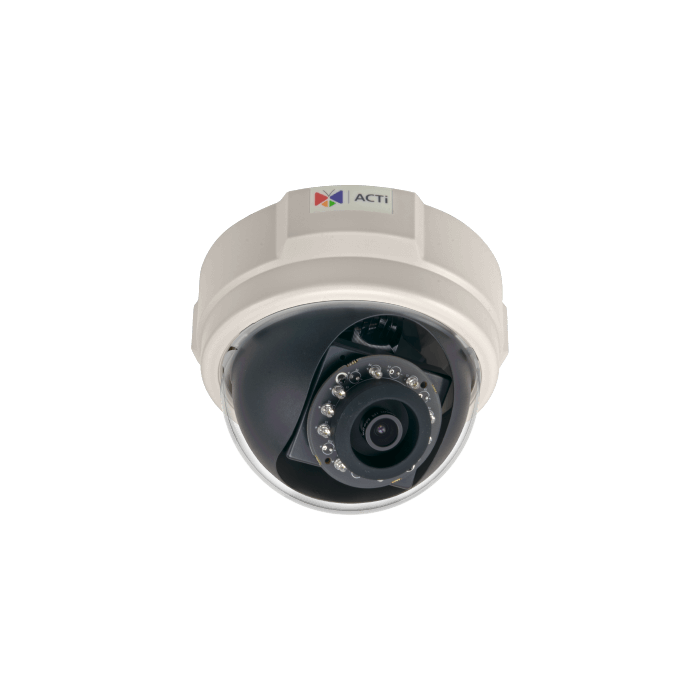

ACTi E57 1.3MP Indoor Dome with D/N, Adaptive IR, Basic WDR, SLLS, Fixed lens PoE IP dome camera
SKU
E57
In stock
£234.00
£195.00
Overview
ACTi E57 1.3MP Indoor Dome with D/N, Adaptive IR, Basic WDR, SLLS, Fixed lens PoE IP dome camera
Specifications:
Model |
E57 |
Product Type |
Dome |
Maximum Resolution |
1.3MP |
Application Environment |
Indoor |
Image Sensor |
Progressive Scan CMOS |
Day / Night |
Yes |
Low Light Sensitivity |
Superior |
Minimum Illumination |
Color: 0.1 lux, B/W: 0 lux (IR LED on) at F1.85 |
Mechanical IR Cut Filter |
Yes |
IR LED |
Yes, Adaptive IR (IR Exposure Compensation) |
IR Working Distance |
30m |
Lens |
Fixed focal, f3.6mm / F1.85, Fixed iris, Fixed focus |
Viewing Angle Adjustment |
Pan: 0°-330°, Tilt: 20°-90° |
Lens Mount |
Board mount |
Horizontal Viewing Angle |
77.9° |
Compression |
H.264 (Baseline/ Main/ High profile), MJPEG |
Maximum Frame Rate vs. Resolution |
30 fps at 1280 x 960 60 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 640 x 480 15 fps at 320 x 240 |
Horizontal Resolution (TV lines) |
950 TVL |
Multi-Streaming |
Dual streams |
Video Motion Detection |
3 regions |
Wide Dynamic Range |
Basic WDR (88 dB) |
Digital Noise Reduction |
DNR |
S/N Ratio |
52 dB |
Audio |
No |
Network Protocol & Service |
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
Network Connector |
RJ-45 |
Digital Input/Output |
No |
Local Storage |
No |
Power Source |
PoE Class 2 |
Environmental Casing |
No |
Bundled Accessories |
No |
Mount Type |
Surface, Pendant, Wall, Corner, Pole, Flush, Gang Box |
Software Based Analytics (require PC based Smart Search Tool, IVS Server or ALPR Server) |
Face Detection, Motion Detection, Tamper, People Counting, Line crossing, Enter area, Exit area, Appear in area, Missing object, Unattended object, Crowd detection, Forbidden direction, Vehicle Counting, Heat Map, License Plate Recognition, Speed Detection |
GPS Position |
Manual setting |
Client PC Operating System |
Windows 8, Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP |
PC Web Browser |
IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime |
ONVIF Compliant |
Yes (Profile S) |
Starting Temperature |
-10°C ~ 50°C (14°F ~ 122°F) |
Operating Temperature |
-10°C ~ 50°C (14°F ~ 122°F) |
Approvals |
CE, FCC, UL (for optional PoE injector) |
Warranty |
3 Years |
| Lens | Normal lens |
|---|---|
| Manufacturer | ACTi |
