In stock
£84.00
£70.00
Overview

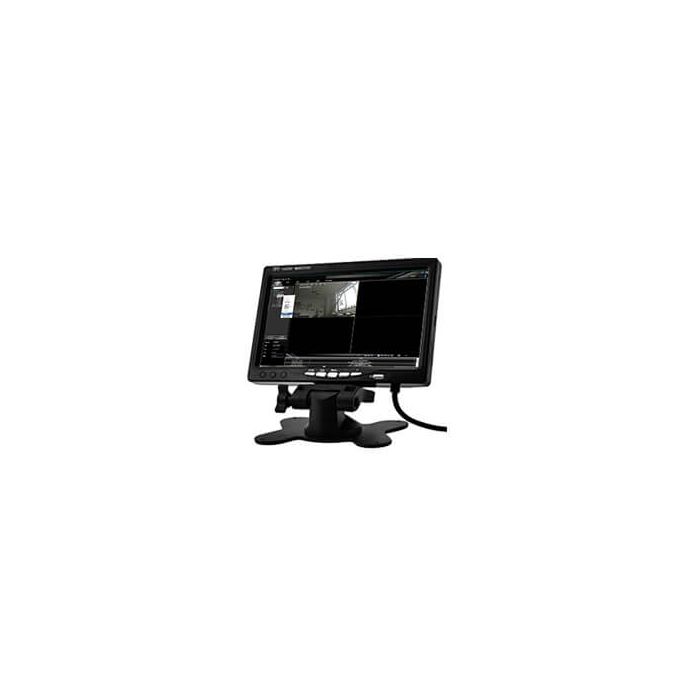

3S Vision DP701 7 inch LCD screen for vehicle from 3G Mobile CCTV
3S Vision DP701 7 inch LCD screen for vehicle
- Resolution 1024x600
- Image can be adjusted to horizontal, vertical, mirror and general view.
- Support manual night mode.
- Support multiple video standard PAL / NTSC / AUTO.
- Image input is 4 PIN aviation.
Specifications:
| Screen size | 7 inch （16 : 9） |
| Resolution | 1024(RGB)*600(pixel) |
| Backlight | LED |
| Brightness | 300cd/m2 |
| Valid area | 154.08（W）×85.92（H）mm |
| Perspective | 90/90/90/90(L/R/U/D) IPS Full view |
| Image format | PAL/NTSC/AUTO |
| Operation method | Full function remote controller / keys |
| I / O wire |
1.Power Plug 2. AV1 4pin female aviation cable 3.AV2 4pin Male aviation cable |
| Operating Voltage | DC8V-35V |
| Power consumption | 5W |
| Operating temperature | -20°C～+70°C RH95%Max |
| Size (bare metal) |
174*114*32(mm)(Length / width / height) 194*134*25.5(mm)(Length / width / height) (Wall mount) |
| Lens | Normal lens |
|---|---|
| Manufacturer | 3S Vision |
