Yifan R100-L1 4G CAT1 dual sim I/O port router with Din rail

SKU
R100-L1
In stock
US$248.04 US$206.70
-
+
Overview

Yifan R100-L1 is a 4G CAT1 router that comes with dual SIM support and an I/O port. It is designed to be mounted on a DIN rail.

Yifan R100-L1 4G CAT1 dual sim I/O port router with Din rail

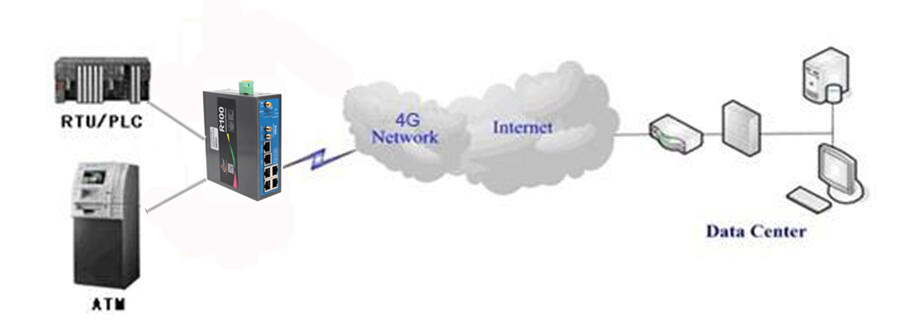

R100-L1 is a 4G LTE Cat1 intelligent cellular router designed for industrial applications requiring faultless connectivity. It provides a secure, reliable, real-time, remote connectivity for SCADA, distribution management systems, metering, etc. Software-defined, multi-carrier networking, dual SIM models, 802.11n, and global 2.5G/3G/HSPA+/LTE options make it easy to get connected.
With DIN-rail mounting, a wide operating temperature range, and IP30 metal housing, the R100 is a convenient yet reliable solution for any industrial wireless applications.



Design for Industrial Application
High-performance industrial-grade CPU

High-performance industrial-grade wireless communication module
Support low-consumption mode, scheduled power-on/power-off mode (Optional)
Metal casing, IP30 protection level, suitable for most industrial control applications.
Wide range power input (DC 5~36V)

Stability and Reliability
SIM/UIM card slot with built-in 15KV ESD

Ethernet interface with built-in 15KV ESD
RS232/RS485 with built-in 15KV ESD
Multiple protection mechanisms to ensure system stability, always keeping online
Auto recovery mechanism, including online detect and auto redial
Hardware and software WDT Watchdog design

Standard and Convenience
Standard RS232 (or RS485/RS422), ethernet, I/O and WIFI for connecting diverse field assets.

Provide standard wired WAN port (support standard PPPOE protocol)
Intelligent data terminal, automatically enters transmission status after power-on
Powerful central management software for easy device management (optional)
Easy to use and flexible, has multiple working modes
Convenient system configuration and maintenance interface (including local and remote WEB or CLI access)
DIN-Rail mounting, wall mounting or desktop

High-performance
Support 3G/4G and wired WAN dual-link backup(Optional).

Multiple WAN connection methods, include Static IP/DHCP/PPPOE/DHCP-4G
Support Load Balancer and Load Shunt (Only for dual sim dual module version)
Support APN/VPDN
Support NTP, RTC embedded.
Support multiple DDNS provider service
Support multiple online trigger ways, including SMS, ring and data. Support link disconnection when timeout
Support remote management, SYSLOG, SNMP, TELNET, SSHD, HTTPS, etc.
Support upgrade software from the local and remote maintenance.
Support SPI firewall, access control, URL filtering, etc.
WIFI 802.11b/g/n. Support AP, client, Adhoc, Repeater, Repeater Bridge mode.
VPN Tunnel: PPTP/L2TP/OPENVPN/IPSEC/GRE
Support TCP/IP, UDP, FTP (Optional), HTTP and other network protocols
Support DHCP server and DHCP client, NAT, DMZ, QOS.
Schedule Reboot, Schedule Online and Offline, etc.
Support GPS function (Optional)

Cellular Specification

Standard and Band

LTE FDD: B1/B3/B5/B7/B8/B20/B28

B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66 (Optional),

B2/B4/B5/B12/B13/B17/B66/B71 (Optional)

LTE TDD: B38/B40/B41

HSPA+/HSUPA/HSDPA/WCDMA/UMTS 2100/1900/900/850MHz

EV-DO: BC0

CDMA 1x: BC0

EDGE/GPRS/GSM 850/900/1800/1900MHz

Bandwidth

LTE CAT4: 150Mbps(DL), 50Mbps (UL)

LTE CAT6: 300Mbps(DL), 50Mbps (UL)

DC-HSPA+: 42Mbps(DL), 5.76 Mbps(UL)

HSPA+:21 Mbps(DL), 5.76 Mbps(UL)

HSDPA:7.2 Mbps(DL), HSUPA:5.76 Mbps(UL)

UMTS:384Kbps

Transmit Power

< 23dBm

Sensitivity

< -93.3dBm



WIFI SpecificationHarware SystemInterface

Standard and Band

IEEE802.11b/g/n

Bandwidth

IEEE802.11b/g: 54Mbps (Maximum)
IEEE802.11n: 144Mbps (Maximum)

Security

Support WEP, WPA, WPA2 encrypt methods, optional WPS function

Transmit Power

15 ± 2dBm

Sensitivity

< -72dBm @ 54Mbps

CPU  Industrial-grade 32-bit communication processor
Flash

16MB(Extendable to 64MB)

DDR3  128MB
WAN Interface

1 x 10/100M RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD

LAN Interface

4 x 10/100M RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD

Serial

1 x RS232/RS485 serial interface with built-in 15KV ESD
Data bits:5, 6, 7, 8 bits
Stop bits:1, 1.5 (optional), 2 bits
Error detection: none, even parity, odd parity, SPACE (optional) and MARK (optional)
Serial Port Rate: 2400~115200bits/s

LED Indicators

"PWR", "SYS", "WIFI", "SIM", "Online", "Signal Strength"

I/O Ports

6-pin 3.5mm wiring terminal,

2 inputs, 1 output, 1 relay; Controlled by Modbus protocol

Input high level: 5 to 30 VDC

Input low level: 0 to 3 VDC

Load current: 50mA @ 30VDC
Relay load 1A 250V AC/ 30V DC

Antenna Interface

Cellular: 2 * Standard SMA female antenna interface, characteristic impedance: 50 Ω
WIFI: Standard SMA male antenna interface, characteristic impedance: 50 Ω

Power Interface

Terminal power socket

SIM/UIM Slot

Standard drawer type user card interface, support 1.8V/3V SIM/UIM card, built-in 15KV ESD,
support dual-SIM card (optional)

Physical Properties

Casing  Metal casing, IP30 protection level, suitable for most industrial control applications.
Dimensions  134.8 x 115.7 x 45 mm (excluding antennas and mountings)
Weight  520g

Power

Input Voltage  DC 12V/1.5A
Accepted Range  DC 5~36V
