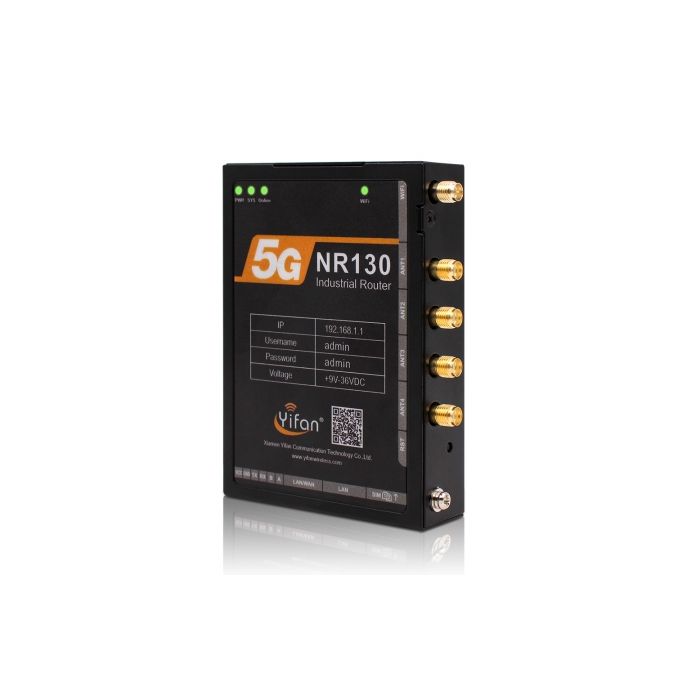

Yifan NR130 5G NR Industrial Router 5G RS232 RS485 Modem Dual SIM Card Slot Router
SKU
NR130
In stock
£478.80
£399.00
Overview
Yifan NR130 5G NR Industrial Router 5G RS232 RS485 Modem Dual SIM Card Slot Router
Yifan NR130 5G NR Industrial Router 5G RS232 RS485 Modem Dual SIM Card Slot Router
NR130 is wireless communication router for the Internet of Things (IoT), it uses a high-performance industrial level 32-bit communication processor and wireless module, and provides 1xRS232,1xRS485,1xLAN and 1xWAN/LAN port to achieve transparent data transmission and routing function. The product has been widely used in the M2M industry of the IoT industrial chain, such as smart grid, intelligent transportation, smart manufacturing, smart home, and other fields.
Industrial-grade Design
High-performance industrial-grade CPU
High-performance industrial-grade wireless communication module
Support low-consumption mode, scheduled power-on/power-off mode (Optional)
Metal casing, IP30 protection level, suitable for most industrial control applications.
Wide range power input (DC 9~36V)
Stability & Reliability
Stability & Reliability
SIM/UIM card slot with built-in 15KV ESD
Ethernet interface with built-in 15KV ESD
RS232/RS485 with built-in 15KV ESD
Multiple protection mechanism to ensure system stability, always keeping online
Anti-dropping mechanism to ensure that the data terminal is always online
WDT Watchdog design to ensure system stability
Standard & Convenience
Standard RS232, RS485, and Ethernet ports
Provide standard wired WAN port (support standard PPPOE protocol)
Intelligent data terminal, automatically enter transmission status after power-on
Powerful central management software for easy device management (optional)
Easy to use and flexible, has multiple working modes
Convenient system configuration and maintenance interface (including local and
remote WEB or CLI access)
DIN-Rail mounting, wall mounting or desktop
High Performance
High Performance
1.Support 3G/4G/5G and wired WAN dual link backup（Optional）.
2.Multiple WAN connection methods, include static IP, DHCP, PPPOE, 3G/UMTS/4G/LTE,
3.DHCP-4G/5G
4.Support APN/VPDN
5.Support NTP, RTC embedded.
6.Support multiple DDNS provider service
7.Support multiple online trigger ways,including SMS, ring and data. Support link
8.disconnection when timeout
9.Support remote management, SYSLOG, SNMP, TELNET, SSHD, HTTPS, etc.
10.Support upgrade software from the local and remote maintenance.
11.Support SPI firewall, access control, URL filtering, etc.
12.WIFI 802.11b/g/n/ac. Support AP/AP Client/Bridge mode (Optional).
13.VPN Tunnel: PPTP/L2TP/OPENVPN/IPSEC/GRE
14.Support TCP/IP, UDP, FTP (Optional), HTTP and other network protocols
15.Support DHCP server and DHCP client, NAT, DMZ, QOS.
Cellular Specification
WIFI Specification
Harware System
Interface
Power
Physical Properties
Others
|
Standard and Band
|
5G NR: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78
LTE: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43
WCDMA: B1/B5/B8
Optional: 5G NR: n2/n5/n12/n14/n25/n30/n41/n48/n66/n70/n71/n77
LTE: B2/B4/B5/B12/B13/B29/B30/B66/B71/B41/B46(LAA)/B48
Optional: 5GNR:n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/
n77/n78/n79
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
LTE TDD: B34/B38/B39/B40/B41/B42/B43/ B46(LAA)B48
|
| Bandwith |
5G NR：DL 3.4Gbps， UL 900Mbps
LTE Cat19：DL 1.6Gbps，UL 211Mbps
HSPA+：DL 42Mbps，UL 5.76Mbps
|
|
Transmit Power
|
< 23dBm
|
|
Sensitivity
|
< -97dBm
|
WIFI Specification
| Stand and band |
IEEE802.11b/g/n, 2.4G,
IEEE802.11ac, 5.8G
|
|
Bandwidth
|
IEEE802.11b/g：Maximum speed rate up to 54Mbps
IEEE802.11n：Maximum speed rate up to 150Mbps
IEEE802.11ac：Maximum speed rate up to 433Mbps
|
|
Security
|
Support WEP, WPA, WPA2 encrypt methods, optional WPS function
|
|
Transmit Power
|
26dBm (11b）, 21dBm (11ac/MCS7/HT40）, 20dBm (11ac/MCS9/HT80)
|
|
Sensitivity
|
< -72dBm @ 54Mbps
|
Harware System
| CPU |
Industrial-grade Quad-core CPU
|
|
Flash
|
32MB |
|
DDR3
|
512MB
|
Interface
| Wan/Lan |
1 x Gigabit RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD
|
| Lan |
1 x Gigabit RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD
|
| Serial |
1 x RS232/RS485 serial interface with built-in 15KV ESD
Data bits:5, 6, 7, 8 bits
Stop bits:1, 1.5 (optional), 2 bits
Error detection: none, even parity, odd parity, SPACE (optional) and MARK (optional)
Serial Port Rate: 2400~115200bits/s
|
|
LED Indicators
|
"WIFI", "Online", "PWR", "SYS"
|
|
Antenna Interface
|
Cellular: 4 * Standard SMA female antenna interface, characteristic impedance: 50 Ω
WIFI: 1 * Standard SMA male antenna interface, characteristic impedance: 50 Ω
|
|
SIM/UIM Slot
|
Standard drawer type user card interface, support 1.8V/3V SIM/UIM card, built-in 15KV ESD,
support dual Micro-SIM cards and eSIM
|
|
Power Interface
|
Terminal power socket
|
|
Reset Button
|
Can reset router’s configuration to default factory setting by this button
|
Power
|
Input Voltage
|
DC 12V/1.5A
|
|
Accepted Range
|
DC 9~36V
|
|
Consumption
|
<1.2A (12V)
|
Physical Properties
| Casing |
Metal casing, IP30 protection level, suitable for most industrial control applications.
|
|
Dimensions
|
106 x 76 x 23.5mm
(excluding antennas and mountings parts)
|
|
Weight
|
285g |
Others
|
Operating Temperature
|
-35~+75ºC（-31~+167℉）
|
|
Storage Temperature
|
-40~+85ºC（-40~+185℉）
|
|
Relative Humidity
|
95% (non-condensing)
|
| Manufacturer | Yifan |
|---|
