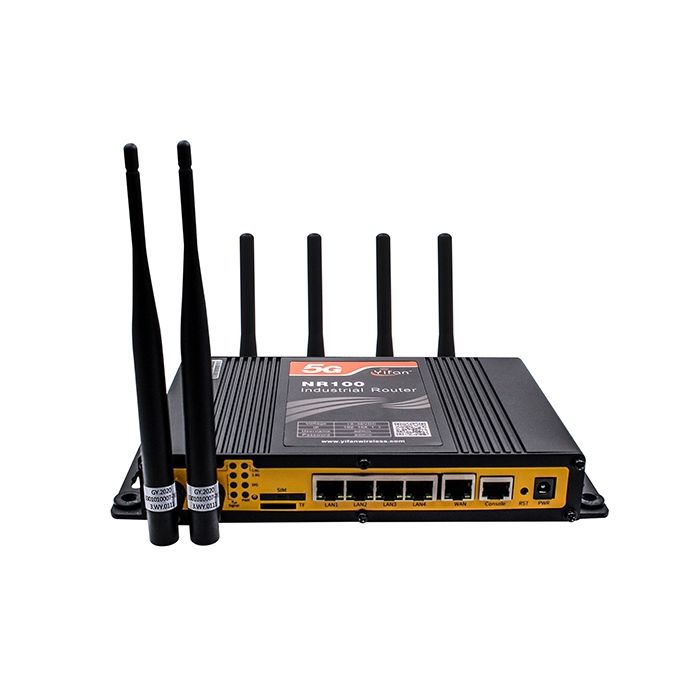

Yifan NR100 SA NSA 5G industrial WIFI router with sim card slot

Yifan NR100 SA NSA 5G industrial WIFI router with SIM card slot

NR100 V2 is a wireless communication router for the Internet of Things (IoT), it uses a high-performance industrial-level 32-bit communication processor and wireless module, embedded with the real-time operating system as the software platform, and uses 3G/4G/5G cellular network to provide users with wireless long-distance large data transmission function. With a wide operating temperature range and IP30 metal housing, NR100 is a reliable solution for industrial wireless applications.

Industrial-grade Design
High-performance industrial-grade CPU
High-performance industrial-grade wireless communication module
Support low-consumption mode, scheduled power-on/power-off mode (Optional)
Metal casing, IP30 protection level, suitable for most industrial control applications.
Wide range power input (DC 9~36V)

Stability & Reliability
SIM/UIM card slot with built-in 15KV ESD
Ethernet interface with built-in 15KV ESD
RS232/RS485 with built-in 15KV ESD
Multiple protection mechanisms to ensure system stability, always keeping online
Anti-dropping mechanism to ensure that the data terminal is always online
WDT Watchdog design to ensure system stability

Standard & Convenience
Standard RS232, RS485, and Ethernet ports
Provide standard wired WAN port (support standard PPPOE protocol)
Intelligent data terminal, automatically enters transmission status after power-on
Powerful central management software for easy device management (optional)
Easy to use and flexible, has multiple working modes
Convenient system configuration and maintenance interface (including local and
remote WEB or CLI access)
DIN-Rail mounting, wall mounting or desktop

High Performance
1.Support 3G/4G/5G and wired WAN dual link backup(Optional).

2.Multiple WAN connection methods, include static IP, DHCP, PPPOE, 3G/UMTS/4G/LTE,

3.DHCP-4G/5G

4.Support APN/VPDN

5.Support NTP, RTC embedded.

6.Support multiple DDNS provider service

7.Support multiple online trigger ways, including SMS, ring and data. Support link

8.disconnection when timeout

9.Support remote management, SYSLOG, SNMP, TELNET, SSHD, HTTPS, etc.

10.Support upgrade software from the local and remote maintenance.

11.Support SPI firewall, access control, URL filtering, etc.

12.WIFI 802.11b/g/n/ac. Support AP/AP Client/Bridge mode (Optional).

13.VPN Tunnel: PPTP/L2TP/OPENVPN/IPSEC/GRE

14.Support TCP/IP, UDP, FTP (Optional), HTTP and other network protocols

15.Support DHCP server and DHCP client, NAT, DMZ, QOS.



16.Schedule Reboot, Schedule Online and Offline, etc.



Cellular Specification

Standard and Band
5G NR: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78
LTE: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43
WCDMA: B1/B5/B8

Optional:
5G NR: n2/n5/n12/n14/n25/n30/n41/n48/n66/n70/n71/n77
LTE: B2/B4/B5/B12/B13/B29/B30/B66/B71/B41/B46(LAA)/B48

Optional:
5GNR:n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/
n77/n78/n79
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
LTE TDD: B34/B38/B39/B40/B41/B42/B43/ B46(LAA)B48
Bandwith
5G NR:DL 3.4Gbps, UL 900Mbps
LTE Cat19:DL 1.6Gbps,UL 211Mbps
HSPA+:DL 42Mbps,UL 5.76Mbps
Transmit Power < 23dBm
Sensitivity  < -97dBm



WIFI Specification

Stand and band
IEEE802.11b/g/n/ax, 2.4G,
IEEE802.11ac/ax, 5.8G
Bandwidth
2.4GHz 2x2MIMO 11ax, 0.573 Gbps
5GHz 2x2MIMO 11ax, 1.2 Gbps
20MHz,40MHz,80MHz
Security Support WEP, WPA, WPA2 encrypt methods, optional WPS function
Transmit Power 26dBm (11b), 21dBm (11ac/MCS7/HT40), 20dBm (11ac/MCS9/HT80)
Sensitivity  < -72dBm @ 54Mbps


Harware System

CPU
Industrial-grade 880MHz dual core CPU
Flash  128MB
DDR3  512MB


Interface

Wan/Lan 1 x Gigabit RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD
Lan 4 x Gigabit RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD
Serial
1 x RS232/RS485 serial interface with built-in 15KV ESD
Data bits:5, 6, 7, 8 bits
Stop bits:1, 1.5 (optional), 2 bits
Error detection: none, even parity, odd parity, SPACE (optional) and MARK (optional)
Serial Port Rate: 2400~115200bits/s
LED Indicators  "WIFI", "Online", "PWR", "SYS"
Antenna Interface
Cellular: 4 * Standard SMA female antenna interface, characteristic impedance: 50 Ω
WIFI: 2 * Standard SMA male antenna interface, characteristic impedance: 50 Ω
SIM/UIM Slot
Standard drawer type user card interface, support 1.8V/3V SIM/UIM card, built-in 15KV ESD,
support dual Micro-SIM cards and eSIM
Power Interface
2.5mm DC interface built-in power reverse protection
Reset Button Can reset router’s configuration to default factory setting by this button


Power

Input Voltage DC 12V/1.5A
Accepted Range  DC 9~36V
Consumption  <1.2A (12V)


Physical Properties

Casing Metal casing, IP30 protection level, suitable for most industrial control applications.
Dimensions
244x135.5x35.8 mm(excluding antennas and mountings parts)
Weight 980g


Others

Operating Temperature  -35~+75ºC(-31~+167℉)
Storage Temperature  -40~+85ºC(-40~+185℉)
Relative Humidity 95% (non-condensing)
