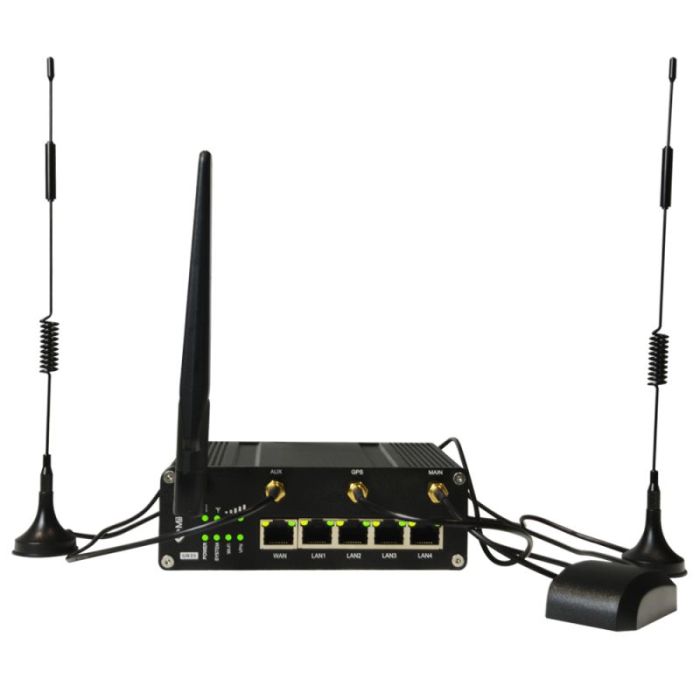

Milesight UR35-L04EU-G-P-W 4G Dual-SIM industrial router with WiFi, PoE PSE, GPS, RS232 and RS485
£310.80
£259.00
In stock
SKU
UR35-L04EU-G-P-W
Milesight UR35-L04EU-G-P-W 4G Dual-SIM industrial router with WiFi, PoE PSE, GPS, RS232 and RS485
The UR35 is a high-performance industrial 4G LTE cellular router featuring a 5-port Ethernet interface for mission-critical communications. With support for multiple network protocols and VPN tunnels, the UR35 offers secure and reliable solutions for various M2M and IoT deployments.
Milesight UR35-L04EU-G-P-W 4G Dual-SIM industrial router with WiFi, PoE PSE, GPS, RS232 and RS485
The UR35 is an industrial-grade 4G LTE cellular router with a 5-port Ethernet interface for mission-critical communications.
Featured with multiple network protocols and VPN tunnels, UR35 provides secure and reliable solutions for a range of M2M/IoT deployments.
-
Industrial Grade Design for Harsh Environment
-
Rugged But Exquisite Design
-
Embedded Python SDK for Secondary Development
-
Ultra-High Protection System
-
Rich Interfaces for Multiple Applications
-
Stable Cellular, Ethernet and Wi-Fi Transmission
-
Open VPN Tunnel and Various Interface
-
Remote Management on MilesightVPN and DeviceHub
UR35
|
Hardware System |
|
|---|---|
|
CPU |
ARM Cortex-A7,528 MHz |
|
Memory |
128 MB DDR3 RAM and 128MB Flash |
|
Extendable Storage |
1 × Micro SD |
|
Cellular Interface |
|
|
Antenna Connector |
2 × 50 Ω SMA Connectors (Center PIN: SMA Female) |
|
SIM Slots |
2（Mini SIM-2FF） |
|
Ethernet Interface |
|
|
Numbers |
5 × 10/100 Mbps |
|
Property |
1 × WAN + 4 × LAN |
|
Mode |
Full or half duplex (Auto-Sensing) |
|
PoE |
4 × 802.3 af/at PoE PSE on LAN Ports (Optional) |
|
Wi-Fi Interface (Optional) |
|
|
Antenna Connector |
1 × 50 Ω SMA Connector (Center PIN: RP-SMA Female) |
|
Standards |
IEEE 802.11 b/g/n,2.4GHz |
|
Tx Power |
802.11b: 16 dBm +/-1.5 dBm (11 Mbps) 802.11g: 14 dBm +/-1.5 dBm (54 Mbps) 802.11n: 13 dBm +/-1.5 dBm (65 Mbps, HT20/40 MCS7) |
|
Modes |
AP or Client mode |
|
Security |
WPA/WPA2 authentication, WEP/TKIP/AES encryption |
|
GPS (Optional) |
|
|
Antenna Connector |
1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
|
Protocol |
NMEA0183, PMTK |
|
Serial Interface |
|
|
Numbers |
1 × RS232 + 1 × RS485 (2 × RS485 Optional) |
|
Connector |
3.5mm Terminal Block |
|
Baud Rate |
300bps to 230400bps |
|
DI/DO |
|
|
Numbers |
1 × DI (dry contact) + 1 × DO (wet contact), Galvanic Isolation |
|
Connector |
3.5mm Terminal Block |
|
Maximum V/A |
0.3A@30VDC (DO) |
|
Others |
|
|
Reset Button |
1 × RESET |
|
LED Indicators |
1 × POWER, 1 × SYSTEM, 1 × SIM, 1 × Wi-Fi, 1 × VPN, 3 × Signal strength |
|
Built-in |
Watchdog, Timer |
|
Software |
|
|
Network Protocols |
IPV4/IPV6, PPP, PPPOE, SNMP v1/v2c/v3.,TCP, UDP, DHCP,RIPv1/v2,OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN,SSH,TR069, MQTT, MQTTS, etc. |
|
VPN |
DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE,WireGuard, MilesightVPN |
|
Security |
Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), IP Passthrough |
|
Management |
Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3, DeviceHub |
|
AAA |
Radius, Tacacs+, LDAP, Local Authentication |
|
Multilevel Authority |
Multiple Levels of User Authority |
|
Reliability |
VRRP, WAN Failover, Dual SIM Backup |
|
Serial Port |
Transparent(TCP Client/Server, UDP), Modbus Master/Slave, Modbus Gateway (Modbus RTU to Modbus TCP) |
|
Power Supply and Consumption |
|
|
Power Connector |
2-pin 5.08 mm Terminal Block |
|
Input Voltage |
9-48 VDC, with Surge-Protection and Reverse Polarity Protection (48V is needed for PoE output) |
|
Power Consumption |
Typical 3.9 W, Max 4.6 W (In Non-PoE mode) |
|
Physical Characteristics |
|
|
Ingress Protection |
IP30 |
|
Housing & Weight |
Metal, 485 g |
|
Dimension |
135 x 103 x 45 mm (5.31 x 4.06 x 1.77 in) |
|
Installation |
Desktop, Wall or DIN Rail Mounting |
|
Environmental |
|
|
Operating Temperature |
-40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Above 60°C |
|
Storage Temperature |
-40°C to +85°C (-40℉ to +185℉) |
|
Ethernet Isolation |
1.5 kV RMS |
|
Relative Humidity |
0% to 95% (non-condensing) at 25°C/77℉ |
|
Approvals |
|
|
Regulatory |
CE, FCC, RCM |
|
Environmental |
RoHS |
|
EMC |
EN 55032, EN 55035 |
|
EMS |
IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 2 IEC 61000-4-4 Level 3 IEC 61000-4-5 Level 3 IEC 61000-4-6 Level 3 IEC 61000-4-8 Level 4 IEC 61000-4-11 Level 3 |
|
Radio Frequency |
EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413, EN300 328 |
|
Safety |
EN62368-1 |
| Lens | Normal lens |
|---|---|
| Manufacturer | Milesight |
