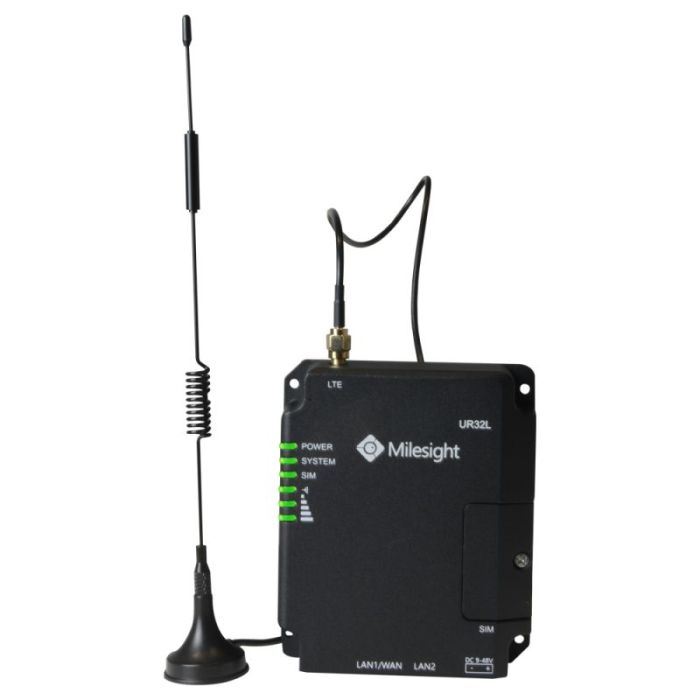

Milesight UR32L-L04EU-P 4G industrial router with PoE PSE (Lite series)
£166.80
£139.00
In stock
SKU
UR32L-L04EU-P
Milesight UR32L-L04EU-P 4G industrial router with PoE PSE (Lite series)
The Milesight UR32 is a cost-effective industrial cellular router with embedded intelligent software features that are designed for multifarious M2M/IoT applications. Global WCDMA and 4G LTE carrier supported make this drop-in connectivity a great help for operators in maximizing uptime.
Milesight UR32L-L04EU-P 4G industrial router with PoE PSE (Lite series)
The UR32 is a cost-effective industrial cellular router equipped with intelligent features designed for a variety of M2M (Machine-to-Machine) and IoT (Internet of Things) applications. It supports global WCDMA and 4G LTE carriers, providing seamless connectivity that helps operators maximize uptime.
With an embedded cellular modem and dual SIM functionality, the UR32 offers 3G/4G cellular network speeds of up to 150 Mbps for downloads and 50 Mbps for uploads. It also includes two fast Ethernet ports, ensuring users have uninterrupted internet access.
The UR32 is easy to deploy and allows for comprehensive remote device management, making it versatile for most IoT and M2M applications.
-
Industrial Grade Design
-
Rugged And Pocket-Sized Design
-
Global 4G LTE Network
-
Open VPN Tunnel and Various Protocols
-
Ultra-High Protection System
-
Stable Cellular and Ethernet Internet Access
-
Remote Management on MilesightVPN and DeviceHub
Industrial Grade Design
To fulfill the market demand, UR32L is built with NXP industrial grade processor, IP30 rated heavy cast aluminum enclosure, industrial components, and a wide operation range from -40°C to 70°C (-40℉ to +158℉) for even harsh environments. It also features a broad supply voltage range of 9V to 48V DC.
Global 4G LTE Network
Integrating embedded cellular modem and SIM function, the UR32L provides a 3G/4G cellular network with reliable download and uplink speed. It also has 2 Ethernet ports for uninterrupted internet access.
-
M150 Mbps Downlink & 50 Mbps Uplink
-
Global 4G/3G Frequency Bands Compatibility
Compact Design
With a compact design, UR32L is specially designed to bring cost-effective performance. The small and lightweight enclosure allows it to easily fit into small cabinets or machines when space is limited.
Ultra-Reliable Protection System
-
Quick Network Backup
Automated failover/failback backup among Ethernet and Cellular
-
Embedded Watchdog
Embedded with hardware watchdog to automatically recover from various failures.
-
Secured Mechanism
Centralized authentication and authorization of device access by supporting AAA (Radius, TACACS+, LDAP, local Authentication) and multiple levels of user authority.
VPN Tunnel And Various Protocols
Featuring with multiple network protocols and VPN tunnels, UR32L provides secure and reliable solutions for a range of M2M/IoT deployments.
-
Network Protocols Such as SNMP, TR069, MOTT, and VRRP
-
VPN tunnels Such as lPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN/WireGuard
MilesightVPN
UR32L supports connection and management with MilesightVPN
-
Easy Connection via Authentication Code
-
Connection Status Overview
-
Remote and Secure Access to Field Devices
-
Magnetic Version
DeviceHub
Milesight DeviceHub offers a high-efficiency and low-maintenance solution to easily deploy Milesight Industrial Cellular Routers across multiple locations, reducing complexity and increasing productivity.
-
Central Management
-
Device Status Monitoring
-
Remote & Bulk Configuration
UR32L
|
Hardware System |
|
|---|---|
|
CPU |
ARM Cortex-A7,528 MHz |
|
Memory |
128 MB DDR3 RAM and 128MB Flash |
|
Cellular Interface |
|
|
Antenna Connector |
1 × 50 Ω SMA Connectors (Center PIN: SMA Female) |
|
SIM Slots |
1（Mini SIM-2FF） |
|
Ethernet Interface |
|
|
Numbers |
2 × 10/100 Mbps |
|
Property |
1 × WAN + 1 × LAN or 2 × LAN |
|
Mode |
Full or half duplex (Auto-Sensing) |
|
PoE |
2 × 802.3 af/at PoE PSE on LAN Ports (Optional) |
|
Others |
|
|
Reset Button |
1 × RESET |
|
LED Indicators |
1 × POWER, 1 × SYSTEM, 1 × SIM, 3 × Signal strength |
|
Built-in |
Watchdog, Timer |
|
Software |
|
|
Network Protocols |
IPV4/IPV6, PPP, PPPOE, SNMP v1/v2c/v3.,TCP, UDP, DHCP,RIPv1/v2,OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN,SSH,TR069, MQTT, MQTTS, etc. |
|
VPN |
DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE,WireGuard, MilesightVPN |
|
Security |
Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), IP Passthrough |
|
Management |
Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3, DeviceHub |
|
AAA |
Radius, Tacacs+, LDAP, Local Authentication |
|
Multilevel Authority |
Multiple Levels of User Authority |
|
Reliability |
VRRP, WAN Failover |
|
Power Supply and Consumption |
|
|
Power Connector |
2-pin 5.08 mm Terminal Block |
|
Input Voltage |
9-48 VDC, with Surge-Protection and Reverse Polarity Protection (48V is needed for PoE output) |
|
Power Consumption |
Typical 1.8 W, Max 2.2 W (In Non-PoE mode) |
|
Physical Characteristics |
|
|
Ingress Protection |
IP30 |
|
Housing |
Metal |
|
Dimension |
108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in) |
|
Installation |
Desktop, Wall or DIN Rail Mounting |
|
Environmental |
|
|
Operating Temperature |
-40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Above 60°C |
|
Storage Temperature |
-40°C to +85°C (-40℉ to +185℉) |
|
Ethernet Isolation |
1.5 kV RMS |
|
Relative Humidity |
0% to 95% (non-condensing) at 25°C/77℉ |
|
Approvals |
|
|
Regulatory |
CE, FCC, RCM |
|
Environmental |
RoHS |
|
EMC |
EN 55032, EN 55035 |
|
EMS |
IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 2 IEC 61000-4-4 Level 2 IEC 61000-4-5 Level 2 IEC 61000-4-6 Level 3 IEC 61000-4-8 Level 1 IEC 61000-4-11 Level 3 |
|
Radio Frequency |
EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413 |
|
Safety |
EN62368-1 |
|
Installation |
Desktop, Wall or DIN Rail Mounting |
|
Environmental |
|
|
Operating Temperature |
-40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Above 60°C |
|
Storage Temperature |
-40°C to +85°C (-40℉ to +185℉) |
|
Ethernet Isolation |
1.5 kV RMS |
|
Relative Humidity |
0% to 95% (non-condensing) at 25°C/77℉ |
|
Approvals |
|
|
Regulatory |
CE, FCC, RCM, NBTC, SPDDI |
|
Carrier |
PTCRB, AT&T |
|
Environmental |
RoHS |
|
EMC |
EN 55032, EN 55035 |
|
EMS |
IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 2 IEC 61000-4-4 Level 2 IEC 61000-4-5 Level 2 IEC 61000-4-6 Level 3 IEC 61000-4-8 Level 1 IEC 61000-4-11 Level 3 |
|
Radio Frequency |
EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413, EN300 328 |
|
Safety |
EN62368-1 |
| Manufacturer | Milesight |
|---|
